Denon AVR-2106 Service Manual

75
AVR-2106/886

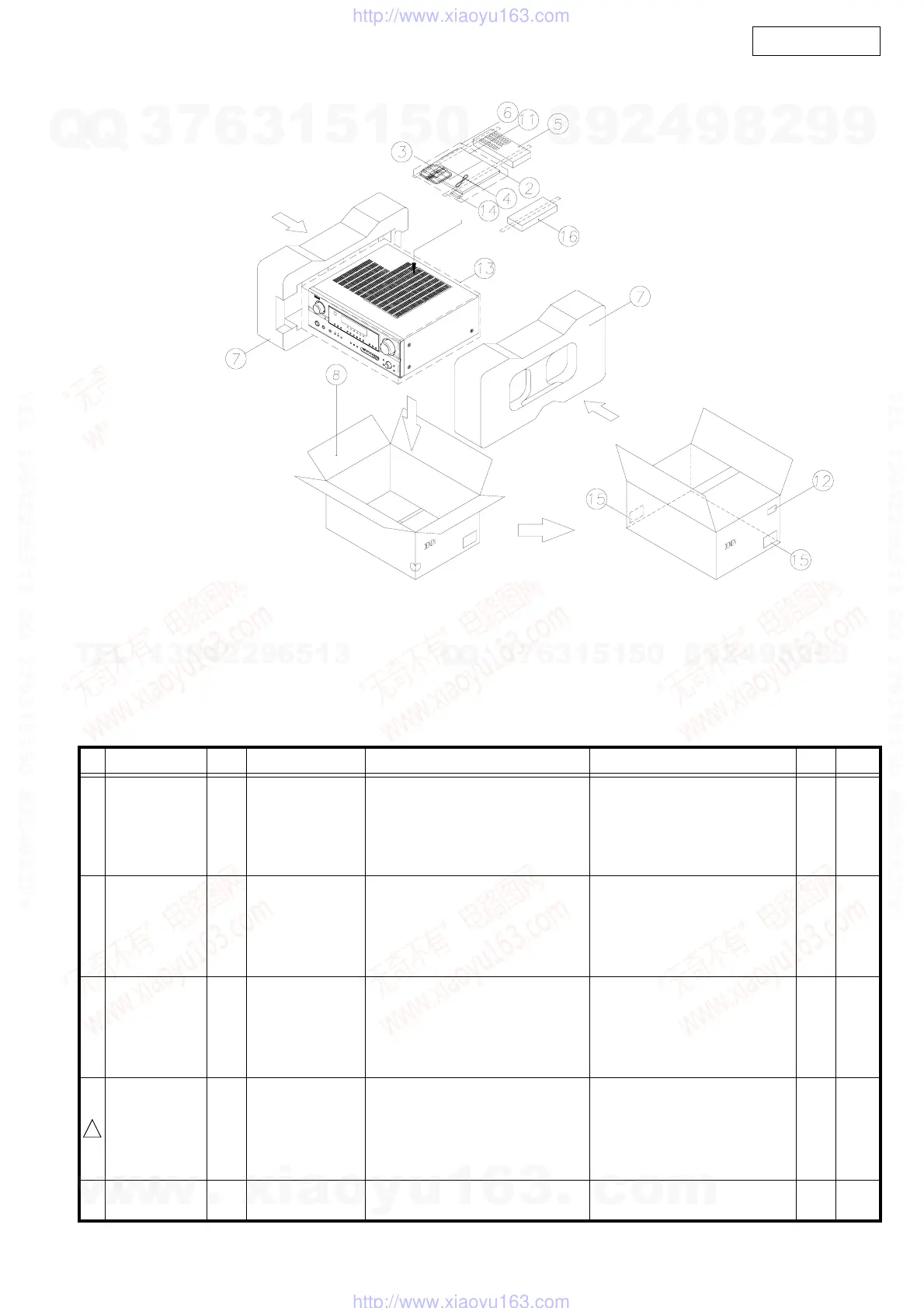

PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
＊"nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Note: The symbols in the column "Remarks" indicate the following destinations.
E3 : U.S.A. & Canada model (AVR-2106)
E3 : U.S.A. & Canada model (AVR-886)
Ref. No. nsp Part No. Part Name Remarks Q'ty New
2 00D 963 0254 007 INSTRUCTION MANUAL for AVR2106E3 1 *
2 00D 963 0254 104 INSTRUCTION MANUAL for AVR886E3 1 *
3 00D 231 0089 007 AM ANTENNA WIRE 1
4 00D 963 0158 006 FM ANTENNA WIRE 1
5 00D 399 0995 060 REMOTE CONTROL RC-1015 for AVR2106E3 1 *
5 00D 399 0995 044 REMOTE CONTROL RC-1004 for AVR886E3 1 *
6 nsp 00D 963 0045 106 POLY BAG 1
7 nsp 00D 963 0112 709 CUSHION SNOW ASS'Y (L/R) 1
8 nsp 00D 963 0254 201 BOX,GIFT for AVR2106E3 1 *
8 nsp 00D 963 0254 308 BOX,GIFT for AVR886E3 1 *
11 - S.S LIST 1
12 - UPC LABEL for AVR2106E3 1
12 - UPC LABEL for AVR886E3 1
13 nsp 00D 963 0241 405 PE,SHEET SET 1
14 - BATTERY,DRY 2
15 - CONTROL CARD 2
16 00D 321 0038 005 DM-S205 1 *
!
★ 17
00D 963 0256 403 AC CORD for AVR2106E3 1 *
★ 18
- SERIAL NO. LABEL 1
★ 19
- WARRANTY CARD, XM RADIO 1
★ 20
- WARRANTY CARD 1
★ 21
nsp - LICENSE LABEL (DOLBY/DTS) for AVR2106E3 1
