Denon AVR-2808 Service Manual

Name: Denon AVR-2808
Brand: Denon
Rating: 4 (1 reviews)

155 pages

To Next Page

To Previous Page

87654321

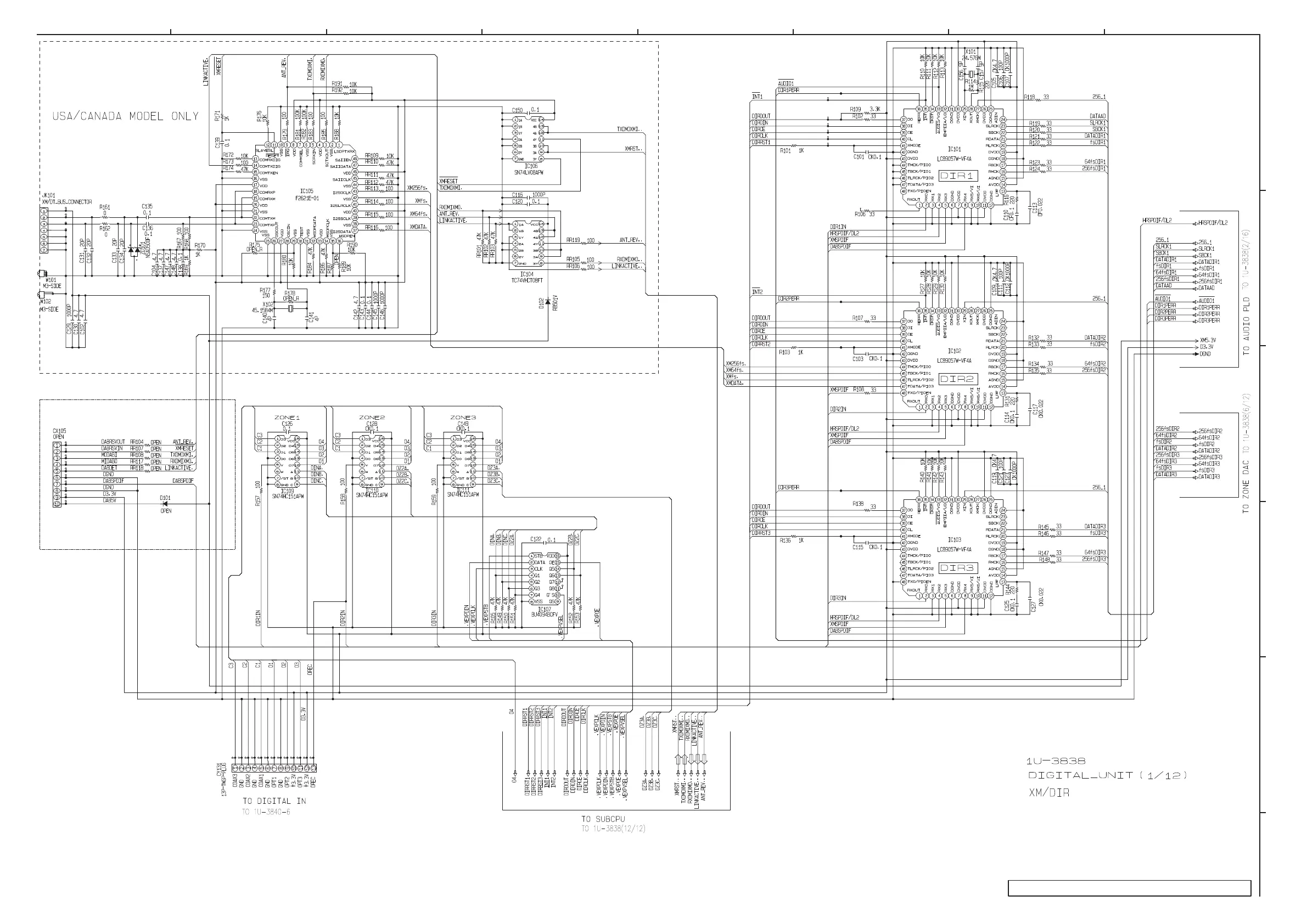

SCHEMATIC DIAGRAMS (1/31)

1U-3838-1 DIGITAL UNIT (1/12)

AVR-2808CI / AVR-988 / AVR-2808 / AVC-2808

AVR-2808 E2/E2A1
SAFETY PRECAUTIONS2
DIMENSION4
WIRE ARRANGEMENT6
CAUTION IN SERVICING7
DISASSEMBLY8
- 11. TRANS14
- 10. MAIN CPU UNIT ASSY14
- 9. POWER AMP UNIT ASSY14
- 8. MAIN CPU UNIT13
- 7. POWER REG. UNIT ASSY13
- 6. REMOTE/IPOD UNIT12
- 5. AM FM TUNER (AVR-2808CI/AVR-988/AVR-2808 model only)12
- 4. AUDIO UNIT ASSY12
- 3. DIGITAL UNIT ASSY11
- 2. BACK PANEL11
- 1. FRONT UNIT ASSY10
CHECK WITH TEST MODE15
ADJUSTMENT17
TROUBLE SHOOTING19
- 1. POWER19
- 2. Analog video20
- 3. HDMI/DVI47
BLOCK DIAGRAMS49
CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK51
LEVEL DIAGRAMS52
SEMICONDUCTORS59
PRINTED WIRING BOARDS83
- 1U-3838A DIGITAL P.W.B. UNIT83
- 1U-3839A A.AUDIO/VIDEO P.W.B. UNIT85
- 1U-3840 FRONT P.W.B. UNIT87
- 1U-3841A POWER REG. P.W.B. UNIT89
- 1U-3854A POWER AMP P.W.B. UNIT91
- 1U-3857A MAIN CPU P.W.B. UNIT93
NOTE FOR PARTS LIST95
PARTS LIST OF P.W.B. UNIT96
- 1U-3838A DIGITAL P.W.B. UNIT ASS'Y96
- 1U-3839A A.VIDEO/VIDEO P.W.B. UNIT ASS'Y102
- 1U-3840 FRONT P.W.B. UNIT ASS'Y106
- 1U-3841A POWER REG. P.W.B. UNIT ASS'Y109
- 1U-3854A POWER AMP P.W.B. UNIT ASS'Y112
- 1U-3857A MAIN CPU P.W.B. UNIT ASS'Y114
EXPLODED VIEWS117
PARTS LIST OF EXPLODED VIEW119
PACKING VIEW123
PARTS LIST OF PACKING & ACCESSORIES123
NOTE FOR SCHEMATIC DIAGRAM124
SCHEMATIC DIAGRAMS125
- 1U-3838A DIGITAL UNIT125
- 1U-3839A A.AUDIO/VIDEO UNIT137
- 1U-3840 FRONT UNIT141
- 1U-3841A POWER REG. UNIT147
- 1U-3854A POWER AMP UNIT150
- 1U-3857A MAIN CPU UNIT152
