10
ENGLISH
NOTES:
• The on-screen display signals are not output from the MONITOR OUT-2 output jack or the color difference
(component) video signal (MONITOR OUT) jacks.
• The on-screen display signals are output with priority to the S-VIDEO MONITOR OUT jack during playback
of a video component. For example, if the TV monitor is connected to both the AVC-A11SR’s S-Video and
video monitor output jacks and signals are input to the AVC-A11SR from a video source (VDP, etc.)
connected to both the S-Video and video input jacks, the on-screen display signals are output with priority
to the S-Video monitor output. If you wish to output the signals to the video monitor output jack, do not
connect a cord to the S-VIDEO MONITOR OUT jack. (For details, see page 16.)
• The AVC-A11SR’s on-screen display function is designed for use with high resolution monitor TVs, so it
may be difficult to read small characters on TVs with small screens or low resolutions.
• The setup menu is not displayed when headphones are being used.

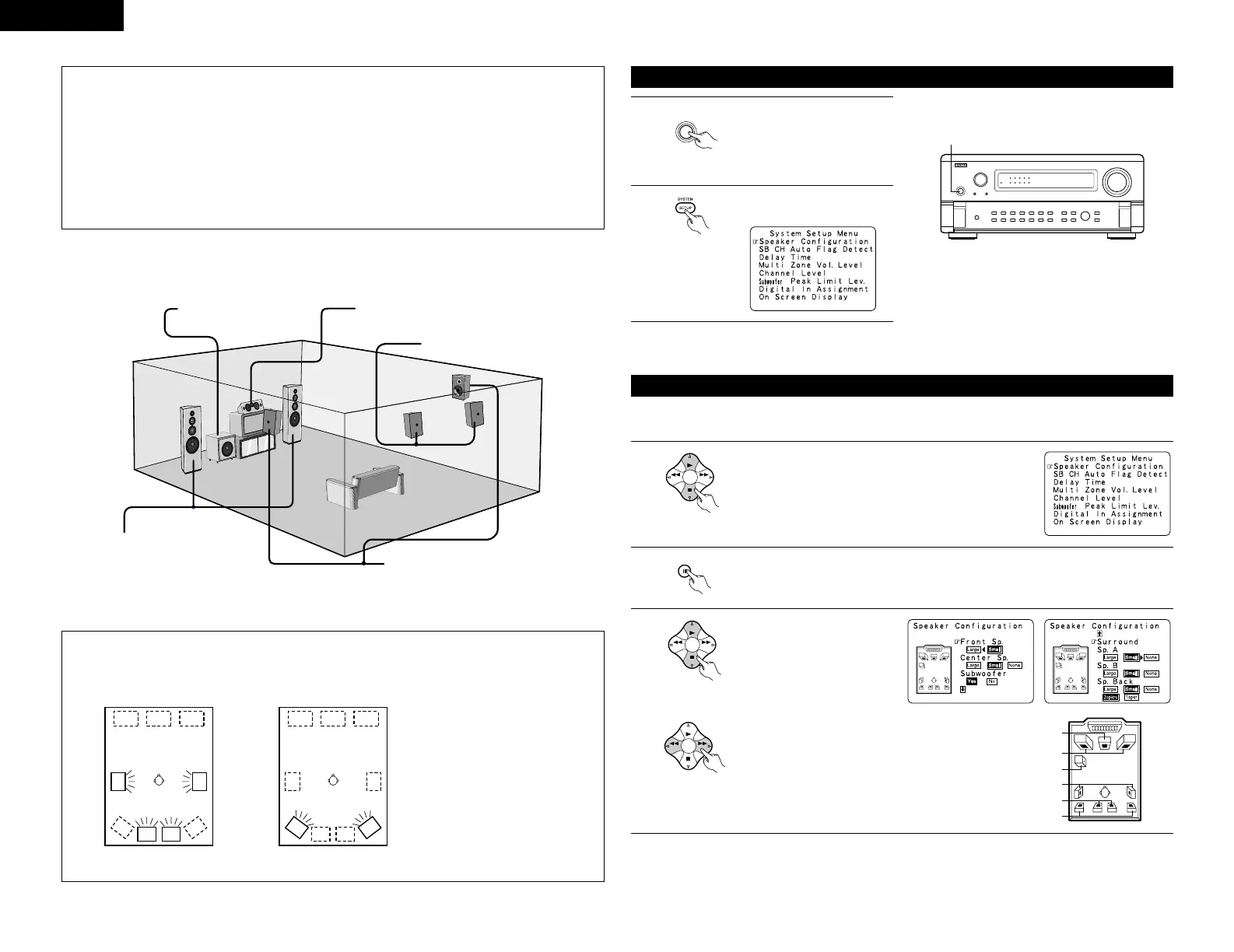

• Speaker system layout
Basic system layout (For a THX Surround EX system)
• The following is an example of the basic layout for a system consisting of eight speaker systems and a
television monitor:
With the AVC-A11SR it is also possible to use the surround speaker selector function to choose the best layout
for a variety of sources and surround modes.
Subwoofer Center speaker system
Surround speaker systems
Surround back speaker systems
Front speaker systems
Set these at the sides of the TV or screen with
their front surfaces as flush with the front of
the screen as possible.
• Surround speaker selector function
This function makes it possible to achieve the optimum sound fields for different sources by switching
between two systems of surround speakers (A and B). The settings of the different speakers (A only, B
only or A+B) are stored in the memory for the different surround modes, so they are set automatically
when the surround mode is selected.
Using A only
(Multi surround speaker system)
Using B only
(Single surround speaker system)
(SB: Surround Back Speakers)
Before setting up the system
2
Display the System Setup
Menu.
1
Check that all the connections
are correct, then turn on the
main unit’s power.
To Next Page
