Denon DN-2700F User Manual

PREPARATIONS
(1) Checking the Contents
Check that the carton contains the following items:
DN-2700F (main unit)
RC-37 (control unit)
Operating instructions (this booklet)
Pair of RCA pin cords
Control cord (5-meter, 15 feet)
(2) I nstalling the Units
Mount the units onto your console or rack with 19" EIA rack rails.
CAUTION:
• The DN-2700F will work normally when the main
unit is mounted with the front panel within 20
degrees of the vertical plane. If the unit is tilted
excessively, discs may not load or unload properly.
(Figure 6)
•

RC-37's LCDs are designed to be clearly visible within
the angles shown in Figure 7. Mount the RC-37 so that
the visual angle is within this range.

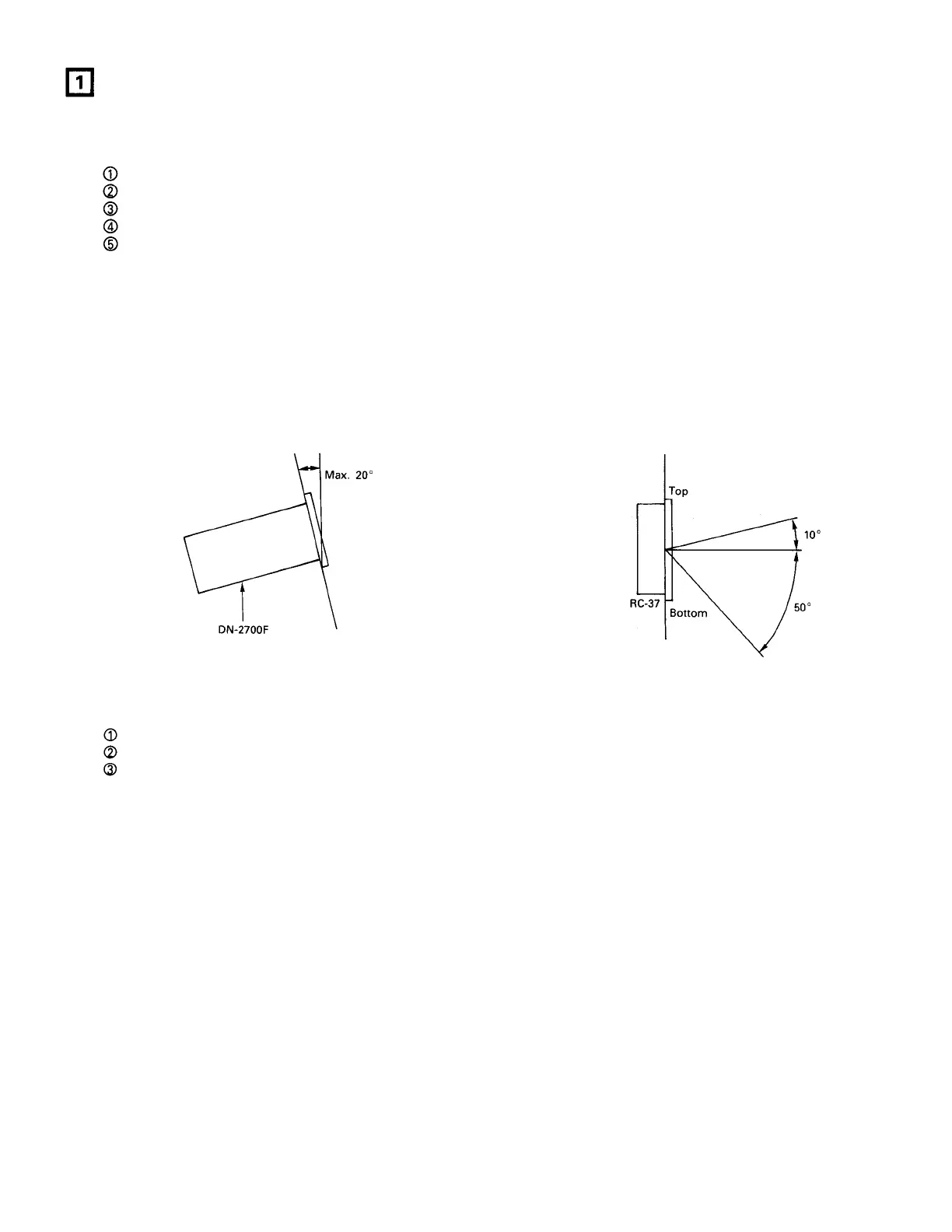

Figure 6
Figure 7
(3) Connections
Turn off the POWER switch.
Connect the RCA pin cords to the inputs
Connect the control cord to the REMOTE
on your mixer.
connector on the RC-37.
Be sure to use the supplied control cord. Using another type of cable may result in damage.
•
Be sure the power is off when connecting the control cord. Otherwise the units may not work properly.
9
CAUTION:

Denon DN-2700F Specifications

Power

power supply U.S. and Canadian models	120 V AC ±10%, 60 Hz
power supply European models	230 V AC ±10%, 50 Hz
power supply Multi-voltage models	120/220/240 V AC ±10%, 50/60 Hz
power consumption	26W

Operating Environment

operational temperature	5 to 35 °C
operational humidity	25 to 85%
storage temperature	-20 to 60 °C

Audio Specifications

quantization	18-bit linear per channel
sampling frequency	44.1 kHz
frequency response	10 to 20, 000 Hz
total harmonic distortion	0.003%
signal to noise ratio	103 dB
dynamic range	98 dB
channel separation	100 dB
output level	2.0 V
load impedance	10 kohm or more

Weight and Dimensions

player unit dimensions	482 (W) x 88 (H) x 252 (D) mm
control unit dimensions	482 (W) x 132 (H) x 40 (D) mm
player unit weight	6 kg
control unit weight	3 kg
