29
Ca
u
ti
on
:

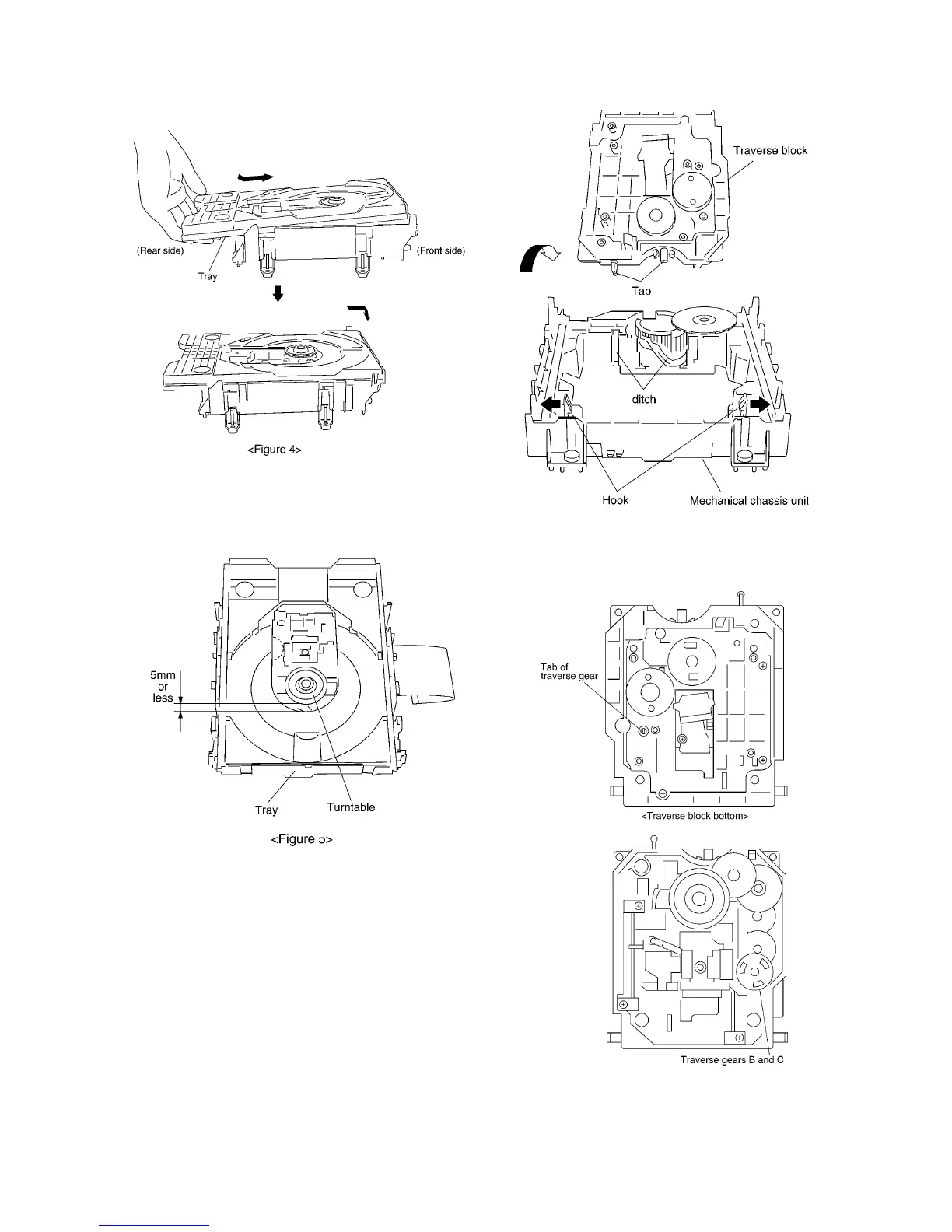

Make
sure
to
mate
convex
phase
and
concave
phase
properly,
so
that
the
gap
between
turntable
and
tray
becomes
5mm
or
less.
9
.
5.
T
r
av
e
r
s
e
B
l
o
c
k
1. Lift
the
traverse
block
while
spreading
the
hook
of
the
mechanical
chassis
unit.
2. Disengage
the
tabs
from
the
holes
of
the
mechanical
chassis
unit.
9
.
6.
T
r
av
e
r
s
e
G
e
a
r
1. Disengage
the
tabs
from
the
traverse
gear.
2. Remove
the
traverse
gears
B
and
C.
28
30
