30

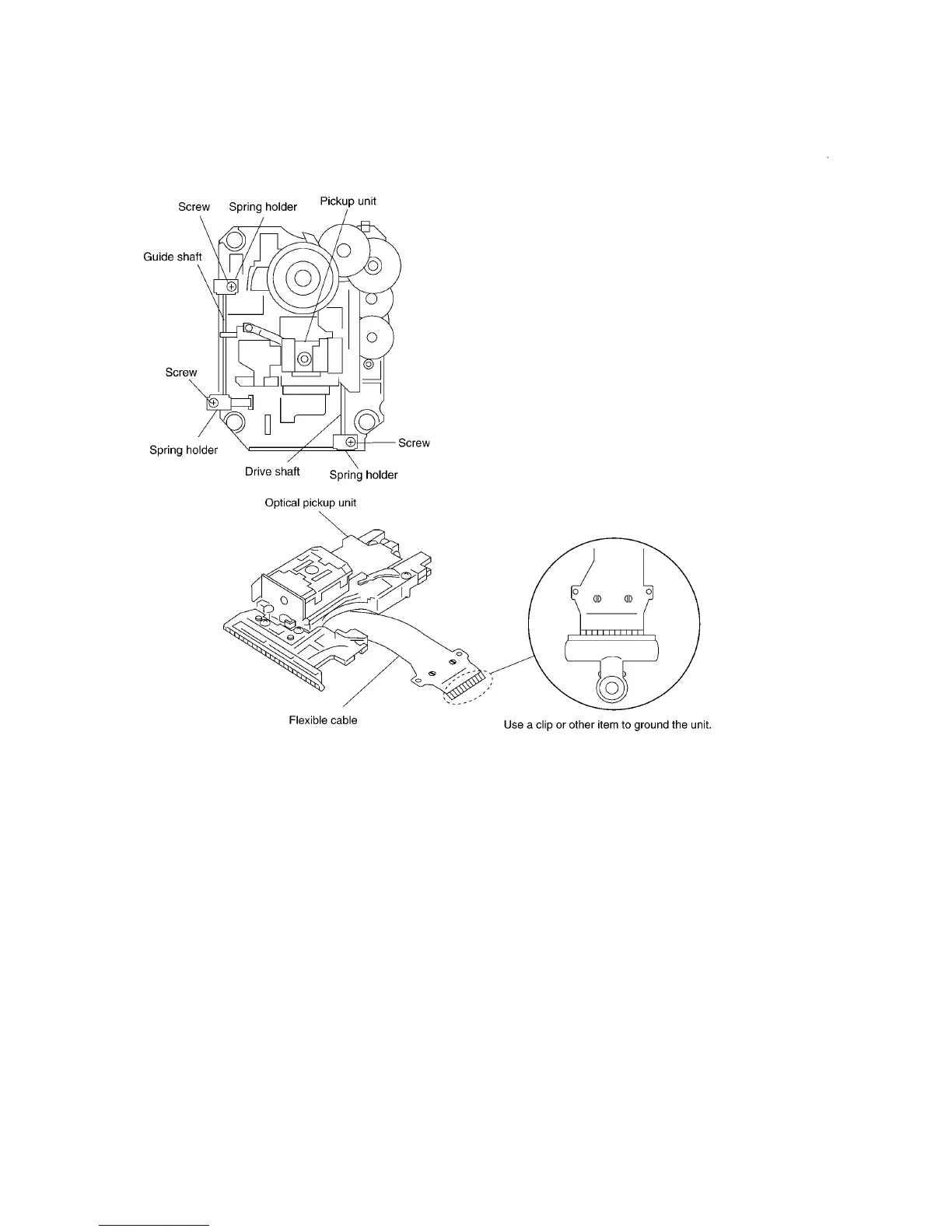

9.7. Optical Pickup Unit
1. Unscrew the screws.
2. Remove the spring holders and the springs.
3. Pull out the drive shaft and guide shaft.
9.7.1. Precautions in optical pickup
replacement
The optical pickup can be damaged by static electricit
from you body. Be sure to take static electricit
countermeasures when working around the optical picku
(Refer to the related page in this Manual about th
countermeasures.)
1. Do not touch laser diode, actuator and their peripheries.
2. Do not use tester to check laser diode. (Laser diode can be
damaged easily.)
3. The use of soldering iron with anti-static feature is
recommended when providing short-circuit to laser diode or
when removing it.
4. Solder the land on flexible cable of optical pickup unit.
Caution
x
xx
x When using the soldering iron without anti-static
feature, short-circuit the flexible cable terminal with a
clip before short-circuiting the land.
x
xx
xAfter intended repair is finished, remove the solder
for short-circuit of laser diode in a correct way
following the procedures described in this Manual.
To Next Page
