7

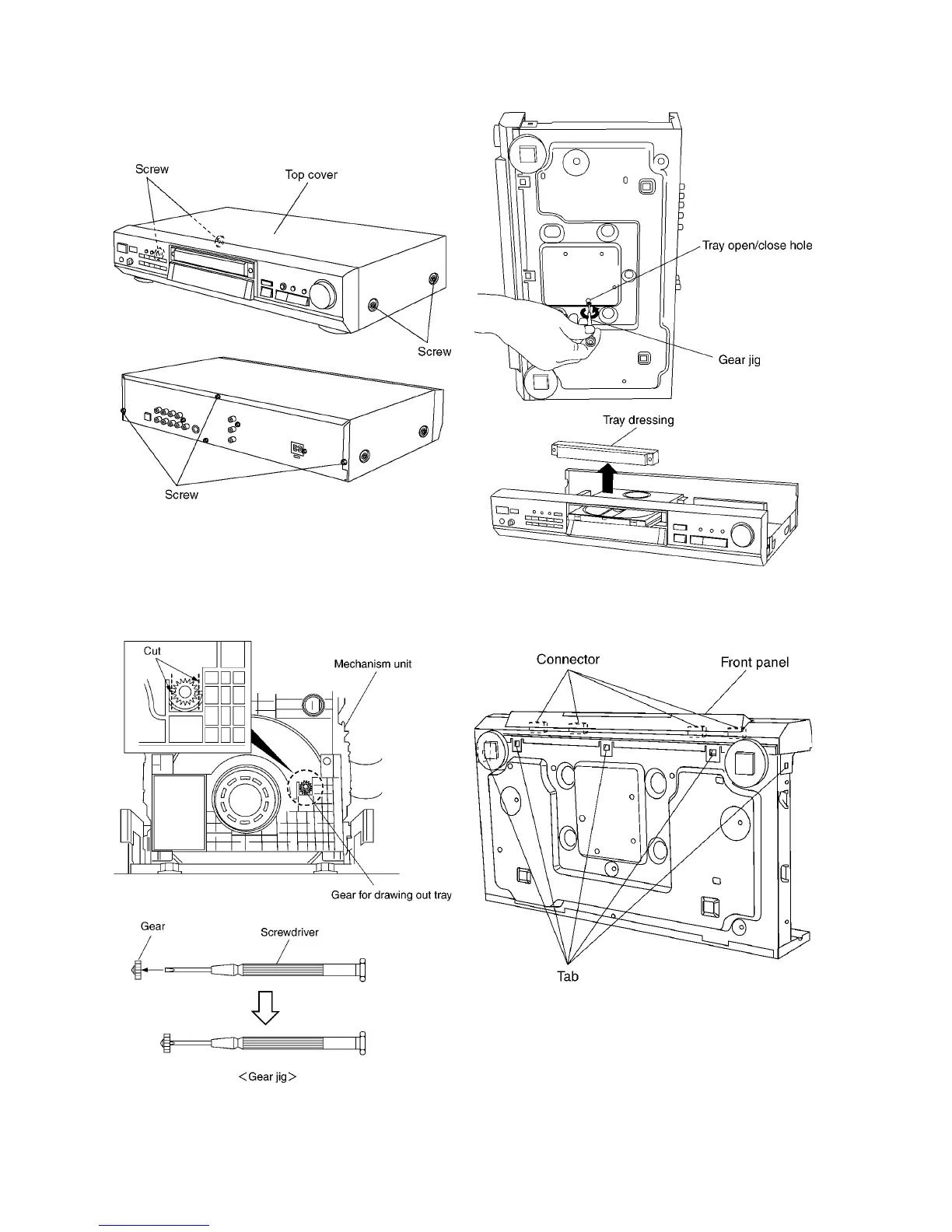

5.3.
Top
Cover
1.
Unscrew
the
screws.
5.4.
Tray
1.
Pull
the
tray
out
of
the
mechanism
unit.
Remove
the
gear
and
install
it
onto
a
screwdriver
to
make
a
gear
jig.
2.
Insert
the
gear
jig
into
the
tray
open/close
hole.
3.
Turn
the
gear
jig
counterclockwise
to
open
the
tray.
4.
Remove
the
tray
dressing
from
the
tray
section.
5.5.
Front
Panel
1.
Release
the
tabs.
2.
Remove
the
connectors.
6
8
Table of Contents
Specifications
2
Safety Precautions
3
General Guidelines
3
Prevention of Electro Static Discharge (Esd) to Electrostatically Sensitive (Es) Devices
3
General Description
5
Operating Instructions
5
Disassembling the Casing and Checking P.C.b.s
6
Top Cover
7
Front Panel
7
Rear Panel
8
Servicing Position
9
Prevention of Static Electricity Discharge
11
Grounding for Electrostatic Breakdown Prevention
11
Handling Precautions for Traverse Unit (Optical Pickup)
11
Handling of Optical Pickup
11
Optical Pickup Self-Diagnosis and Replacement Procedure
12
Cautions to be Used before Replacing the Optical Pickup Unit and Spindle Motor Assembly
13
Updating Firmware
15
Overview of each Function
17
Service Mode Table
19
DVD Self Diagnostic Function-Error Code
19
Last Error Code Saved During no PLAY
20
Self-Diagnosis Function and Service Modes
21
Servo Process Flow
24
Sales Demonstration Lock Function
26
Service Precautions
26
Handling after Completing Repairs
26
Recovery after the DVD Player Is Repaired
26
Assembling and Disassembling the Mechanism Unit
27
Disassembly Procedure
27
Clamp Plate Unit
27
Traverse Gear
29
Traverse Block
29
Optical Pickup Unit
30
Precautions in Optical Pickup Replacement
30
Disassembling the Optical Pickup Unit
31
Cautions to be Taken When Replacing the Optical Pickup
31
Disassembling the Middle Chassis
34
Disassembling the Traverse Gear A/FG Unit
34
Disassembling the Spindle Motor Unit
34
Adjustment Procedures
35
Service Tools and Equipment
35
Important Points in Adjustment
35
Storing and Handling Test Discs
35
Optical Adjustment
36
Optical Pickup Tilt Adjustment
36
Important Points
36
Electrical Confirmation
37
Video Output (Luminance Signal) Confirmation
37
Video Output (Chrominance Signal) Confirmation
37
Voltage Chart
40
Overall Block Diagram
44
Servo Block Diagram
47
Video Block Diagram
50
Audio Block Diagram
56
Interconnection Schematic Diagram
58
Print Circuit Board
87
Module P.C.b. (1/2) (Component Side)
91
Module P.C.b. (2/2) (Foil Side)
93
Front 1 P.C.b., Front 2 P.C.b. and Front 3 P.C.b
95
Exploded Views
97
Mechanism Section Exploded View
98
Packing & Accessories Section Exploded View
99
Replacement Parts List
100
Parts List of P.w.b. Unit Ass'y
101
Parts List of Exploded View
116
