Key Description T900 T1200 QTY
1 Door Hinge Assembly (mounts to tub front) 9955-031-001 9955-031-001 1
* Door Assembly Complete 9960-310-001 9960-310-001 1
2 Door Ring 180 degree large hnge 9487-275-001 9487-275-001 1
3 Door Gasket 9206-431-001 9206-431-001 1
4 Door Glass Window 9635-020-001 9635-020-001 1
* Red Wire (Door Close Switch) 8220-063-028 8220-063-028 1
* Black Wire (Door Close Switch) 8220-063-029 8220-063-029 1
5 Switch, Door Hinge Close (Plunger) 9539-492-001 9539-492-001 1
6 Top Door Hinge Leaf 9845-006-001 9845-006-001 1
7 Bottom Door Hinge Leaf 9845-007-001 9845-007-001 1
8 Thrd Form Screw, Door Mtg 5/16” x 5/8” 9545-056-002 9545-056-002 4
9 Screw, Loading Door Hinge Mtg
(5/16” x9/16” ss)
9545-014-013 9545-014-013 3
9 Washer, Star 5/16 9913-134-003 9913-134-003 3
10 Bracket Retainer support side panel 9046-085-001 9046-085-001 1
* Shim Large door 9552-043-001 9552-043-001 1

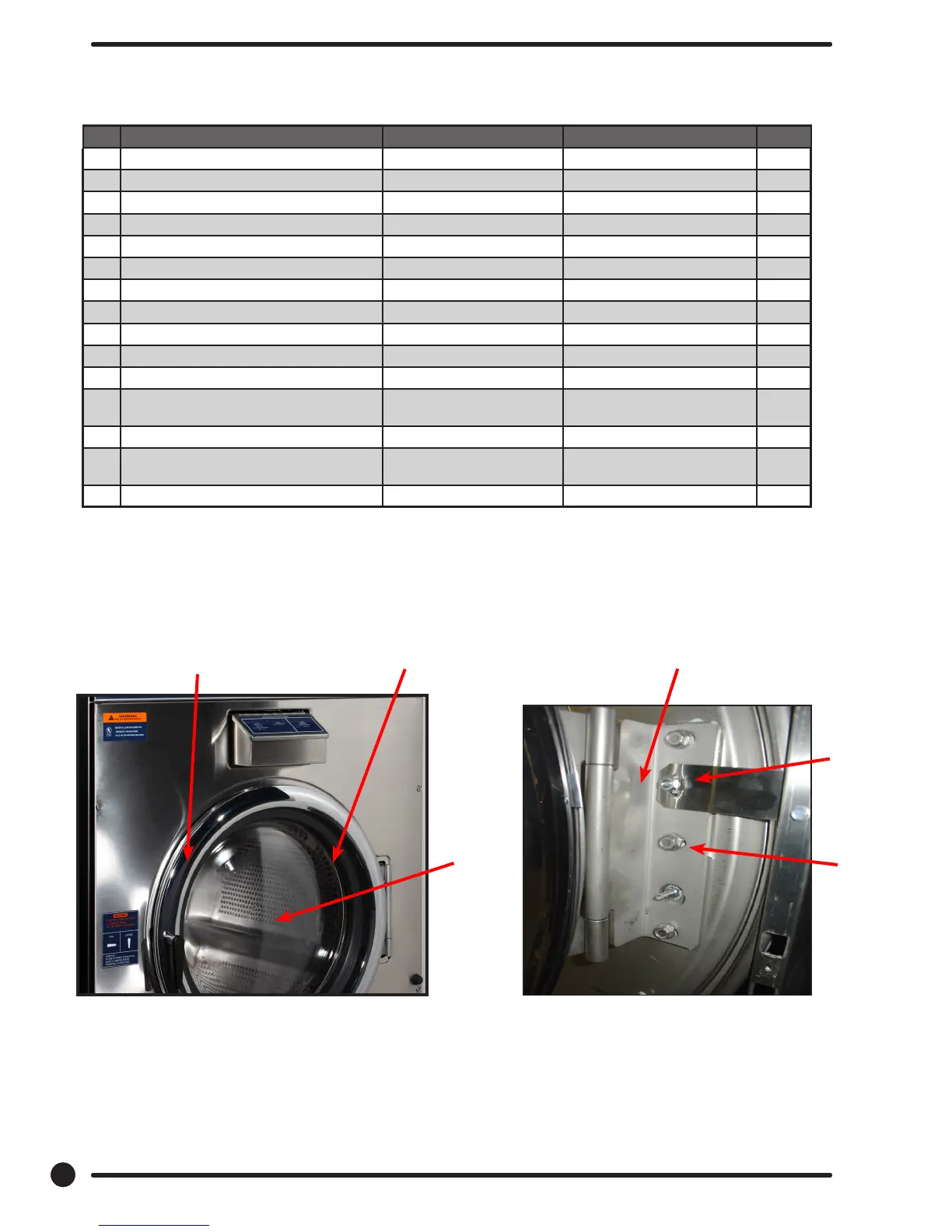

Large Door & Hinge Group
2
3
4
9
10
1
110
Part # 8533-081-001 1/18
