Top Panel Removal
Step 1: Remove 4 screws that hold detergent dispenser to top
panel. (T750 with top soapdish) if front soap dish go to
step 2
Step 2: Unlock top panel lock with the 6324 key.
Step 3: Raise top panel, slide to the rear to release from back
clips and lift o.

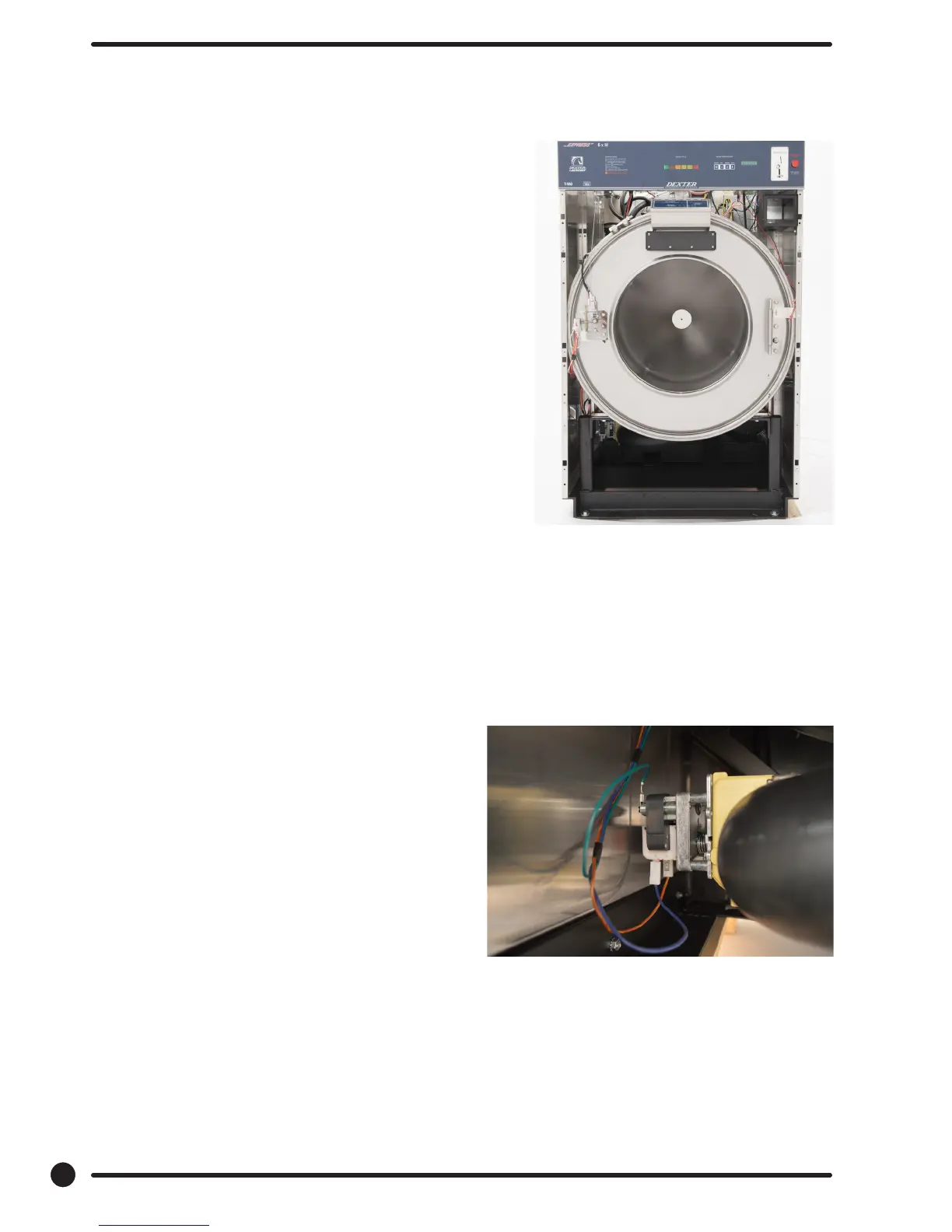

Front Panel Removal
Step 1: Remove the loading door by rst removing the two
lower screws of the lower hinge clamp and lifting the
door o of the hinge assembly.
Step 2: Remove 2 screws between front panel top and front
(located behind control panel).
Step 3: Remove the two screws in the middle of the front
panel.
Step 4: Pull panel out at the bottom to about a 45 degree
angle to detach the top lip and remove.
Back Panel Removal
Step 1: Remove all screws holding back panel in position except the bottom row.
Step 2: The bottom row of screws are slotted and only need to be loosened and to lift o panel.
NOTE: The back panel is not only a safety requirement but also contributes to the rigidity
of the cabinet.
Drain Valve Access
For access to drain valve, remove lower service
panel. The drain valve is a ball type and is powered
closed by the drain valve motor. It is mounted
under the washer tub on the left side. It is spring
loaded open. If power is interrupted to the washer,
the motor releases the sealing ball, allowing the
drive spring to open the valve. With the valve
open, all water in the washer will drain out.
Drain Valve Cleaning
Step 1: Loosen the clamp on the tub hose at
the drain valve end and remove the hose from the drain valve.
Step 2: Loosen the drain hose clamp on the back of the drain valve. Remove two drain valve mounting
racket screws from the frame of the washer.
Step 3: Disconnect red & black wire connection at clear connector.
Step 4: Remove the drain valve and bracket assembly. Unplug the wiring after the drain valve is removed
from the washer.
68
Part # 8533-081-001 1/18
