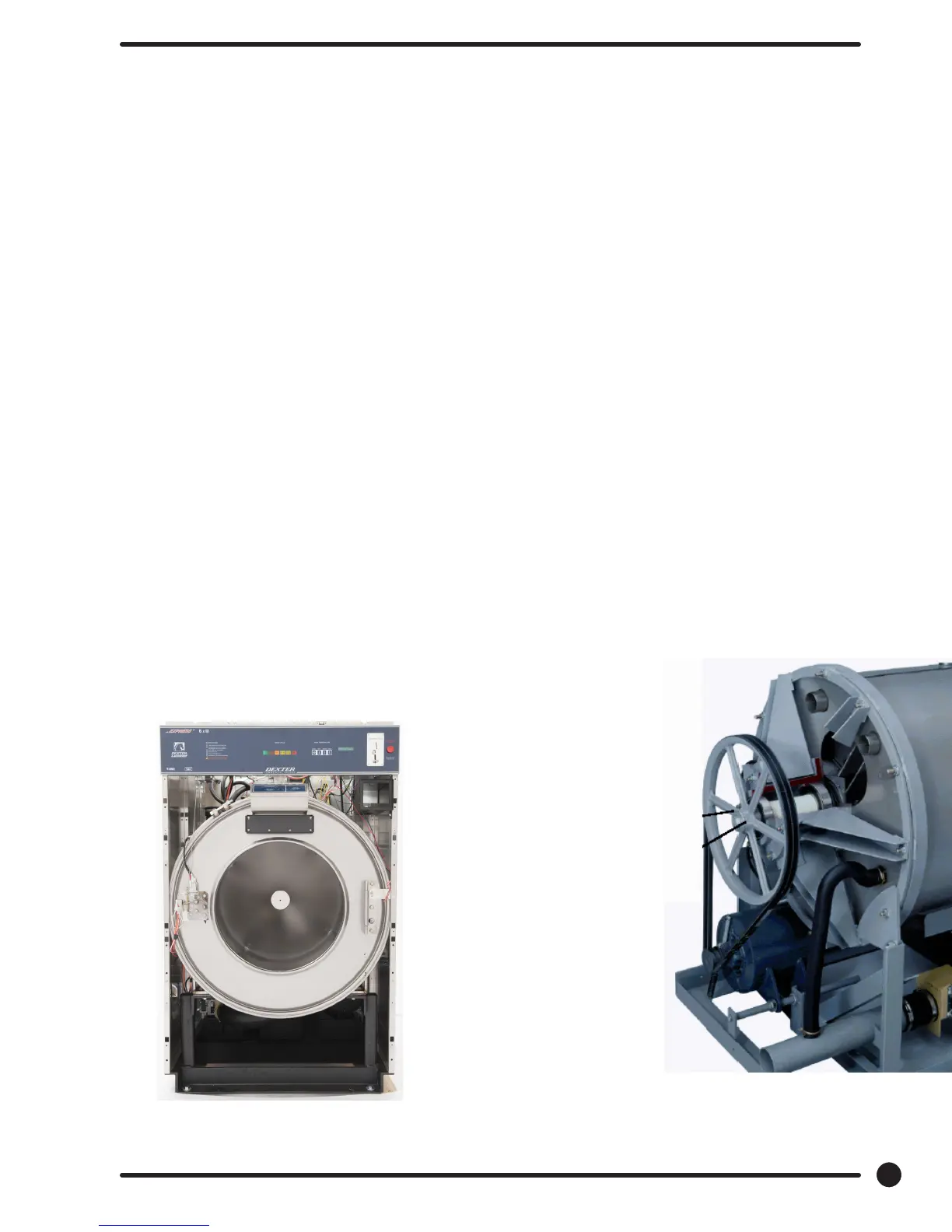

Outer Cabinet Removal
T-300, T350, T-400, T450, T-600
Removal of Cabinet T750, T-900, T-950, T-1200, T-1450
Step 1: The power supply, water hoses, and drain connection must all be disconnected before proceeding
with the disassembly.
Step 2: Now remove the lower service panel and the top panel assembly.
Step 3: Remove the left and right lower front panel screws that retain the panel to the chassis.
Step 3: Remove the bottom row of back panel screws.
Step 4: Remove the loading door.
Step 5: Remove the four 7/16 nuts along the bottom of each side panel straps. When reinstalling these
screws do not overtighten.
Step 6: Disconnect the door lock wires from all switches and the door lock solenoid.
Step 7: Disconnect pull rod between solenoid and door lock assembly. Disconnect the wires to the dump
valve at the bottom of the machine.
Step 8: Disconnect the wires to the drive motor from the VFD T1, T2, T3.
Step 9: Remove the clamp and the hose from the vacuum breaker where it connects to the inlet on the back
of the tub.
Step 10: Remove the pressure switch hose from the bottom of the switch.
Step 11: It should now be possible for two people to lift the cabinet up and o of the front of the machine and
set it aside.
75
Part # 8533-081-001 1/18
