©2014 DJI. All Rights Reserved. 14
2.2.2 Remote Control Connection
Connect training port and Control In port on ground system using rectangle headed training port cable and
remote control cable. Supported remote controls include Futaba, Spektrum, Devention and JR. Refer to
remote control manuals for details.

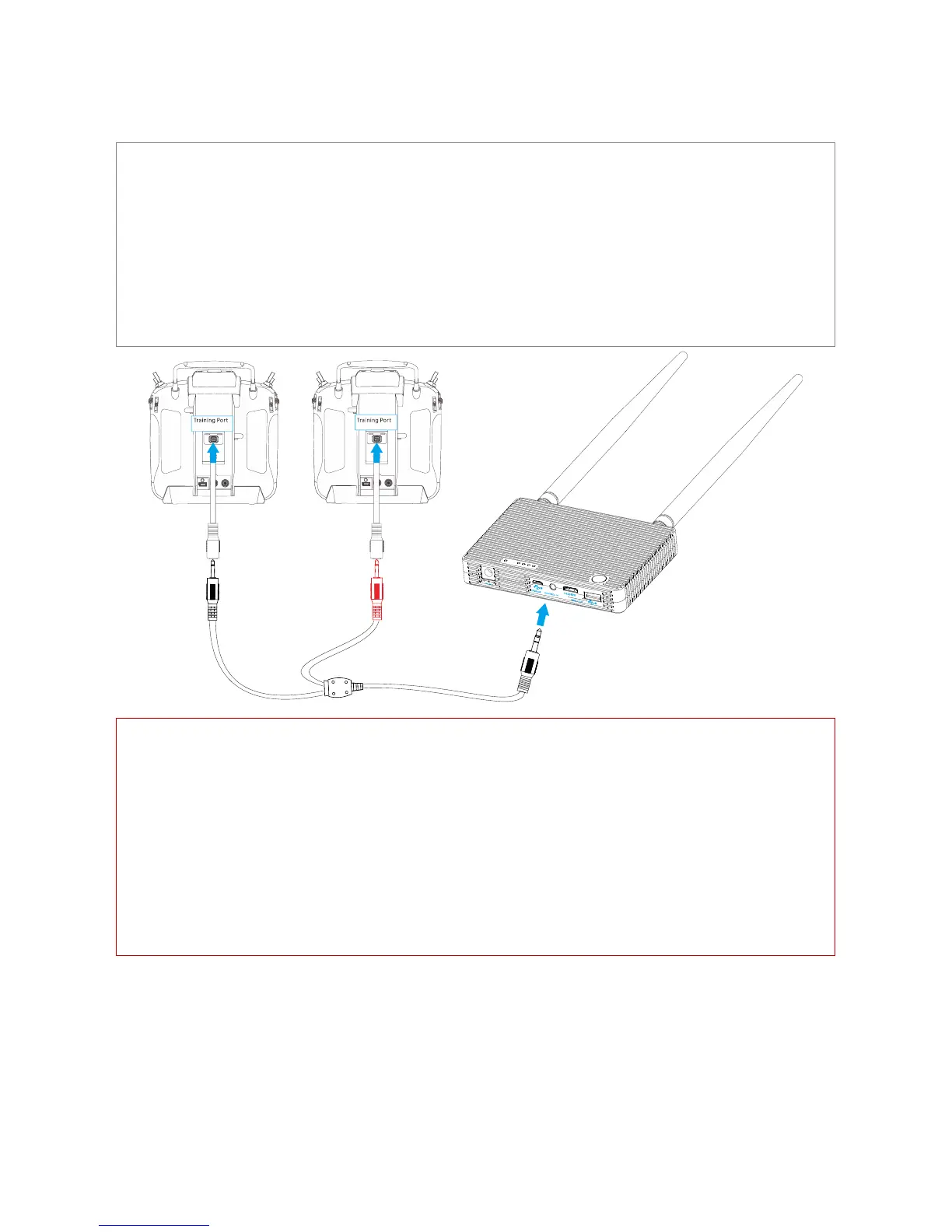

Two remote controls can be connected to the ground system at once. See example below for details.
Red jack connects to aircraft remote control.
Black jack connects to gimbal remote control.
(1) 2.4GHz remote controls must be connected to ground system for aircraft and gimbal control through
training ports, whose RF function should be switched off. Ground system will relay signals, remote
control will act as control system.
(2) 5.8GHz remote controls cannot be connected to ground system. Remote control signal is transmitted
by the remote control itself. Flight control system will communicate with receiver at 5.8GHz.
Additionally, DBUS on air system does not need connection.
2.2.3 Remote Control Configuration
Remote control must be configured through Assistant for the flight control system before performing this step.
Pay special attention to the below:
1. Select AERO as TX model. Set all curves (pitch, throttle, expo, rates, etc.) to default. Set endpoints of all
channels to default (100%) and all trims and sub-trims to zero.
