Vehicle Systems Specifications
9
Tilt Cylinder
Truck Model Forward Backward Closed Length Stroke Cylinder P/No.
DG15/18S-5
6° 10° 372.5 mm 82 mm D518277
8° 10° 372.5 mm 91.5 mm 400334-00015
GC15/18S-5
6° 10° 392.5 mm 73 mm D518224
6° 10° 392.5 mm 82 mm A252107

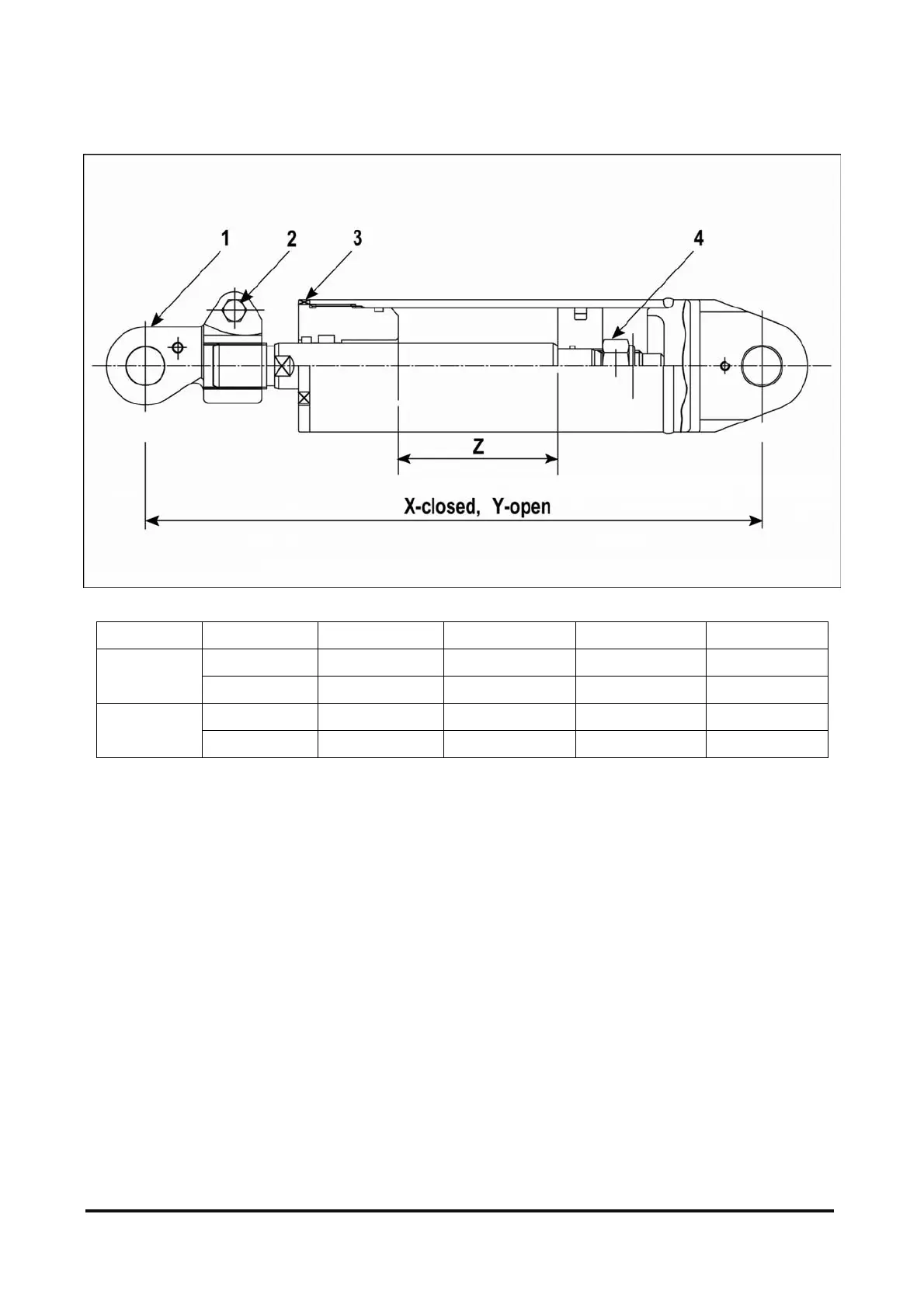

(1) Adjust pivot eye to dimension(Y) with cylinder
open (extended)
(2) Torque for bolt ............. 95±15 N•m (70±10 lb•ft)
(3) With mast at tilt back position shim as required to
permit no gap between eye (1) and spacer.
Torque for head ....... 270±35 N•m (200±25 lb•ft)
(4) Torque for jam nut .... 260±25 N•m(190±20 lb•ft)
