Doosan D15S-5 User Manual

Vehicle Systems Hydraulic System Operation
31

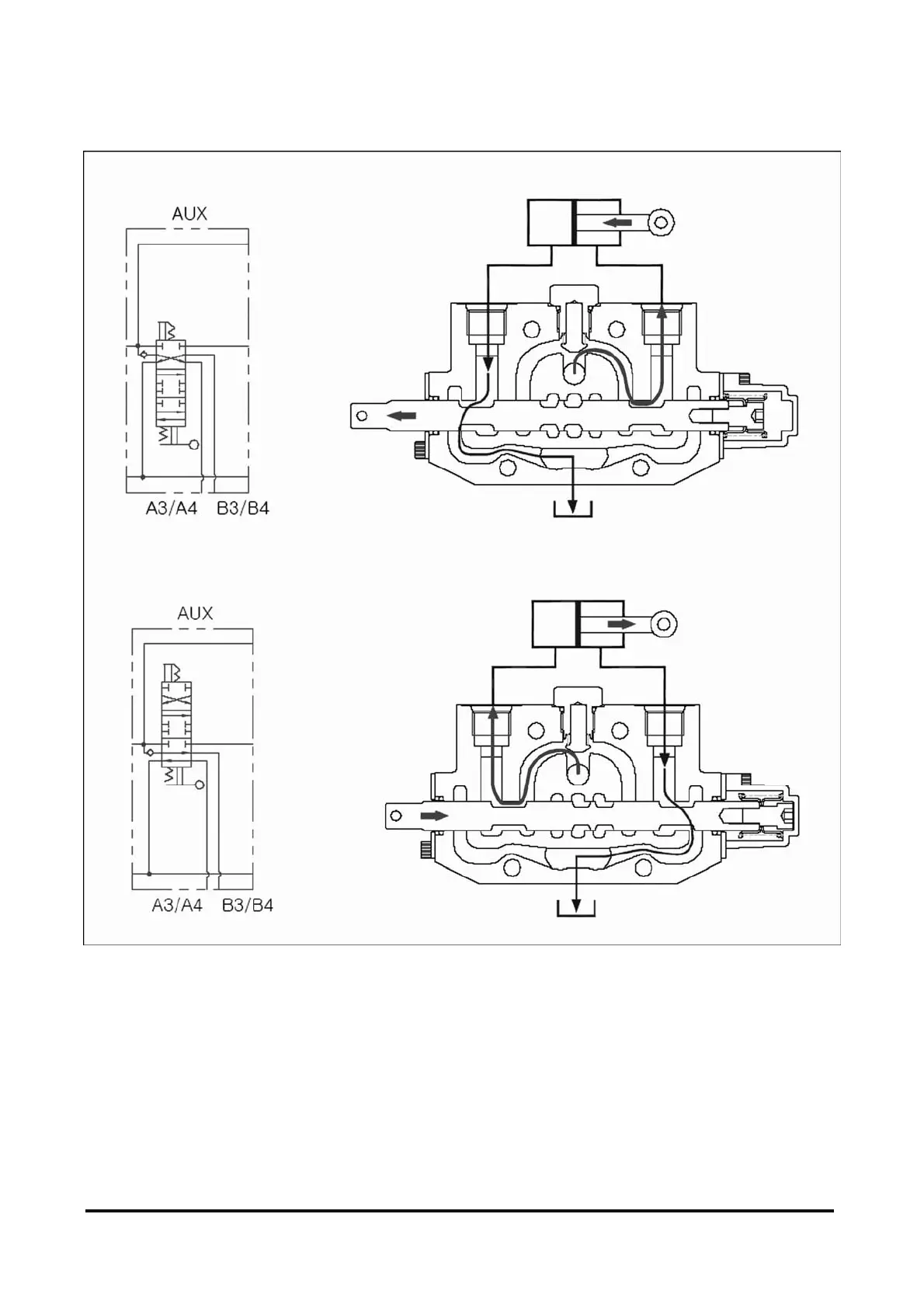

Auxiliary Section
• In general, one work port is pressurized by high pressure oil from the parallel passage past the load check
valve, past the metering notches, and to the cylinder. Simultaneously, oil from the other work port is
directed across the spool metering notches to tank.
