Vehicle Systems Specifications
24
Hydraulic System Operation
Hydraulic Schematic

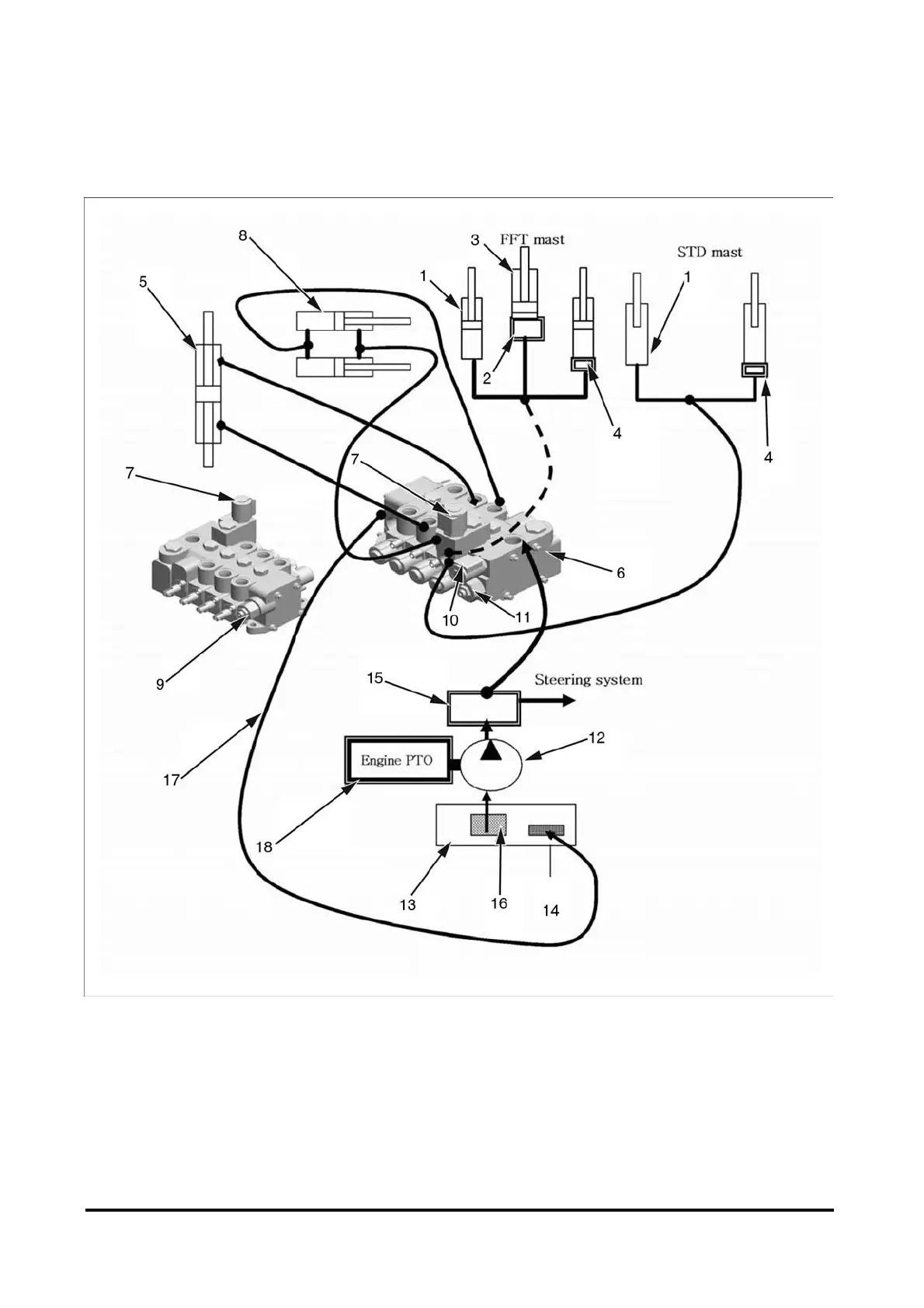

Basic Hydraulic Actuator System Schematic
(1) lift cylinder secondary, standard (2) flow protector-primary (3) lift cylinder-primary (4) flow protector-secondary, standard
(5) side shift cylinder (6) control valve (7) solenoid valve for lift lock (8) tilt cylinder (9) relief valve-auxiliary
(10) solenoid valve for unload (11) relief valve-main (12) hydraulic pump (13) hydraulic tank (14) filter-return (15) priority valve
(16) filter-suction (17) hydraulic line (18) engine-P.T.O
