Vehicle Systems Hydraulic System Operation
27

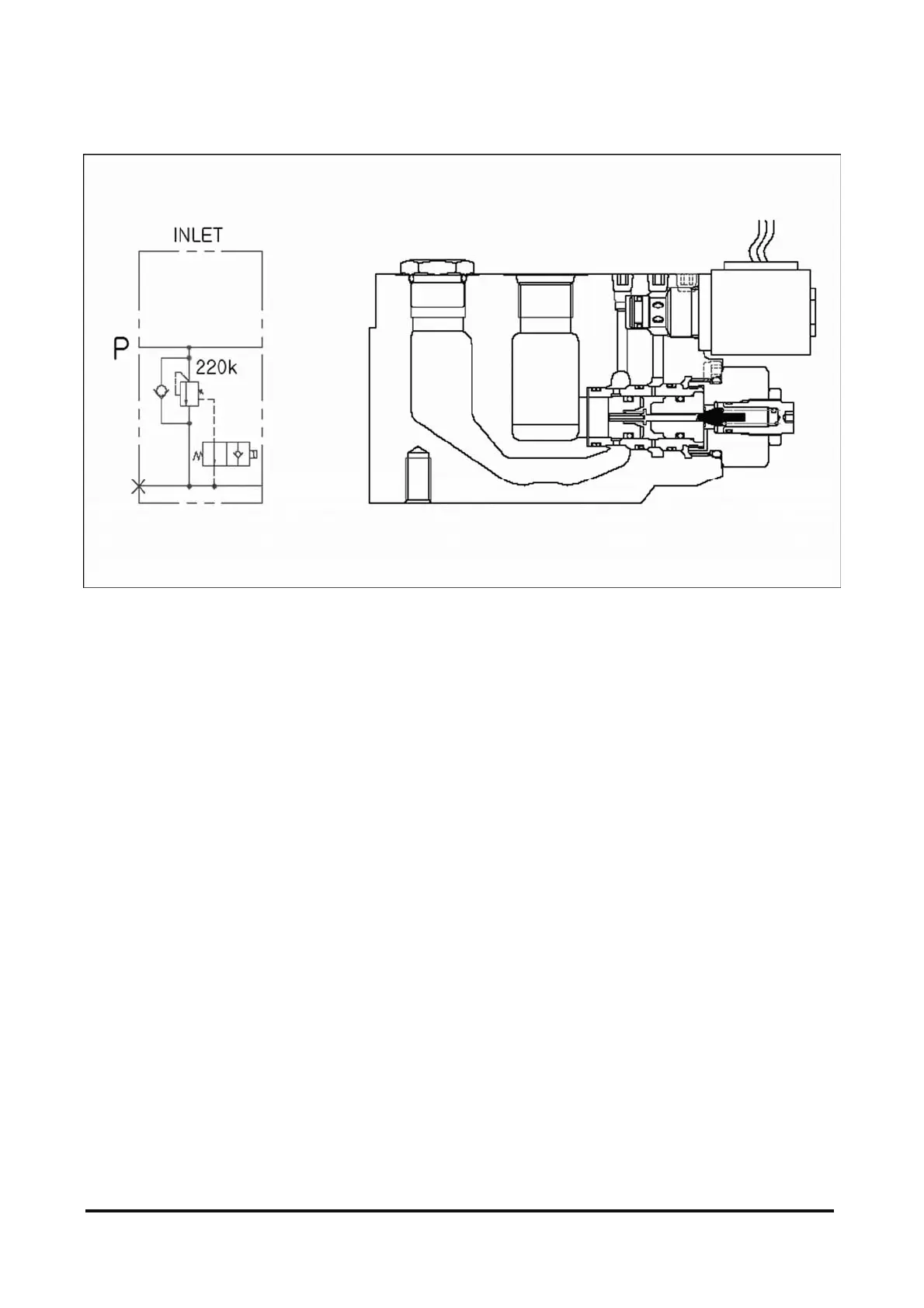

Inlet Section
• The inlet section contains the pump inlet connection as well as a diagnostic inlet pressure gage port (new
feature to be added).
• When the operator is not seated, the solenoid valve is in the normally open position, which helps divert flow
from the pump directly to the outlet of tank. In this manner, oil pressure is limited and their operation is
prevented.
