Vehicle Systems Specifications
5
Specification
Control Valve
CONTROL VALVE
MODEL MAST
RELIEF PRESSURE
Main Relief Pressure-lift Auxiliary Pressure-tilt,attachment
psi kPa psi kPa
D15S,G(C)15S-5 STD/FF/FFT
2,550±35 17,600±250
2,040±50 14,000±350
D18S,G(C)18S-5 STD/FF/FFT
2,880±35 19,860±250
D20SC,G20SC-5 STD/FF/FFT
3,125±35 21,550±250

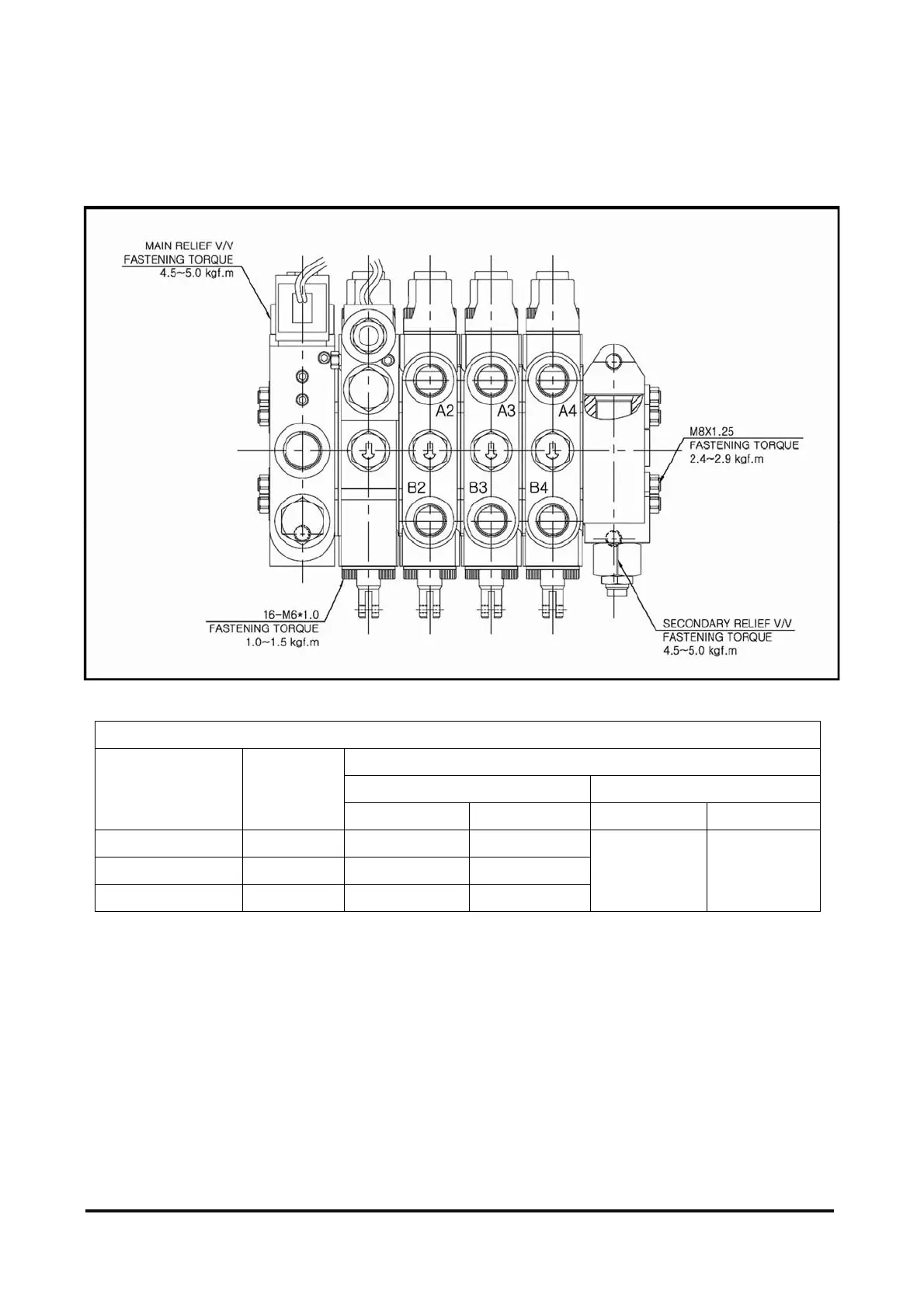

(1) Torque for nuts that hold control valve sections together ................................. 24 to 28 N•m (18 to 21 lb•ft)
(2) Torque for nuts that hold control valve sections together ................................. 24 to 28 N•m (18 to 21 lb•ft)
(3) Torque for main and auxiliary relief valve ......................................................... 44 to 49 N•m (32 to 36 lb•ft)
(4) Torque for cap screw that hold spool cap ........................................................... 10 to 15 N•m (7 to 11 lb•ft)
