77
Comfor t
DS5_en_Chap03_confort_ed02-2015
Rear seats
F Move the corresponding front seat forward
if necessary.
F Place the head restraints in the low
position or remove them.
F Remove the seat belt from its guide.

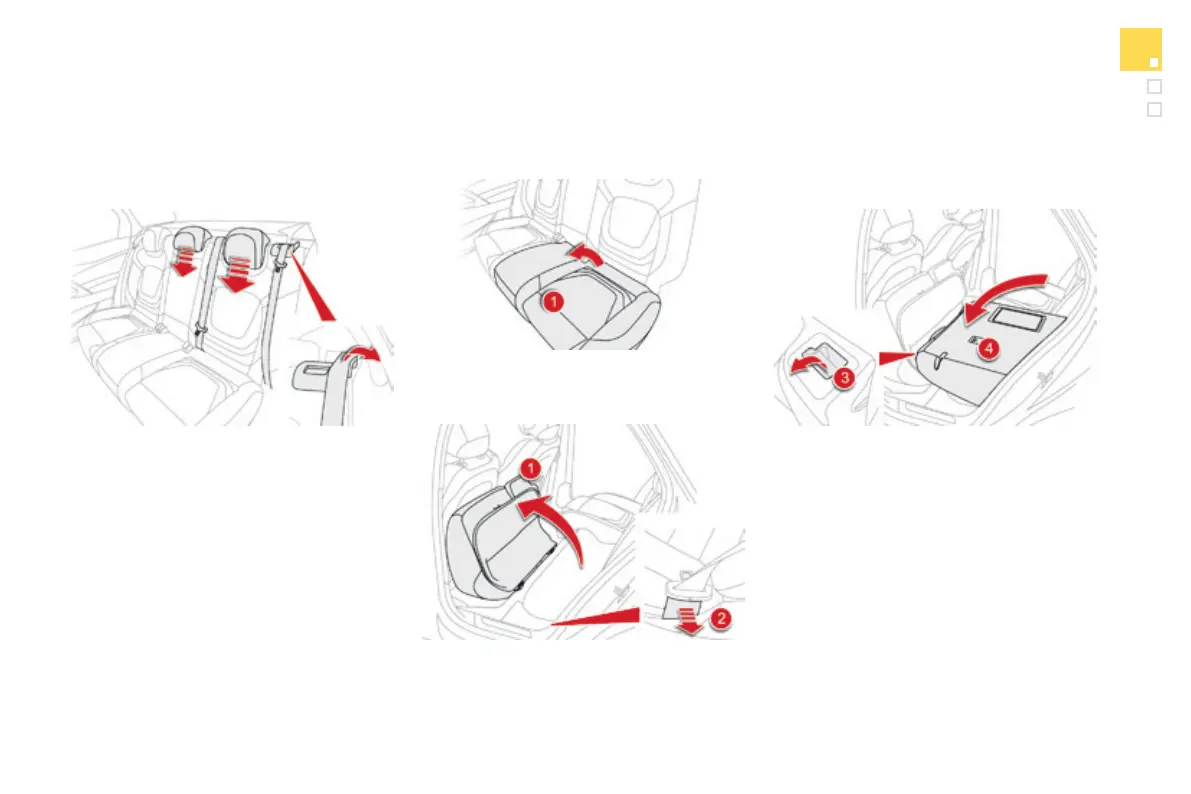

Folding the cushion and
backrest
F Lift the cushion 1 by hand, lifting from
the rear.
F Tip the seat cushion 1 fully against the
front seat.
F Keep the seat belt guide 2 held against
the vehicle.
F Pull control 3 forwards to release the seat
back 4.
F Fold the seat backrest 4.
Bench seat with split cushion and backrest (left hand 2/3, right hand 1/3) which can be folded individually to adapt the load space in the boot.
