Installation in rack position

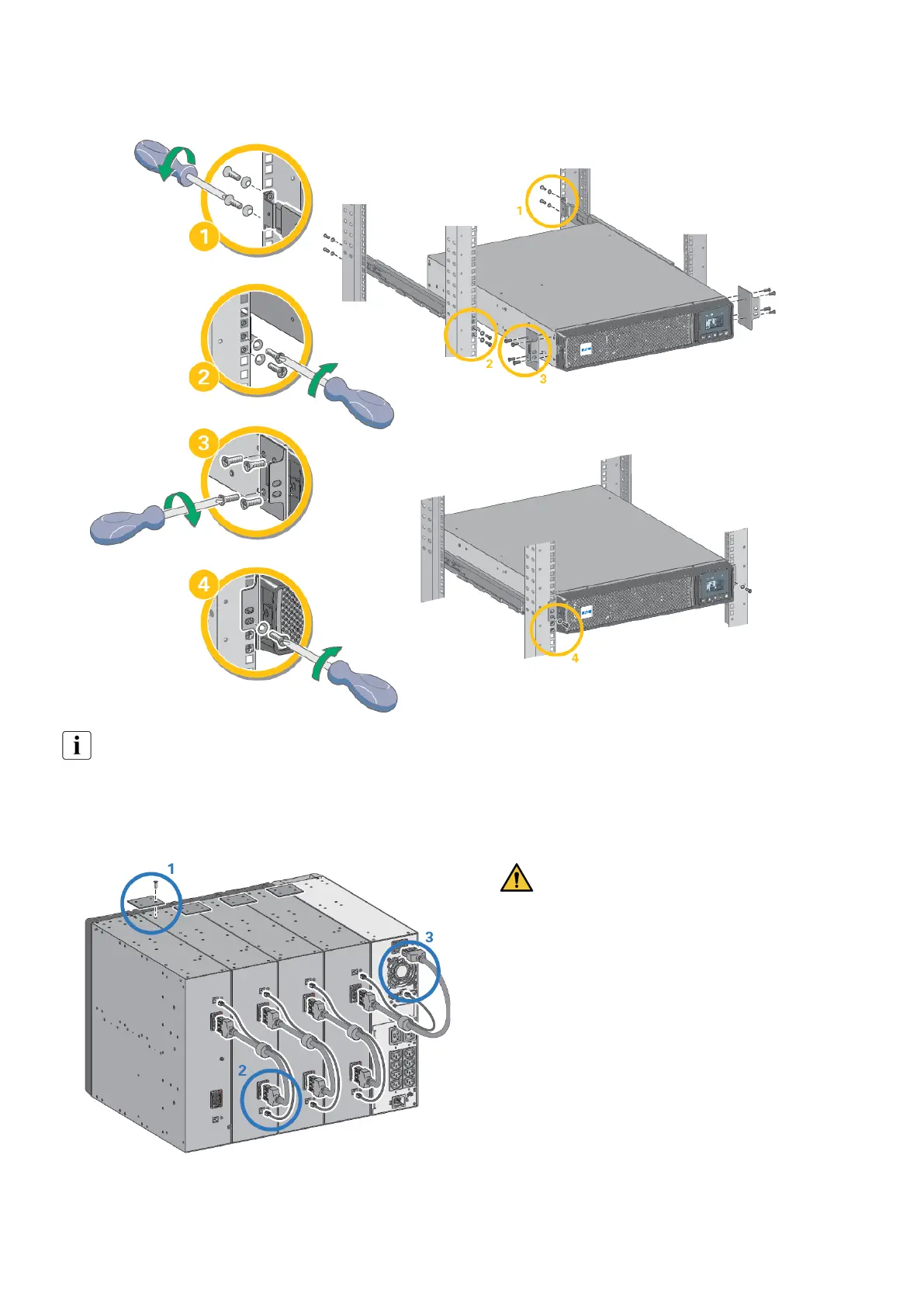

Follow steps 1 to 4 for module mounting on the rails.
The rails and necessary hardware are supplied by Eaton.
A small amount of arcing may occur when
connecting an EBM to the UPS. This is normal and will
not harm personnel. Insert the EBM cable into the UPS
battery connector quickly and firmly.
1.Attach the UPS and the EBMs to each other using the
supplied mounting plate. Up to 4 EBMs may be
connected to the UPS.
2. Connect the EBMs power cable and the attached
battery detection cable as shown in the picture.
3. Verify that the EBM connections are tight and that
adequate bend radius and strain relief exist for each
cable.
