Eaton 5PX Gen2 User Manual

614-40094-00
33
1.
2.
3.
1.
2.
1.
2.
3.
Warning: take care not to reverse the polarity + (red) and - (black) when connecting the batteries as this
willdestroy the device.
Testing new batteries :
To test new batteries:
Charge the batteries for 48 hours.
Press any button to activate the menu options.
Select Control then Start battery test. The UPS starts a battery test if the batteries are fully charged, the UPS is in
Normal mode with no active alarms, and the bypass voltage is acceptable. During the battery test, the UPS transfers
to Battery mode and discharges the batteries for 10 seconds. The front panel displays "Battery test in progress" and
the percentage of the test completed.

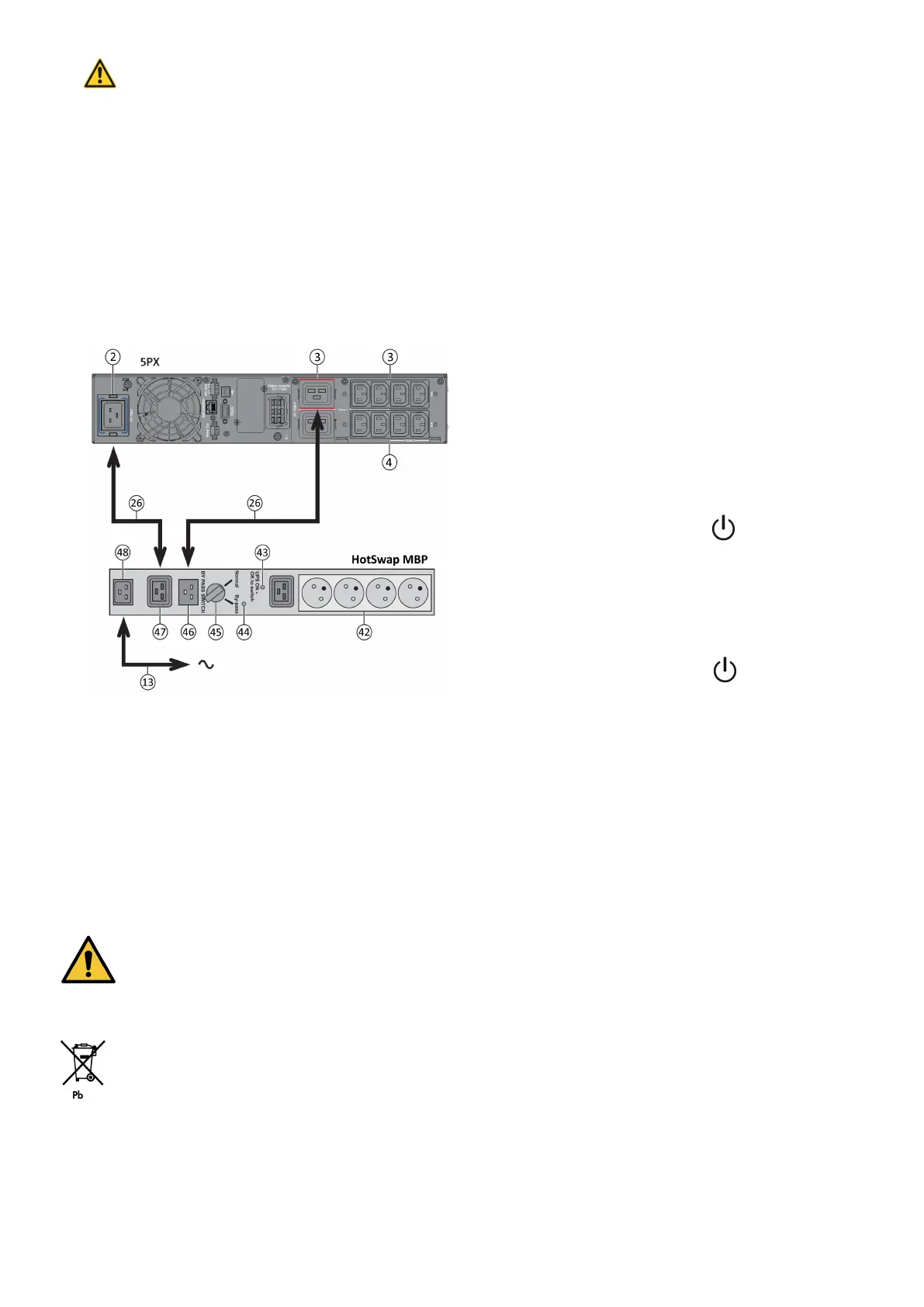

8.5 Replacing the UPS equipped with a HotSwap MBP
The HotSwap MBP module makes itpossible to service
or even replacethe UPS without affecting the
connectedloads (HotSwap function).
Maintenance
Set switch (45) to Bypass position.The red LED on the
HotSwap MBPmodule goes ON, indicating that
theload is supplied directly with AC inputsource
power.
Stop the UPS by pressing the button on the UPS
control panel. LED (43) "UPS ON - OK to switch" goes
OFF, the UPS can now be disconnected and replaced.
Return to normal operation
Check that the UPS is correctly connected to the
HotSwap MBP module.
Start the UPS by pressing the button on the UPS
control panel.LED (43) "UPS ON - OK to switch"
onthe HotSwap MBP module goes ON(otherwise,
there is a connection errorbetween the HotSwap
MBP moduleand the UPS).
Set switch (45) to Normal position.The red LED on
the HotSwap MBPmodule goes OFF.
8.6 Recycling the used equipment
Contact your local recycling or hazardous waste center for information on proper disposal of the usedequipment.
eaton.com/recycling
Do not dispose of the battery or batteries in a fire. Batteries may explode. Proper disposal of batteries is required.
Refer to your local codes for disposal requirements.
Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes. It may be
toxic.
Do not discard the UPS or the UPS batteries in the trash. This product contains sealed, lead acid batteries andmust
be disposed of properly. For more information, contact your local recycling/reuse or hazardous wastecenter.
