6 Interfaces and communication

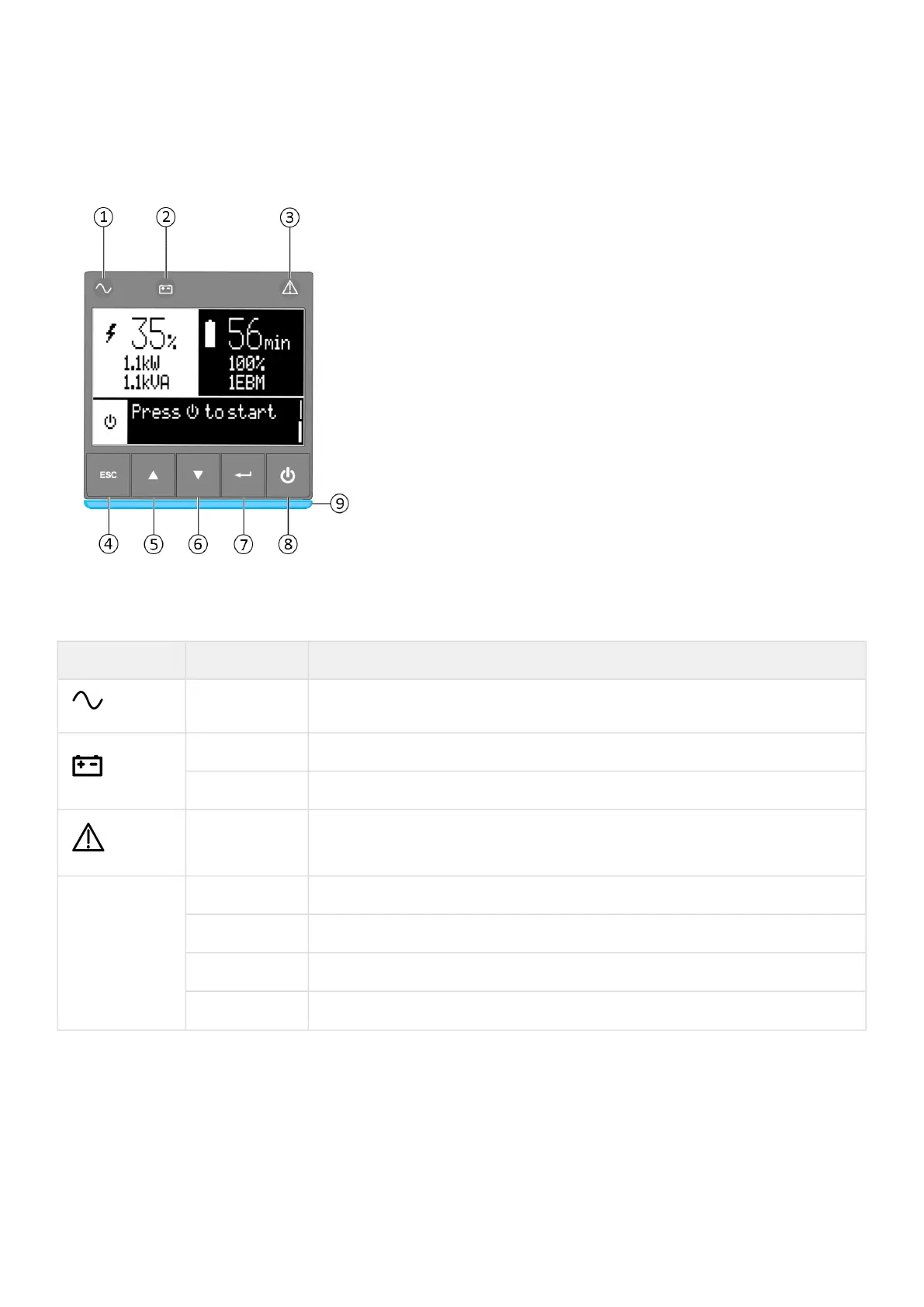

6.1 Control panel
The screen provides useful information about the UPS itself, load status,events, measurements and settings.
The LED bar ⑨ has been implemented to provide a quick visual reference of UPS status "at-a-glance".
① Power ON indicator (green)
② On battery indicator (orange)
③ Alarm Indicator (red)
④Escape
⑤ Up
⑥ Down
⑦ Enter
⑧ On/Off button
⑨ Led bar
Led indicator
The following table shows the indicator status and description :
Indicator Status Description
Green
On The UPS is "On" and the load is protected.
Orange
On The UPS is in battery mode and the load is protected.
Flashing The battery voltage is below the warning level.
Red
On
The UPS has an active alarm or fault. See troubleshooting page for additional
information.
Led bar
Static blue The UPS is "On" and the load is protected.
Flashing blue The UPS is on battery or the battery service age warning is reached.
Static red The UPS has an active alarm or fault.
Flashing red The UPS output has stopped due to a fault.
