UPS Installation Plan and Unpacking
Eaton 9E UPS (40–60 kVA, 208/220V) Installation and Operation Manual P-164000058—Rev 4 www.eaton.com/powerquality 3-5

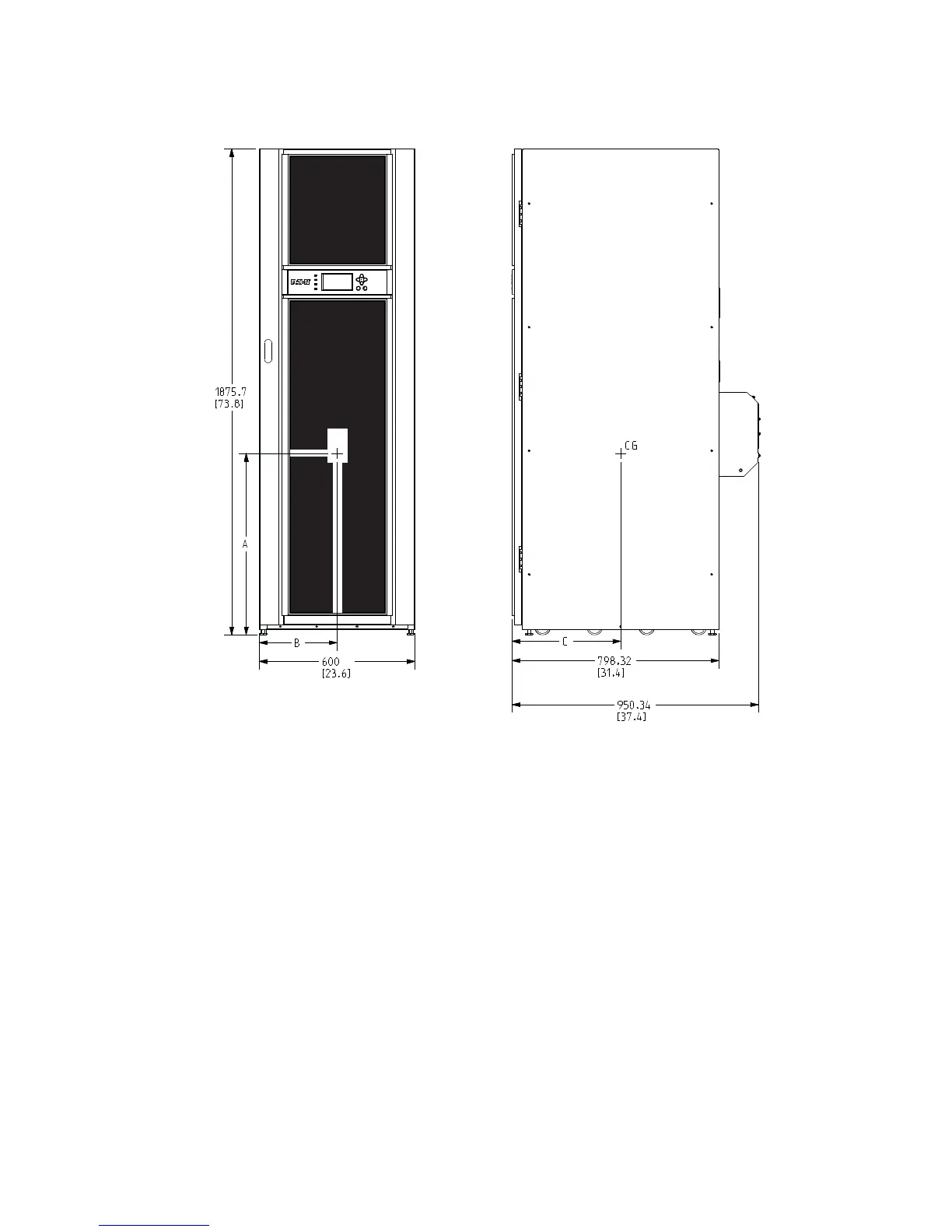

Figure 3-3. UPS Cabinet Center of Gravity
CG
Dimensions are in millimeters [inches]
Weight and Center of Gravity
ABC
Weight
kg (lb)
With Batteries (9E-40 – 6 Strings) 815 (32.1) 300 [11.8] 399 (15.7) 590 (1301)
With Batteries (9E–60/40 and 9E–60/60 – 8 Strings) 785 [30.9] 300 [11.8] 399 [15.7] 680 (1499)
Without Batteries 985 [38.8] 300 [11.8] 399 [15.7] 320 (705)
