6 Eaton Ferrups FX UPS P-164000906 Eaton Ferrups FX User’s Guide P-164000906—Rev 05
22..33 BByyppaassss SSwwiittcchheess
Because the Eaton Ferrups FX UPS can be hardwired, a BPE bypass switch can provide a means of directly
connecting utility power to IT equipment. Bypass switch functionality helps keep critical loads running even in
the event of scheduled UPS preventive maintenance, a service event or failure.
Bypass switches come in two types Make Before Break, Break Before Make types. See Table 2 and Table 3 .
Table 2. Available Make Before Break Bypass Switch Models
Model Number
Ratings (UL/CSA) Continuous
Ratings (TÜV) Continuous
BPEFXMBB02 40A/300 Vac 50A/300 Vac
BPEFXMBB04 80A/300 Vac 80A/300 Vac
BPEFXMBB05 104A/300 Vac 120A/300 Vac
Table 3. Available Break Before Make Bypass Switch Models
Model Number
Ratings (UL/CSA) Continuous
Ratings (TÜV) Continuous
BPEFXBBM02 40A/300 Vac 50A/300 Vac
BPEFXBBM04 80A/300 Vac 80A/300 Vac
BPEFXBBM05 104A/300 Vac 120A/300 Vac
22..44 OOuuttppuutt RReecceeppttaacclleess
Different user replaceable receptacle panel options are available for the Eaton Ferrups FX UPS. Consult your dealer or Eaton for
compatibility with your UPS. See Figure 3

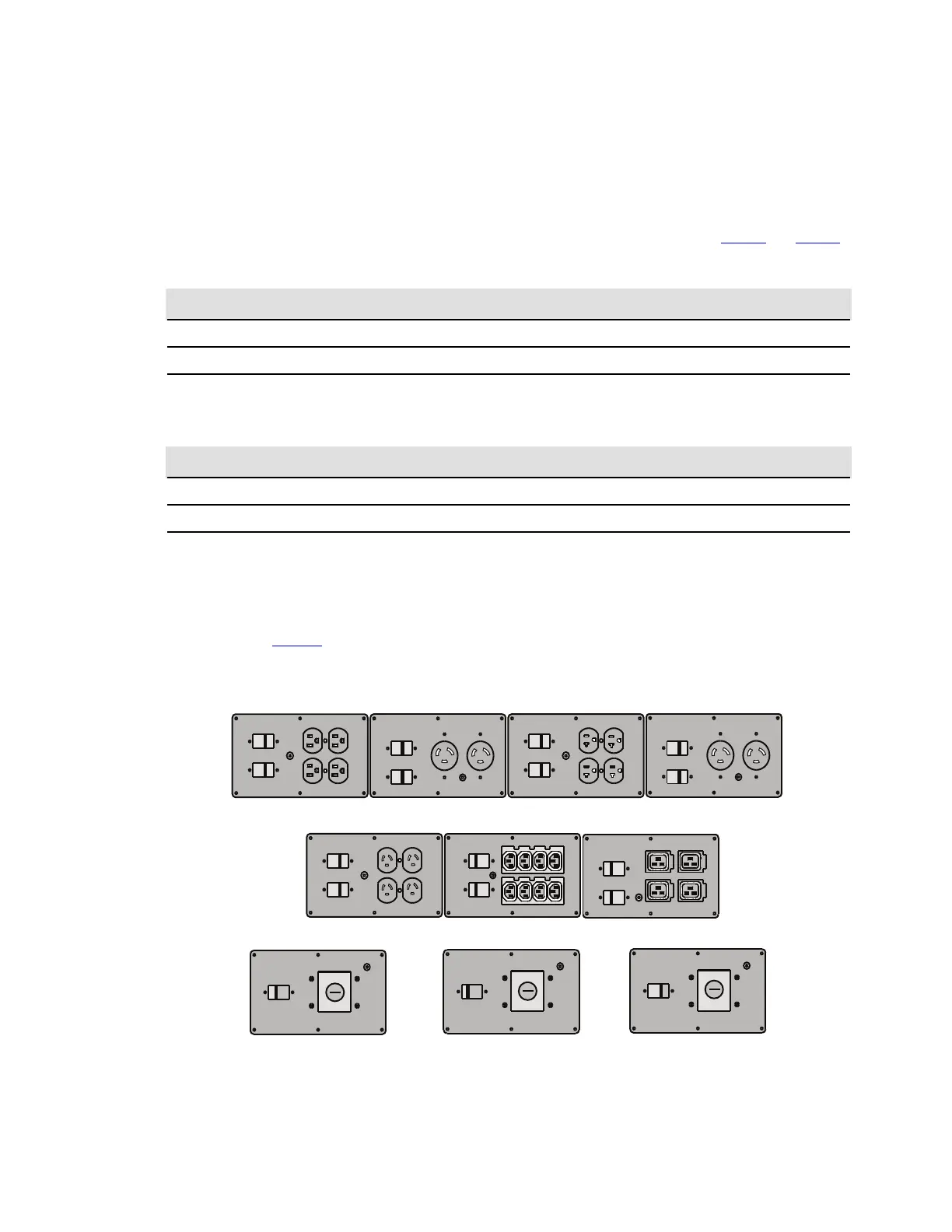

Figure 3. 120 Vac Receptacle Panel Options
NEMA 5-15 Duplex NEMA 5-20 DuplexNEMA L5-20 NEMA L5-30
NEMA L5-15 Duplex NEMA C-13 NEMA C-19
3P TB L/N/G w/ 1P 15A CB
3P TB L/N/G w/ 1P 20A CB
3P TB L/N/G w/ 1P 30A CB
