Eaton Ferrups FX UPS P-164000906 Eaton Ferrups FX User’s Guide P-164000906—Rev 05 75
1122..33 UUPPSS WWeeiigghhttss aanndd DDiimmeennssiioonnss
Table 33. UPS Dimensions and Weights
Model
Dimensions (H X W X D)
Weight
FX3100
23.34” x 15.19” x 29.48”
(592.73 x 385.8 x 748.79 )
144 lb Without Internal Battery
248 lb With Internal Battery

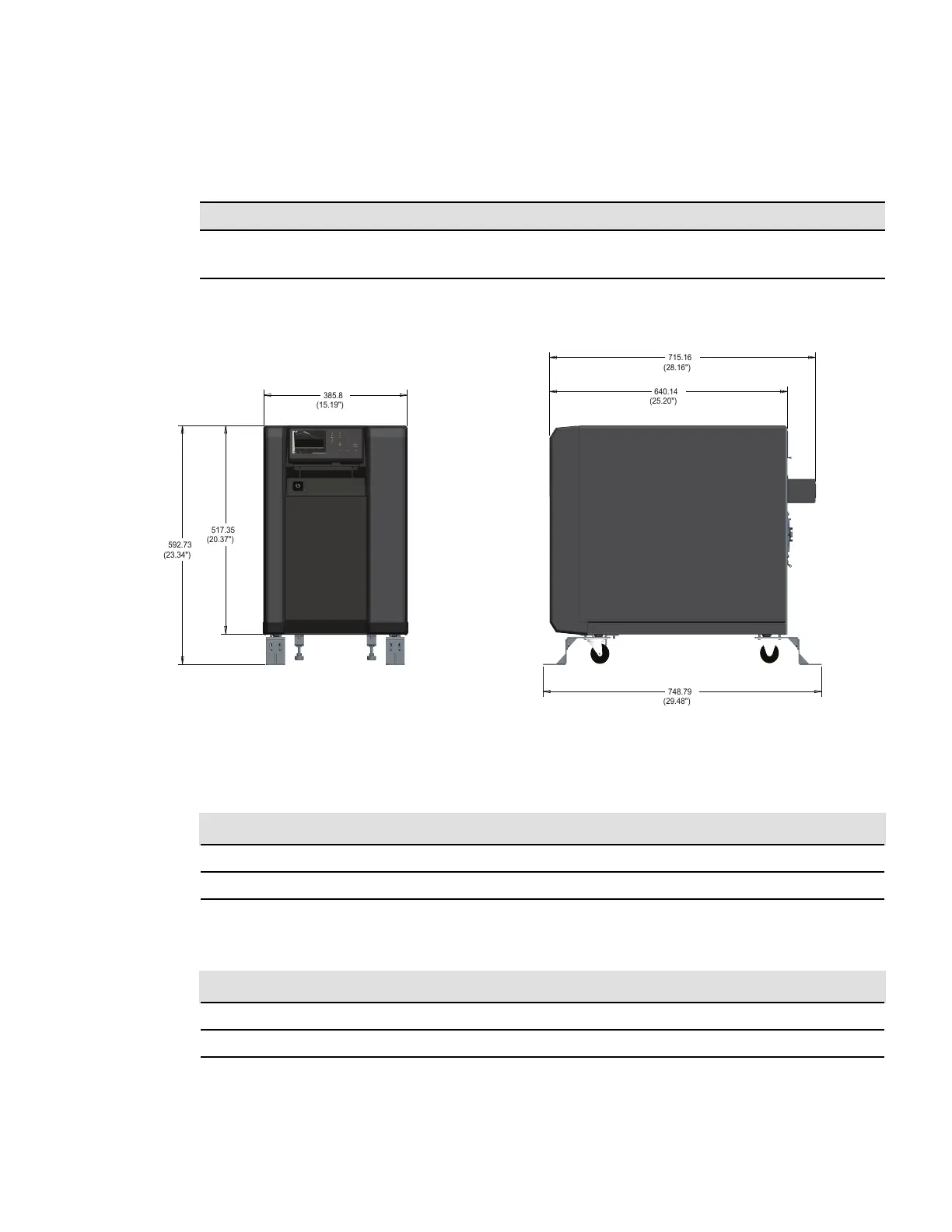

Figure 19. UPS Overall Dimensions
385.8
(15.19")
640.14
(25.20")
748.79
(29.48")
592.73
(23.34")
517.35
(20.37")
715.16
(28.16")
1122..44 BByyppaassss SSwwiittcchheess
Table 34. Available Make Before Break Bypass Switch Models
Model Number
Ratings (UL/CSA) Continuous
Ratings (TÜV) Continuous
BPEFXMBB02 40A/300 Vac 50A/300 Vac
BPEFXMBB04 80A/300 Vac 80A/300 Vac
BPEFXMBB05 104A/300 Vac 120A/300 Vac
Table 35. Available Break Before Make Bypass Switch Models
Model Number
Ratings (UL/CSA) Continuous
Ratings (TÜV) Continuous
BPEFXBBM02 40A/300 Vac 50A/300 Vac
BPEFXBBM04 80A/300 Vac 80A/300 Vac
BPEFXBBM05 104A/300 Vac 120A/300 Vac
UPS Weights and Dimensions
