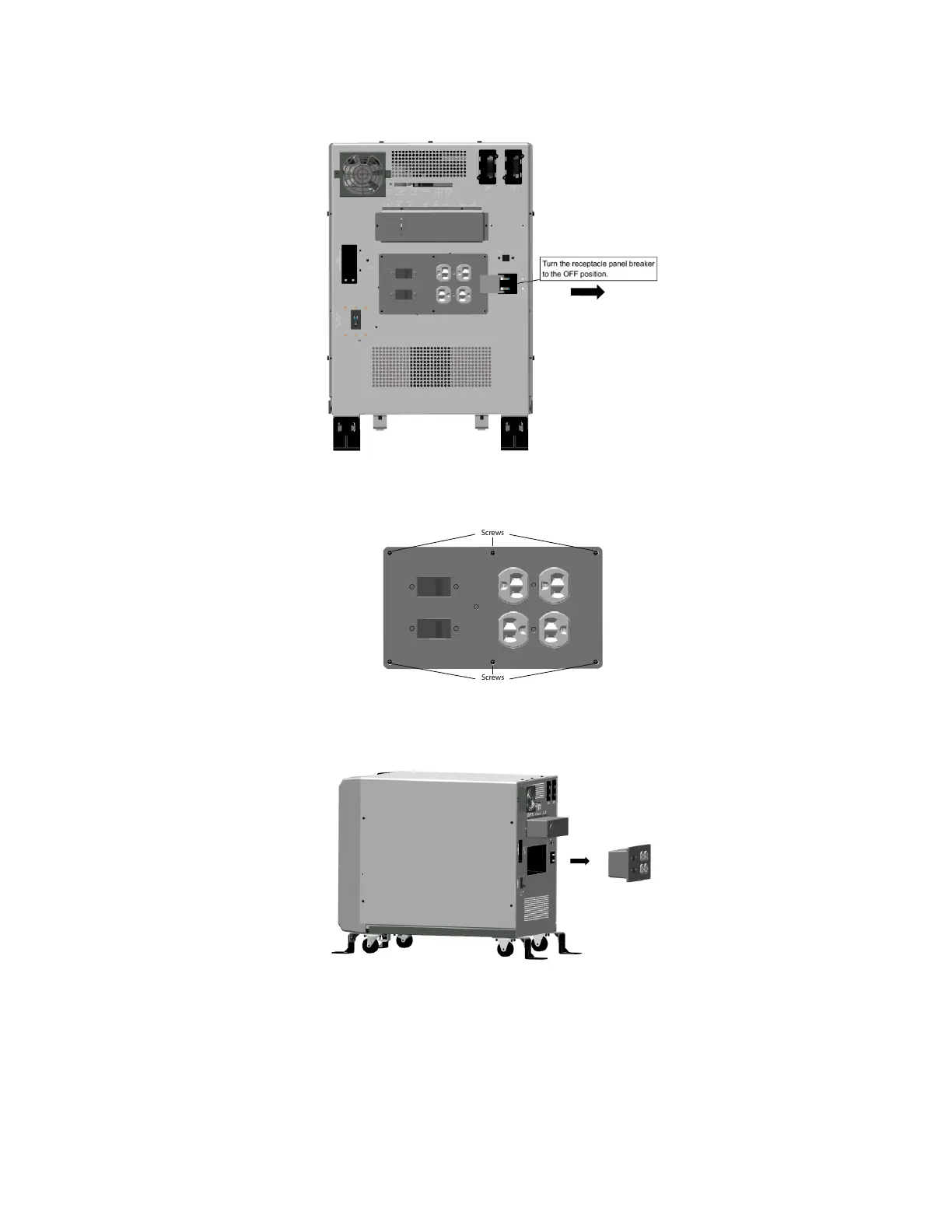

2. Remove the screws that hold the receptacle panel in place.
+ + +
+ ++
Screws
Screws
3. Grasp the receptacle panel from both sides and pull the assembly straight out from the back of the unit.
Installation of a Replacement Receptacle Panel.
1. Insert the new receptacle panel assembly into the back of the unit. Ensure that the panel fits tight to the
back panel of the UPS and that the screw holes are in line.
Receptacle Panel Replacement
