EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
Kit No. 990718-000 24Vdc Solenoid Control with
Swashplate Feedback Sensor 14 pin Metri-Pack™
Connector
ITEM PART NO. QTY DESCRIPTION
6 110114-000 1 Subassembly includes:
111406-024* 1 24Vdc Coil Subassembly
108724-000* 1 Proportional Solenoid Cartridge
7 108876-000 1 Control Gasket
8 95912-125 4 Cap Screw SOC HD 5/16-18 GR 8
9 95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
990719-000 1 Swashplate Sensor Kit
92 109195-000 1 Feedback Shaft Subassembly
93 8761-010 1 O-Ring
94 109196-000 1 Hollow Dowel
Kit No. 990693-000 SF 12 Vdc Control with
Swashplate Feedback Sensor 14 pin Metri-Pack™
Connector
ITEM PART NO. QTY DESCRIPTION
6 109124-000 1 Subassembly includes:
111406-012* 1 12Vdc Coil Subassembly
108724-000* 1 Proportional Solenoid Cartridge
7 108876-000 1 Control Gasket
8 95912-125 4 Cap Screw SOC HD 5/16-18 GR 8
9 95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
990719-000 1 Swashplate Sensor Kit
92 109195-000 1 Feedback Shaft Subassembly
93 8761-010 1 O-Ring
94 109196-000 1 Hollow Dowel
* Can be purchased separately
Kit No. 990863-000 Solenoid 12Vdc Control
W/Swashplate Feedback Sensor (DIN 43650)
ITEM PART NO. QTY DESCRIPTION
6 113226-012 1 Solenoid (12V W/ Feedback Sensor)
111406-012* 1 12Vdc Coil Subassembly
108724-000* 1 Proportional Solenoid Cartridge
7 108992-000 1 Control Gasket (Man/Sol)
8 95912-125 2 Cap Screw SOC HD 5/16-18 GR 8
9 95912-175 3 Cap Screw SOC HD 5/16-18 GR 8
90 95897-008 2 Washer
92 109195-000 1 Feedback Shaft S/A
93 8761-010 1 O-Ring
94 109196-000 1 Hollow Dowel
88 113334-001 1 Feedback Sensor, Non-Contact
89 95890-150 2 Screw, Socket Head Cap 8-32 UNC
91 8761-116 1 O-Ring
130 101673-025 1 Screw, Cap Soc Hd 10-24 UNC
Kit No. 990719-000 Swashplate Sensor Kit
ITEM PART NO. QTY DESCRIPTION
88 107851-000 1 Swashplate Sensor
89 16040-208 2 SF Head Machine Screw 8-32 UN
90 95897-008 2 Washer
91 107762-000 1 Swashplate Gasket
(Item 6)
Solenoid Coil Subassembly
Solenoid Tube Subassembly

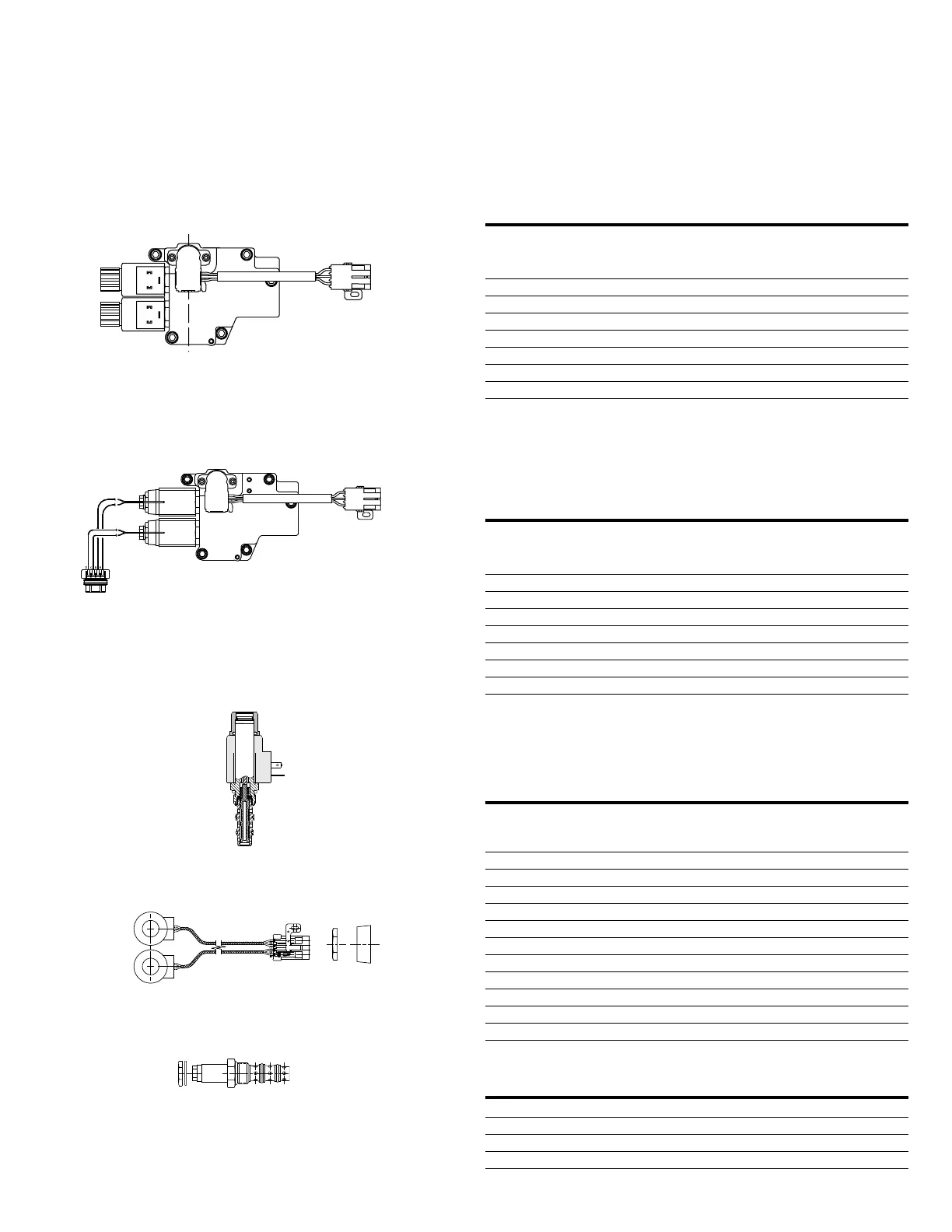

Table 5.4 Solenoid Control Kits
Solenoid Control
W/ Swashplate Feedback Sensor
“SE” is 12 Volt with connectors
per DIN 43650
12 or 24 volt with 4 pin
Metri-Pack™ connector
Proportional Solenoid
Cartridge Valve
Parts List
Control Sub-assemblies
