EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
EP Control Valve Kit with electronic module 1-
6 V Input, 12/24 V
Kit No. 9900040-000 Code”EE”
ITEM PART NO. QTY. DESCRIPTION
129 111520-016 1 Electronic Module
130 101673-175 3 10-24 Button Head Cap Screw
131 16045-203 3 #10 Lockwasher
9 95912-200 5 5/16"-18 Hex Head Cap Screw - 2.75"
6 4993054-012 1 Valve Assembly(includes Solenoid
Coil and Tube Subassemblies)
111501-000 2 Solenoid Tube Subassembly
114241-012 1 12 V Solenoid Coil and Wiring Harness
7 110003-000 1 Control Valve Gasket
*Includes necessary O-Rings.
EP Control Valve Kit with Electronic Module
±4-20mA Input, 12/24 V
Kit No. 9900042-000 Code “EG”
ITEM PART NO. QTY. DESCRIPTION
129 111520-020 1 Electronic Module
130 101673-175 3 10-24 Button Head Cap Screw
131 16045-203 3 #10 Lockwasher
4 95912-200 5 5/16"-18 Hex Head Cap Screw - 2.75"
6 4993054-012 1 Valve Subassembly (includes Solenoid
Coil and Tube Subassemblies)
114241-012 1 12 V Solenoid Coil and Wiring Harness
111501-000 1 Solenoid Tube and O-Rings
7 110003-000 1 Control Valve Gasket
EP Control Valve Kit with no Electronics, 12V
Kit No. 9900043-000 Code “EC”
ITEM PART NO. QTY DESCRIPTION
4 95912-200 5 5/16"-18 Hex Head Cap Screw - 2.75"
6 4993054-012 1 Valve Subassembly (includes Solenoid
Coil and Tube Subassemblies)
114241-012 1 12 V Solenoid Coil and Wiring Harness
111501-000 1 Solenoid Tube and O-Rings
7 110003-000 1 Control Valve Gasket
EP Control Valve Kit with no Electronics, 24 V
Kit No. 9900044-000 Code “ED”
ITEM PART NO. QTY DESCRIPTION
4 95912-200 5 5/16"-18 Hex Head Cap Screw - 2.75"
6 4993054-024 1 Valve Subassembly (includes Solenoid
Coil and Tube Subassemblies)
114241-024 1 24 V Solenoid Coil and Wiring Harness
111501-000 1 Solenoid Tube and O-Rings
7 110003-000 1 Control Valve Gasket
Parts are included in kit and may be purchased separately.
Table 6.0 Electronic Proportional (EP) Displacement Control Valve Kits

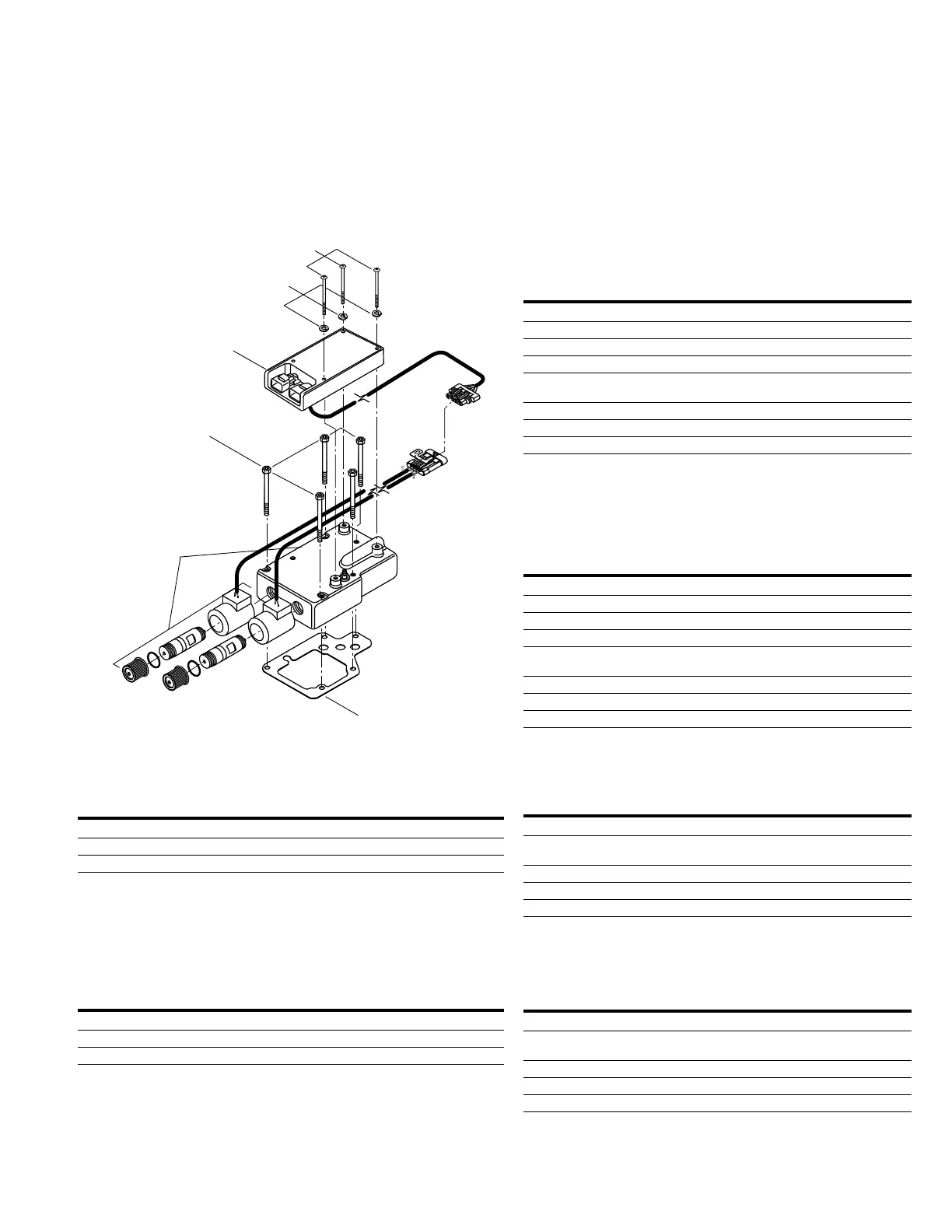

EP Control Assembly
(includes solenoid and
Coil Subassemblies
9
7
6
129
131
130
Parts List
Electronic
Proportional (EP)
Control
EP Control Electronic Module 1-6V Input
Kit No.990830-000
ITEM PART NO. QTY DESCRIPTION
129 111520-016 1 Electronic Module
130 101673-175 3 10-24 Button Head Cap Screw
131 16045-203 3 #10 Lockwasher
EP Control Electronic Module ±4-20mA Input
Kit No. 990832-000
ITEM PART NO. QTY DESCRIPTION
129 111520-020 1 Electronic Module
130 101673-175 3 10-24 Button Head Cap Screw
131 16045-203 3 #10 Lockwasher
