EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
1
3
4
5
Barrel Kit
Rotating Group Kit
6
7
8
9
10
B
A
2
Note:
When overhauling rotating and
swashplate sub-assemblies,
piston and shoe sub-assemblies
must be replaced with new parts.
(Item 12)
Standard
Shoe
Wide Land
Shoe
*Optional
See Note
Models 3322/3922
Complete Rotating/Swashplate
Kit No. 109752-000
ITEM PART NO. QTY. DESCRIPTION
A 110428-000 1 Rotating Group Kit (includes items B, 7
and 8)
B 990730-000 1 Barrel Kit (includes items 1 through 5)
1 103278-200 1 Retaining Ring
2 103242-000 1 Spacer Cyl Barrel Spring
3 103240-000 1 Cylinder Barrel Spring
4 107758-000 1 Spacer Shaft Spring
5 109427-000 1 Barrel and Sleeve
6 990723-000 1 Hold-down Kit
7 103244-000 1 Shoe Retainer Plate
8 101073 -000 9 Shoe Piston Subassembly
9 107854-000 1 Fixed Clr Thrust Plate
10 109366-000 1 Swashplate Subassembly
Model 4622
Complete Rotating/Swashplate
Kit No. 109367-000
ITEM PART NO. QTY. DESCRIPTION
A 109419-000 1 Rotating Group Kit (includes items B, 7
and 8)
B 990731-000 1 Barrel Kit (includes items 1 through 5)
1 103278-200 1 Retaining Ring
2 103242-000 1 Spacer Cyl Barrel Spring
3 103240-000 1 Cylinder Barrel Spring
4 107758-000 1 Spacer Shaft Spring
5 109418-000 1 Barrel and Sleeve
6 990723-000 1 Hold-down Kit
7 104211-000 1 Shoe Retainer Plate
8 104199-000 9 Shoe Piston Subassembly
9 107854-000 1 Fixed Clr Thrust Plate
10 109366-000 1 Swashplate Subassembly
Model 5422
Complete Rotating/Swashplate
Kit No. 108424-000
ITEM PART NO. QTY. DESCRIPTION
A 109431-000 1 Rotating Group Kit (includes items B, 7
and 8)
B 990732-000 1 Barrel Kit (includes items 1 through 5)
1 103278-225 1 Retaining Ring
2 103815-000 1 Spacer Cyl Barrel Spring
3 103813-000 1 Cylinder Barrel Spring
4 108337-000 1 Spacer Shaft Spring
5 109430-000 1 Barrel and Sleeve
6 990724-000 1 Hold-down Kit
7 103853-000 1 Shoe Retainer Plate
8 101077-000 9 Shoe Piston Subassembly
9 108341-000 1 Fixed Clr Thrust Plate
10 109254-000 1 Swashplate Subassembly
Model 6422
Complete Rotating/Swashplate
Kit No. 109435-000
ITEM PART NO. QTY. DESCRIPTION
A 109434-000 1 Rotating Group Kit (includes items B, 7
and 8)
B 990733-000 1 Barrel Kit (includes items 1 through 5)
1 103278-225 1 Retaining Ring
2 103815-000 1 Spacer Cyl Barrel Spring
3 103813-000 1 Cylinder Barrel Spring
4 108337-000 1 Spacer Shaft Spring
5 109433-000 1 Barrel and Sleeve
6 990724-000 1 Hold-down Kit
7 103817-000 1 Shoe Retainer Plate
8 103818-000 9 Shoe Piston Subassembly
9 108341-000 1 Fixed Clr Thrust Plate
10 109254-000 1 Swashplate Subassembly

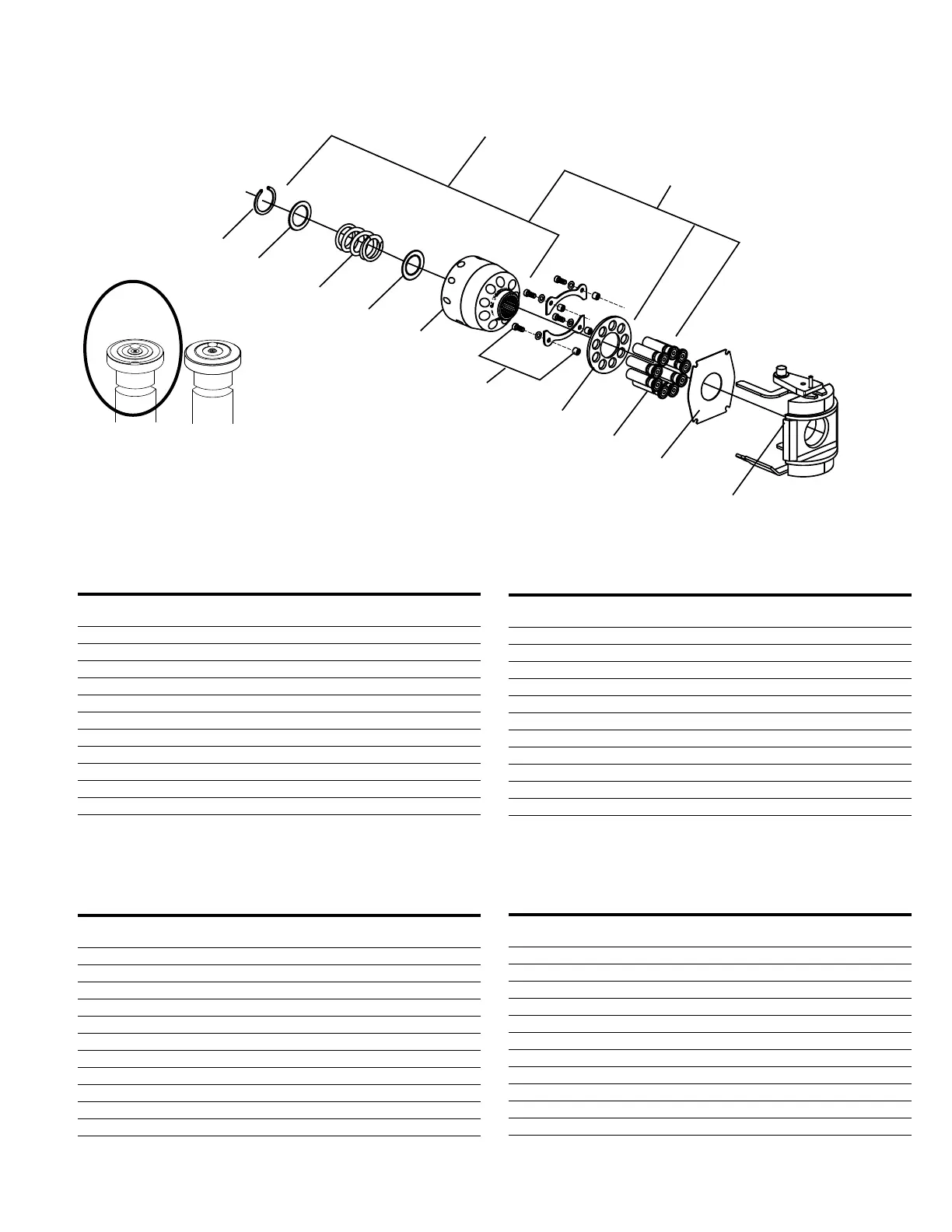

Table 7.0 Rotating Group/Swashplate Sub-assembly(Standard Shoe)
Parts List
Rotating Group/
Swashplate Sub-assembly
(Standard Shoe)
