EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004

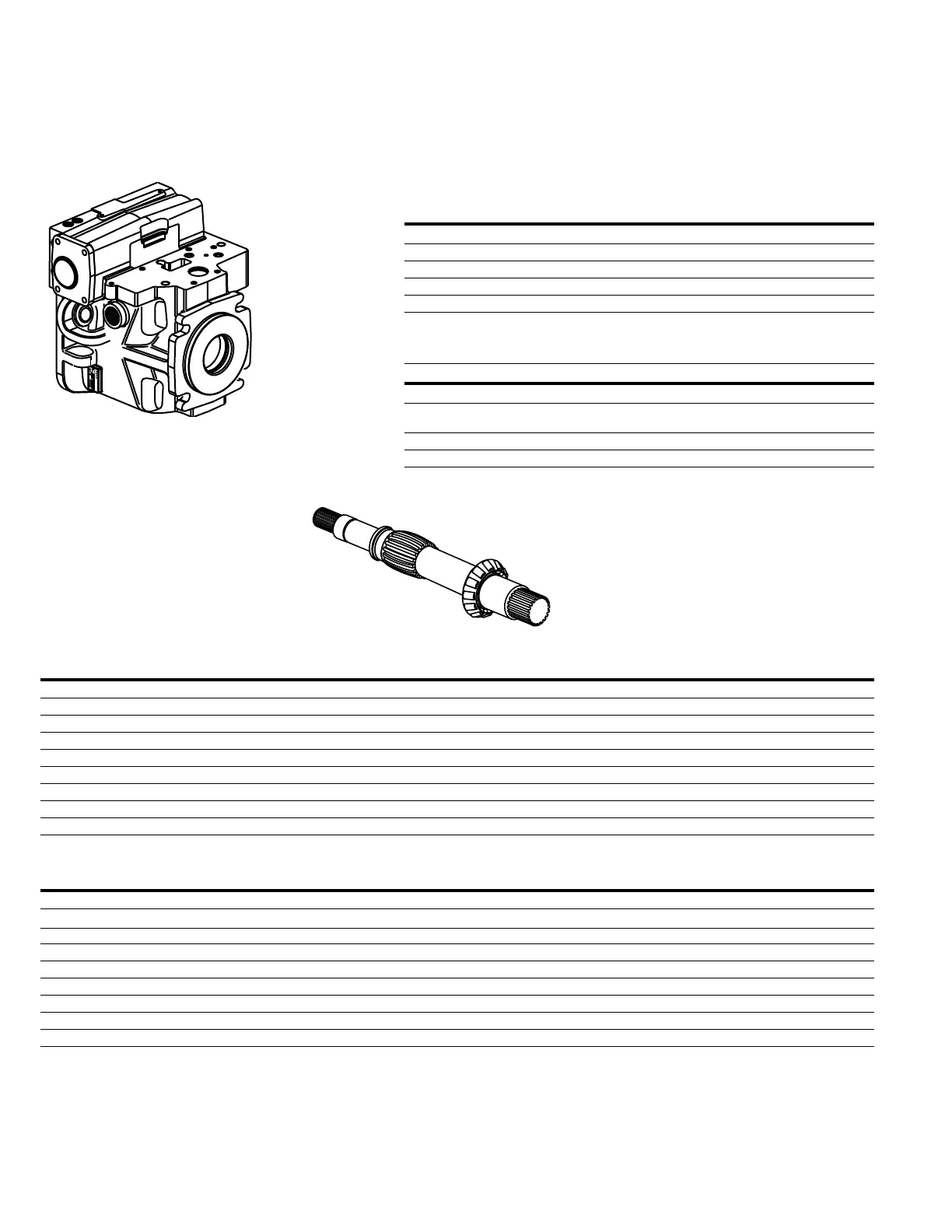

Table 2.0 Main Housing
Models 3322/3922/4622
PART NO. QTY. DESCRIPTION
111813-000 1 Main Housing
111811-000 1 Main Housing, Pressure Override
111812-000 1 Main Housing, Speed Sensor
111810-000 1 Main Housing with Pressure Override and Speed Sensor
114192-000 1 Main Housing, No POR, Metric Ports
Models 5422/6422
PART NO. QTY. DESCRIPTION
111817-000 1 Main Housing, No POR, No Speed Sensor Port
111816-000 1 Main Housing, Pressure Override,
No Speed Sensor Port
111815-000 1 Main Housing, Speed Sensor Port, No POR
111814-000 1 Main Housing, Pressure Override and Speed Sensor
(Item 1)
Drive Shaft
Subassembly
(Item 2)
Table 3.0 Drive Shaft Subassembly
Models 3322/3922/4622 (54, 64, 75 cc/rev.)
BEARING RETAINING
SUBASSEMBLY SHAFT CONE RING DESCRIPTION
108029-000 108028-000 103227-000 103222-188 23 Tooth 16/32 Pitch Spline
108625-000 108624-000 103227-000 103222-188 14 Tooth 12/24 Pitch Spline
108646-000 108645-000 103227-000 103222-188 21 Tooth 16/32 Pitch Spline
109738-000 109737-000 103227-000 103222-188 23 Tooth 16/32 Pitch Spline 3/8-24 UNF 2B Tapped
113718-000 113717-000 103227-000 103222-188 14 Tooth 12/24 Pitch Spline Front of Tandem
113720-000 113719-000 103227-000 103222-188 27 Tooth 24/48 Pitch Spline
114681-000 114680-000 103227-000 103222-188 1.500” Taper With 3/8 Square Key
4992795-001 4992794-001 103227-000 103222-188 1.375” Taper With 3/8 Square Key
4998310-001 4998309-001 103227-000 103222-188 14 Tooth 24/48 pitch Spline
Models 5422/6422 (89, 105 cc/rev.)
BEARING RETAINING
SUBASSEMBLY SHAFT CONE RING DESCIPTION
109140-000 109139-000 103808-000 103222-200 14 Tooth 12/24 Pitch Spline
109512-000 109468-000 103808-000 103222-200 21 Tooth 16/32 Pitch Spline 3.22 ext.
110117-000 110116-000 103808-000 103222-200 21 Tooth 16/32 Pitch Spline
110133-000 110132-000 103808-000 103222-200 13 Tooth 8/16 Pitch Spline
112035-000 112034-000 103808-000 103222-200 1.50 Dia. Taper With 3/8 Square Key
112037-000 112036-000 103808-000 103222-200 27 Tooth 24/48 Pitch Spline
114890-000 114889-000 103808-000 103222-200 23 Tooth 16/32 Pitch Spline 3/8-24 UNF 2B Tapped
108382-000 108366-000 103808-000 103222-200 23 Tooth 16/32 Pitch Spline
4992795-001 4992794-001 103227-000 103222-188 1.50 Dia. Taper With .375” x 1” Square Key
* Includes 103227 Pressed Bearing Cone and 103222-188 Retaining Ring
** Includes 103808 Pressed Bearing Cone and 103222-200 Retaining Ring
Note: Bearing Cup must be replaced with shaft and new bearing cone.
*Note: Bearing cup must be
replaced with shaft
and new bearing cone
Parts List
Main Housing
