EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
Table 18.0 Repair Gasket Kit
Kit No. 990710-000
ITEM PART NO. QTY. DESCRIPTION
5 108480-000 1 End Cover Gasket (Models 33/39/46)
5 108974-000 1 End Cover Gasket (Models 54/64)
7 110003-000 1 EP Control Gasket
7 108992-000 1 Manual Control Gasket
7 108879-000 1 Solenoid Control Gasket
15 B 8761-042 2 O-Ring A Pad(cust)
15 B 8761-045 2 O-Ring B-Pad(cust)
15 B 8761-158 1 O-Ring C-Pad(cust)
15 C 8761-157 1 O-Ring Pad
(charge cover)
15 C 8761-158 1 O-Ring Pad
(charge cover)
15-2 103223-000 4 Sealing Washer
15-4 8761-156 1 Charge Cover O-Ring
ITEM PART NO. QTY. DESCRIPTION
15-4 8761-157 1 Charge Cover O-Ring
26 16254-8 1 Thread Seal
27 8761-144 2 O-Ring (Models 33/39/46)
27 8761-157 2 O-Ring (Models 54/64)
28 108300-000 2 Ring Seal (Models 33/39/46)
108915-000 2 Ring Seal (Models 54/64)
32 8761-139 2 O-Ring (Models 33/39/46)
8761-145 2 O-Ring (Models 54/64)
49 8785-012 2 O-Ring
57 110457-000 4 Static Face Seal
59 8761-017 2 O-Ring
60 108562-000 2 Back-up Ring
87 8761-016 1 Speed Sensor O-Ring
91 107762-000 1 Swashplate Gasket
93 8761-010 1 Swashplate O-Ring
Parts List
Kits

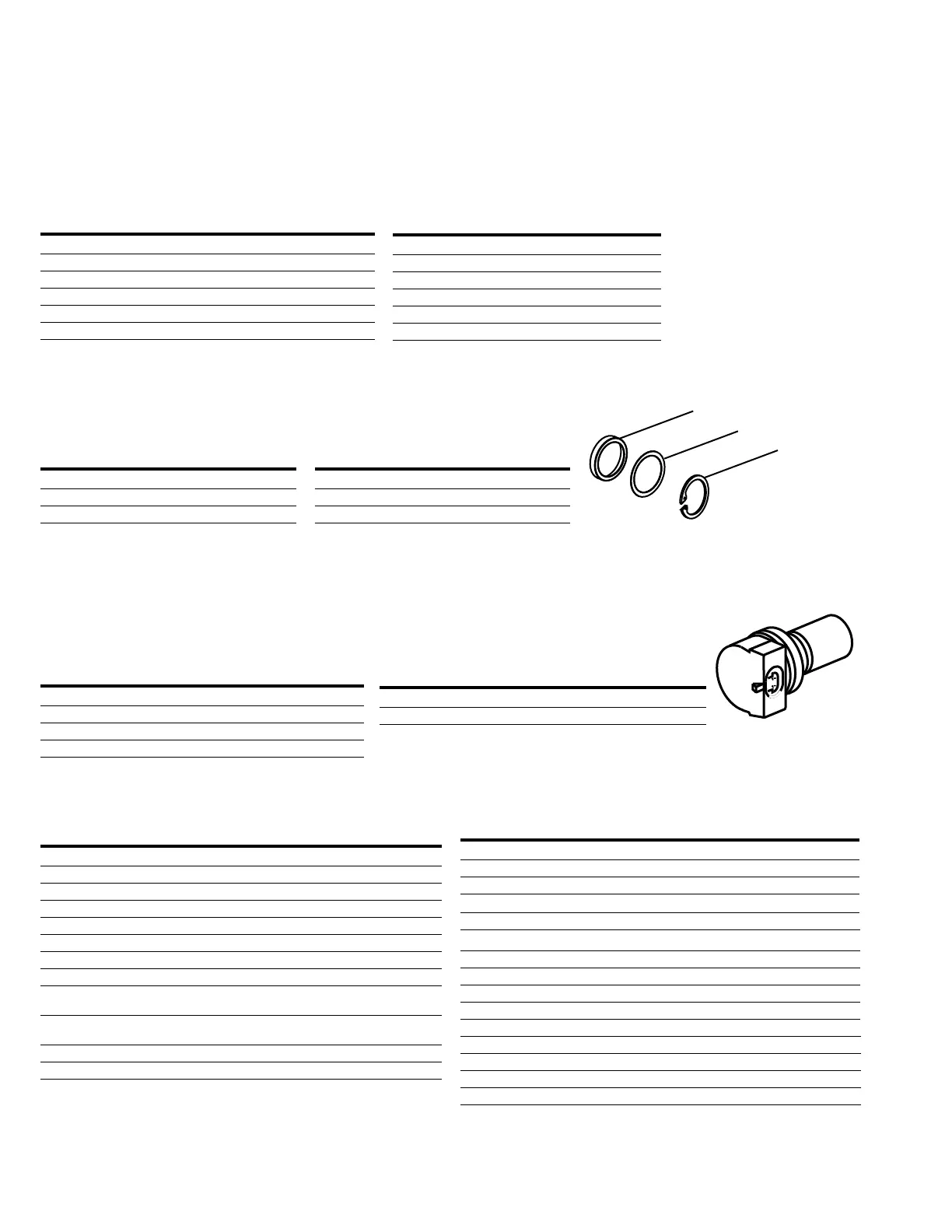

Table 16.0 Shaft Seal Kits
(Item 116)
Models 3322/3922/4622
Seal Kit No. 990709-000
PART NO. QTY. DESCRIPTION
108395-000 1 Drive Shaft Seal
101680-250 1 Retaining Ring
107836-000 1 Spacer
Models 5422/6422
Seal Kit No. 990753-000
PART NO. QTY. DESCRIPTION
110192-000 1 Drive Shaft Seal
101680-250 1 Retaining Ring
107836-000 1 Spacer
Drive Shaft Seal
Retaining Ring
Spacer
Table 15.0 End Cover
Bearing Shim Kit (Item 41)
Models 3322/3922/4622
Kit No. 990715-000
PART NO. QTY. DESCRIPTION
107744-003 1 Bearing Shim
107744-005 1 Bearing Shim
107744-010 1 Bearing Shim
107744-015 1 Bearing Shim
107744-020 1 Bearing Shim
107744-030 1 Bearing Shim
Table 17.0 Magnetic Speed Sensor Kit
(Item 85)
Magnetic Speed Sensor
Kit No.990745-000
PART NO. QTY. DESCRIPTION
4997282-001 1 Magnetic Speed Sensor
16160-125 1 Retaining Ring
8761-016 1 O-Ring
108307-000 1 Plug
Speed Sensor Mating Connector Kit
Kit No. 990766-000
PART QTY. DELPHI PACKARD P/N
Connector 1 1216-2193
Terminal 2 1212-4075
Recommended wire size: 16 - 18 AWG
Recommended cable diameter: 2.0 - 2.4 mm
Alternate reference source:
Power and Signal Group North American Headquarters
1-800-722-5273
www.powerandsignal.com/netstore/start
Models 5422/6422
Kit No. 990388-000
PART NO. QTY. DESCRIPTION
103798-003 1 Bearing Shim
103798-005 1 Bearing Shim
103798-010 1 Bearing Shim
103798-015 1 Bearing Shim
103798-020 1 Bearing Shim
103798-030 1 Bearing Shim
