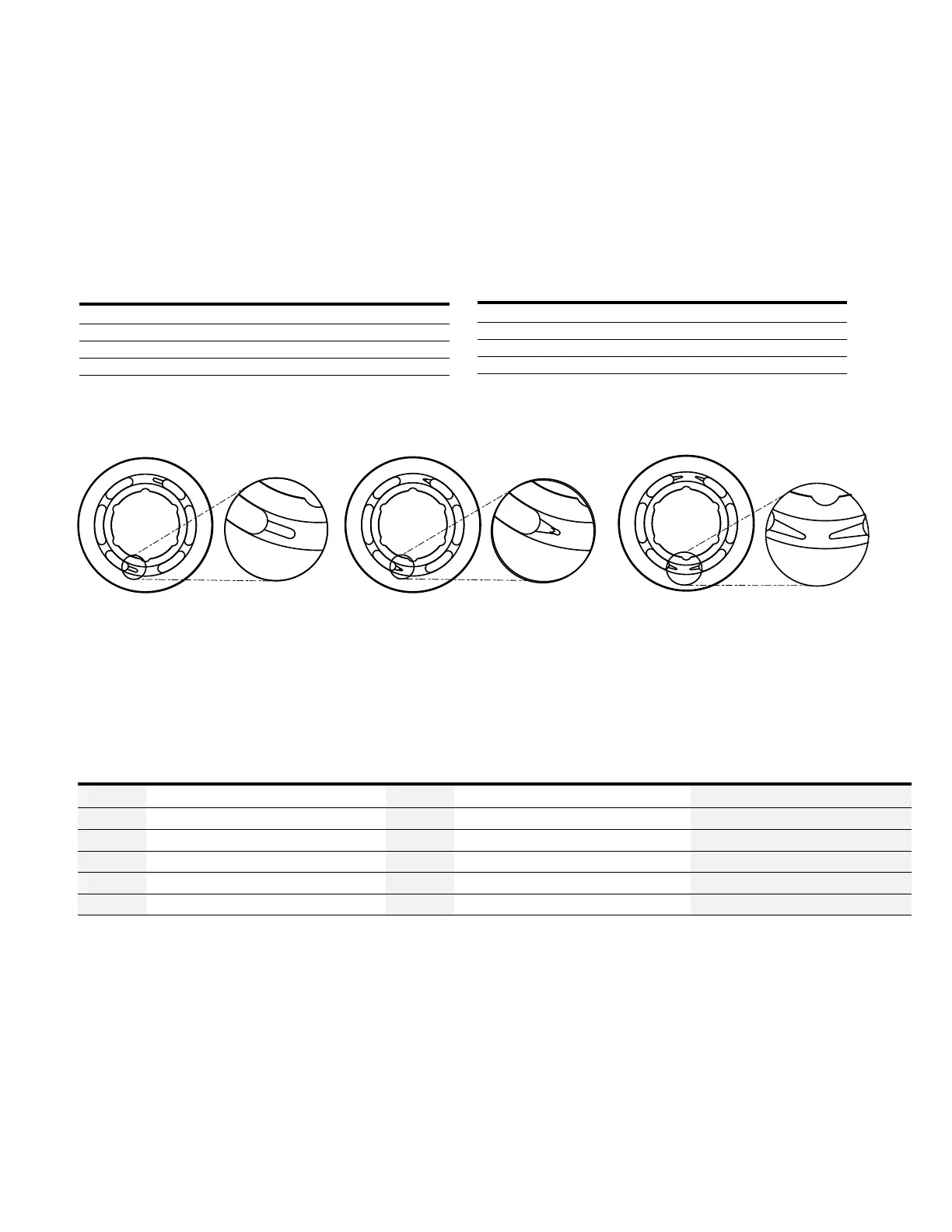

EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
Table 9.0 Valve Plate
(Item 17)
MODEL 3322/3922 MODEL 4622 MODEL 5422 MODEL 6422
PART NO. PART NO. PART NO. PART NO. DESCRIPTION
107224-000 107784-000 103848-000 103976-000 Propel Valve Plate (Counterclockwise)
106458-000 106459-000 104297-000 103950-000 Propel Valve Plate (Clockwise)
106988-000 107808-000 104857-000 107143-000 V-Groove Plate (Counterclockwise)
106456-000 106457-000 104964-000 104006-000 V-Groove Plate (Clockwise)
111823-001 4993532-001 4993881-001 114557-000 Quiet Plate (Counterclockwise)
113169-000 113632-000 113148-000 112375-000 Quiet Plate (Clockwise)
Magnified MagnifiedMagnified
Valve Plate
(Item 13)
Table 8.0 Hold-down Kit
Models 3322/3922/4622
Kit No. 990723-000
PART NO. QTY. DESCRIPTION
95912-100 4 Cap Screw 5/16-18
108377-000 4 Washer
107858-000 2 Hold-down Strap
103237-001 4 Spacer
Models 5422/6422
Kit No. 990724-000
PART NO. QTY. DESCRIPTION
95912-125 4 Cap Screw 5/16-18
108377-000 4 Washer
108340-000 2 Hold-down Strap
103237-002 4 Spacer
CW Propel Valve Plate CW V-Groove Plate CW Quiet Plate
Parts List
Hold-down Kits
and Valve Plate
