Instruction Manual IM01005031E - rev.7

Effective December 2020

Eaton www.eaton.com 7

Eaton SPD Series for mounting external

to electrical distribution equipment

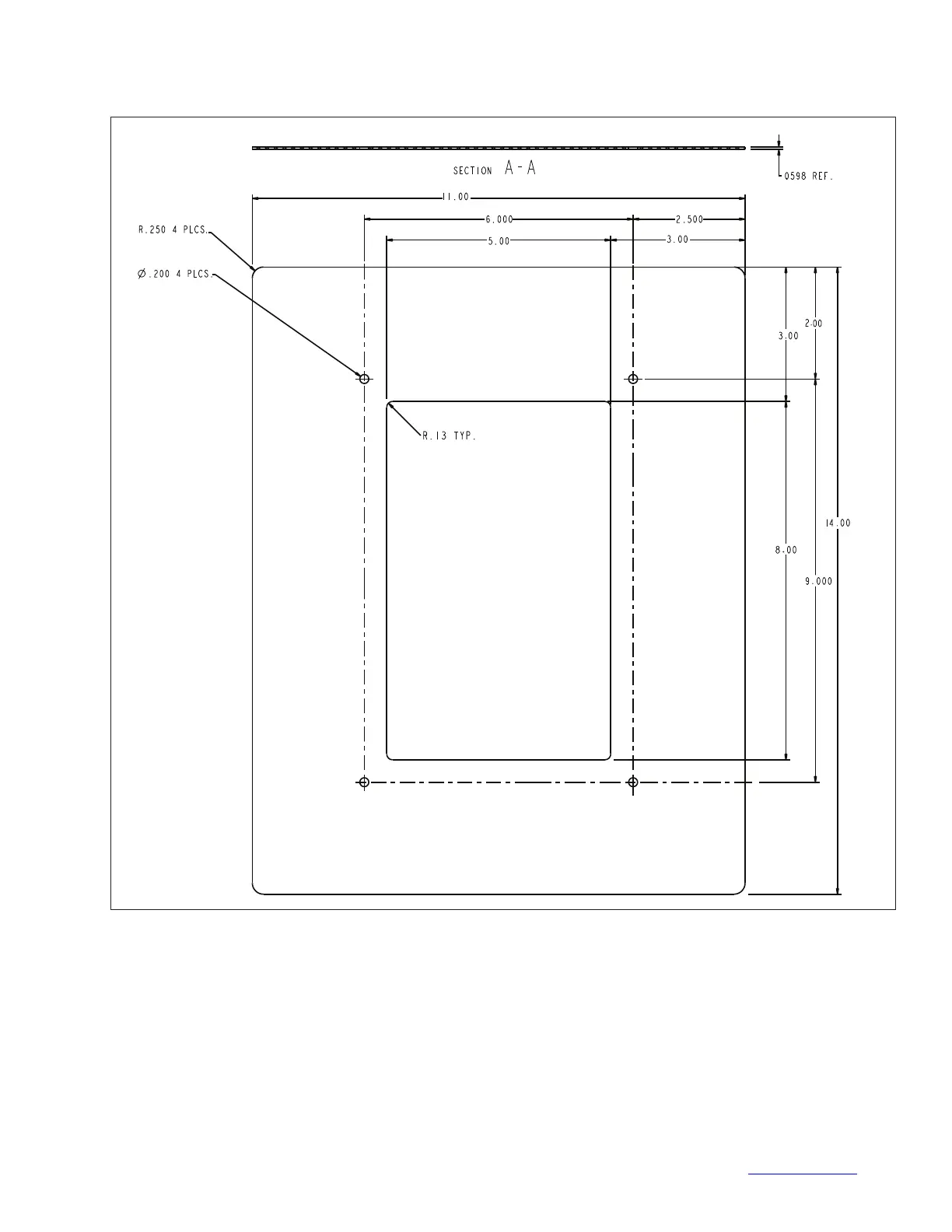

Figure 7. Flush-mount plate for 50-200 kA units in A NEMA 1 rated enclosure Eaton Catalog P/N: SPDGREYFLUSHMTKIT.

Other manuals for Eaton SPD Series

Instruction Leaflet4 pages

Installation Manual68 pages

Questions and Answers:

R
Robert BrownJul 26, 2025
Why are all the LEDs off and the alarm on for my Eaton SPD Surge Protector?
- S
  Sylvia BarnesJul 27, 2025
  This indicates that all phase protection has been compromised or lost. It could also mean the SPD rated voltage is less than the system voltage, or there's an extended Temporary Overvoltage (TOV), or a significant surge event. The suggested solution is to replace the SPD, replace the SPD with the correct voltage model, and check the electrical system for TOV sources; correct, and replace the SPD.
D
Dr. Patricia JohnsonAug 2, 2025
What to do if the green LED is off and the red LED and alarm are on for one phase on my Eaton SPD Surge Protector?
- K
  Karla JohnsonAug 2, 2025
  This indicates the phase protection is compromised or lost due to an Extended Temporary Overvoltage (TOV) or a significant surge event. You should replace the SPD and check the electrical system for TOV sources, correct them, and then replace the SPD.
R
Rodney DavidAug 11, 2025
How to fix Neu/Gnd red LED and audible alarm ON for Eaton Surge Protector?
- J
  Jessica HuntAug 11, 2025
  This indicates that the Neu/Gnd protection is compromised or lost, potentially due to a significant surge event. The suggested solution is to replace the SPD.

Eaton SPD Series Specifications

General

Type	Surge Protective Device
Voltage Rating	120/240V, 208Y/120V, 480Y/277V
Surge Current Capacity	Up to 200kA
Modes of Protection	L-N, L-G, N-G
Operating Frequency	50/60Hz
Certifications	UL 1449
SPD Type	Type 1, Type 2
Maximum Surge Current	Up to 200kA
Nominal Discharge Current (In)	10kA, 20kA
Short Circuit Current Rating (SCCR)	Up to 200kA
Enclosure Type	NEMA 1
Mounting	Panel Mount
Standards	UL 1449, IEEE C62.41
Diagnostics	Visual Indicators
Remote Monitoring	Optional
Maximum Discharge Current (Imax)	Up to 200kA
