Wait for the computer to connect to the device, after the connection is completed, the device's LINK light is always on,
indicating that the station is connected to the network；
4.4 ZigBee quickly builds the network
In order to allow users to quickly familiarize themselves with the station, this section will guide users to build a ZigBee network with
simple configuration in combination with the host computer, including node type configuration, PANID settings, channel settings, and
transmit power settings
。
When using the ZigBee 3.0 host computer, our radio must be in TCP server (TCP Server) mode, otherwise the radio cannot connect to the
host computer!!
4.4.1 Preparations
Before setting up a ZigBee network, we need to configure the network parameters of the station. We prepare 2~3 sets of equipment, here
choose 3 E18-DTU (Z27-ETH) radios, users can also choose to use 1 E18-DTU (Z27-ETH) radio, the rest choose our E18 series, E180 series
modules for testing
。
We use 3 sets of E18-DTUs (Z27-ETH) as coordinators, routers, and terminals
。
Coordinator device network parameter configuration

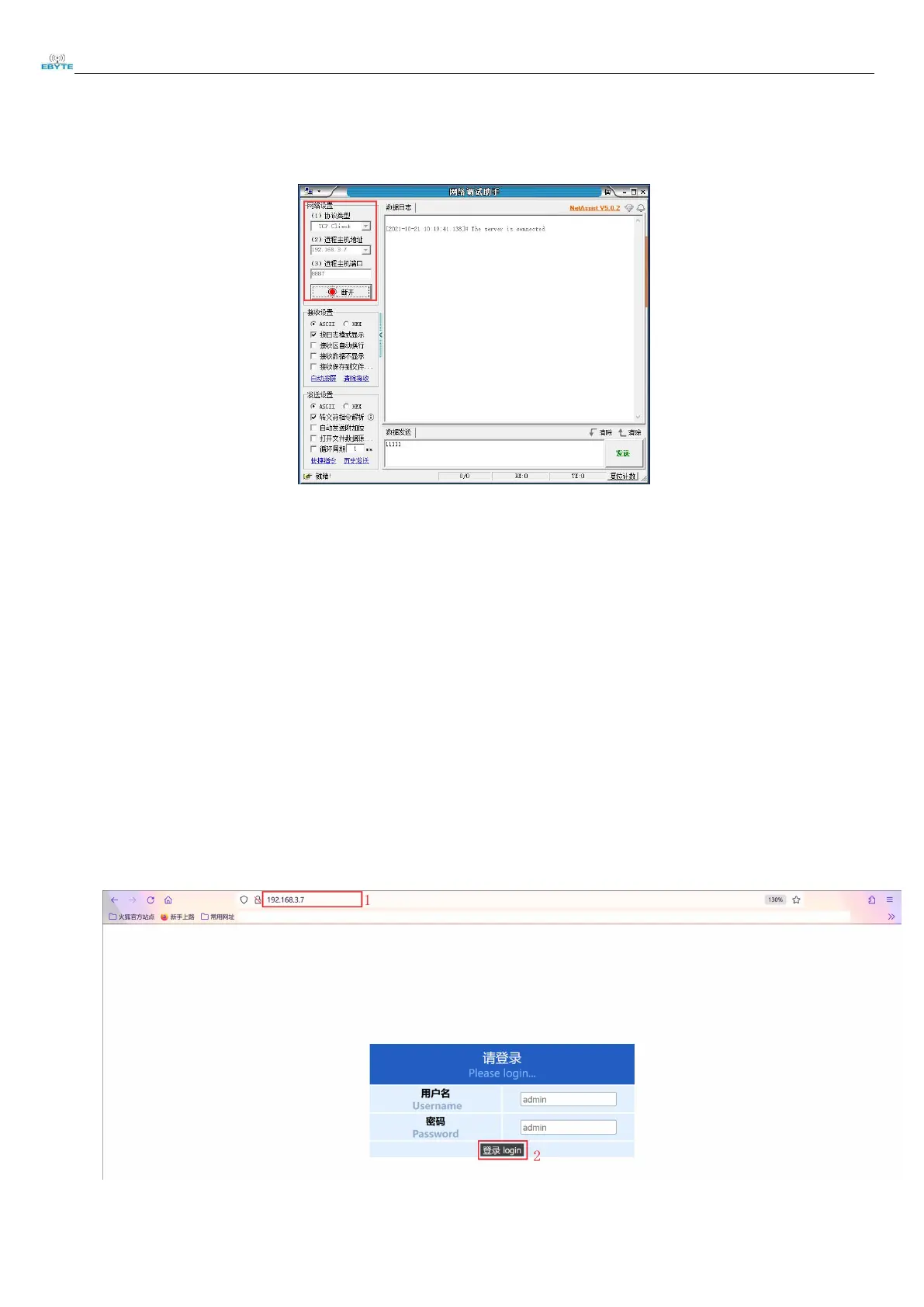

（1）Configure the coordinator device network, connect our device to the computer, open a browser, type 192.168.3.7 in the URL input
box, click Enter, come to the login page, enter the username: admin, password: admin, click login。
（2）Enter the configuration page, do not modify, and keep the coordinates radio network parameters as default。
