ECS H55H-I User Manual

19
Installing the Motherboard
Installing a SATA Hard Drive
This section describes how to install SATA hard drives.

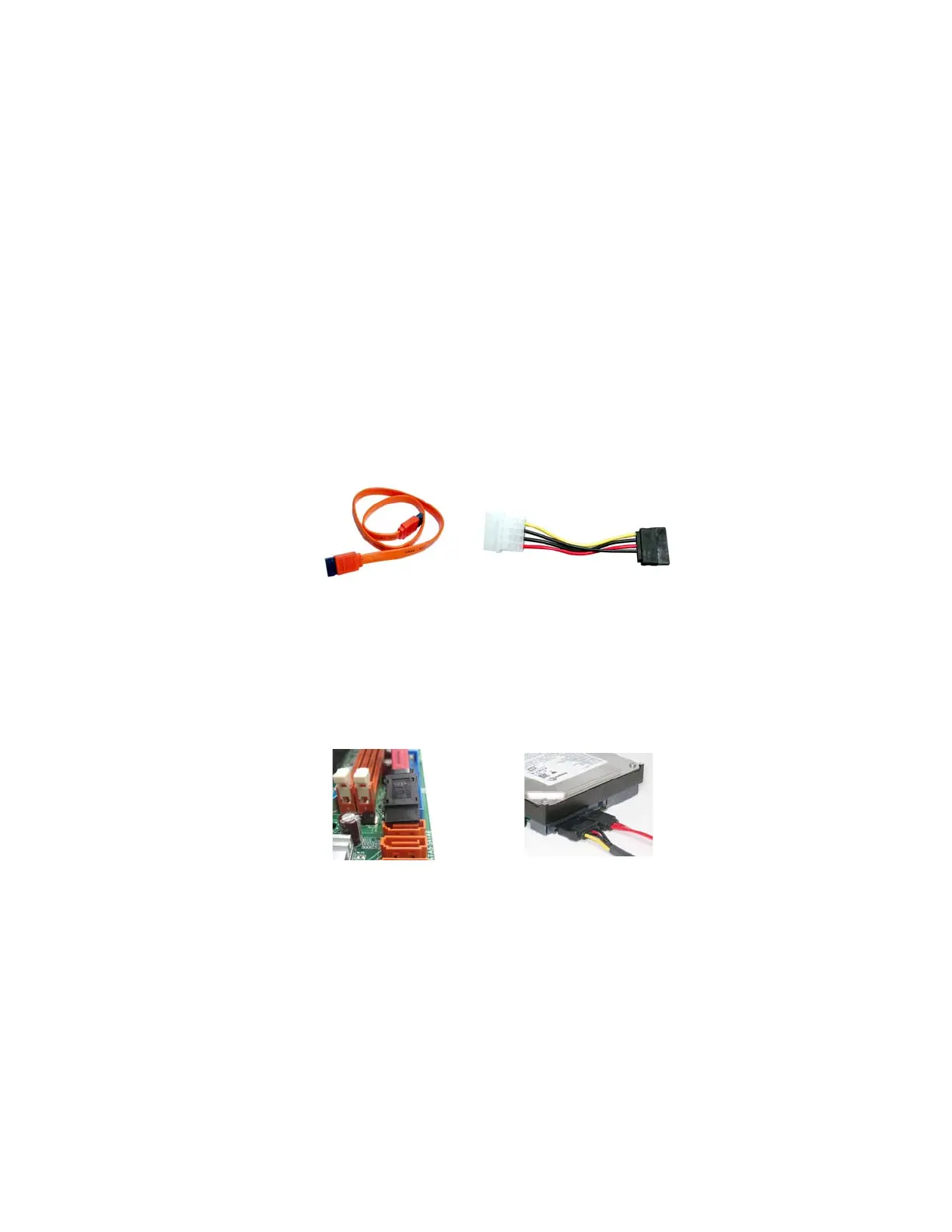

Refer to the illustration below for proper installation:
1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the
other end to the power supply.
SATA cable (optional)
SATA power cable (optional)
About SATA Connectors
Your motherboard features four SATA connectors supporting a total of four drives.
SATA refers to Serial ATA (Advanced Technology Attachment) is the standard inter-
face for the IDE hard drives which are currently used in most PCs. These connectors
are well designed and will only fit in one orientation. Locate the SATA connectors on
the motherboard and follow the illustration below to install the SATA hard drives.
Installing Serial ATA Hard Drives
To install the Serial ATA (SATA) hard drives, use the SATA cable that supports the
Serial ATA protocol. This SATA cable comes with an SATA power cable. You can
connect either end of the SATA cable to the SATA hard drive or the connector on the
motherboard.

ECS H55H-I Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	-
Compatible processor series	Intel Core i3, Intel Core i5
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	6
Audio chip	Realtek ALC892
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	mini ITX
On-board graphics card	No
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111D(L)
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Width	170 mm
