ECS H55H-I User Manual

20
Installing the Motherboard

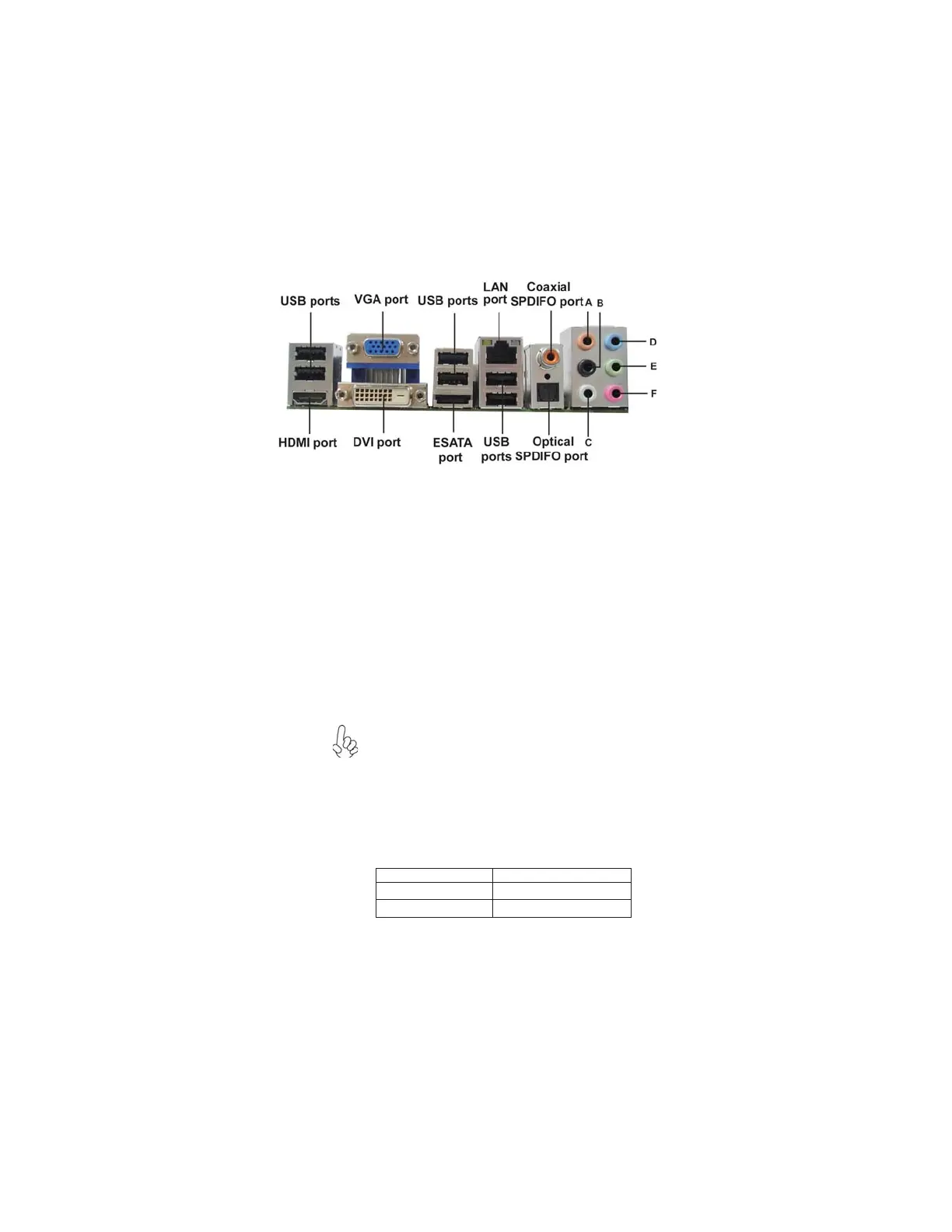

Connecting I/O Devices
The backplane of the motherboard has the following I/O ports:
DVI Port Use the DVI port to connect the monitor.
LAN Ports Connect RJ-45 jacks to LAN ports to connect your
computer to the Network.
USB Ports Use the USB ports to connect USB devices.
VGA Port Connect your monitor to the VGA port.
This jack connects to external optical/coaxial digital audio
output devices.
Coaxial/Optical
SPDIF Output
This motherboard may adopt 8-channel audio ports that
correspond to the A,B, C, and E port respectively. In addi-
tion, all of the 3 ports, B, C, and E provide users with both
right & left channels individually. Users please refer to the
following note for specific port function definition.
A: Center & Woofer D: Line-in
B: Back Surround E: Front Out
C: Side Surround F: Mic_in Rear
The above port definition can be changed to audio input or
audio output by changing the driver utility setting.
Audio Ports
ESATA Port Use this port to connect to external SATA boxes.
Before connecting the eSATA cables, make sure to turn off
the power of the external enclosure.
HDMI port Connect the HDMI port to the HDMI devices.

ECS H55H-I Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	-
Compatible processor series	Intel Core i3, Intel Core i5
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	6
Audio chip	Realtek ALC892
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	mini ITX
On-board graphics card	No
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111D(L)
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Width	170 mm
