ECS LIVA Z User Manual

4
LIVA Z MINI PC USER MANUAL
Chapter 1
WARNING:
Please realize that there is a certain risk involved with
overclocking, including adjusng the seng in the BIOS, or
using the third-party overclocking tools. Overclocking may
affect your system stability, or even case damage to the
components and devices of your system. It should be done
at your own risk and expense. We are not responsible for
possible damage casesd by overclocking.

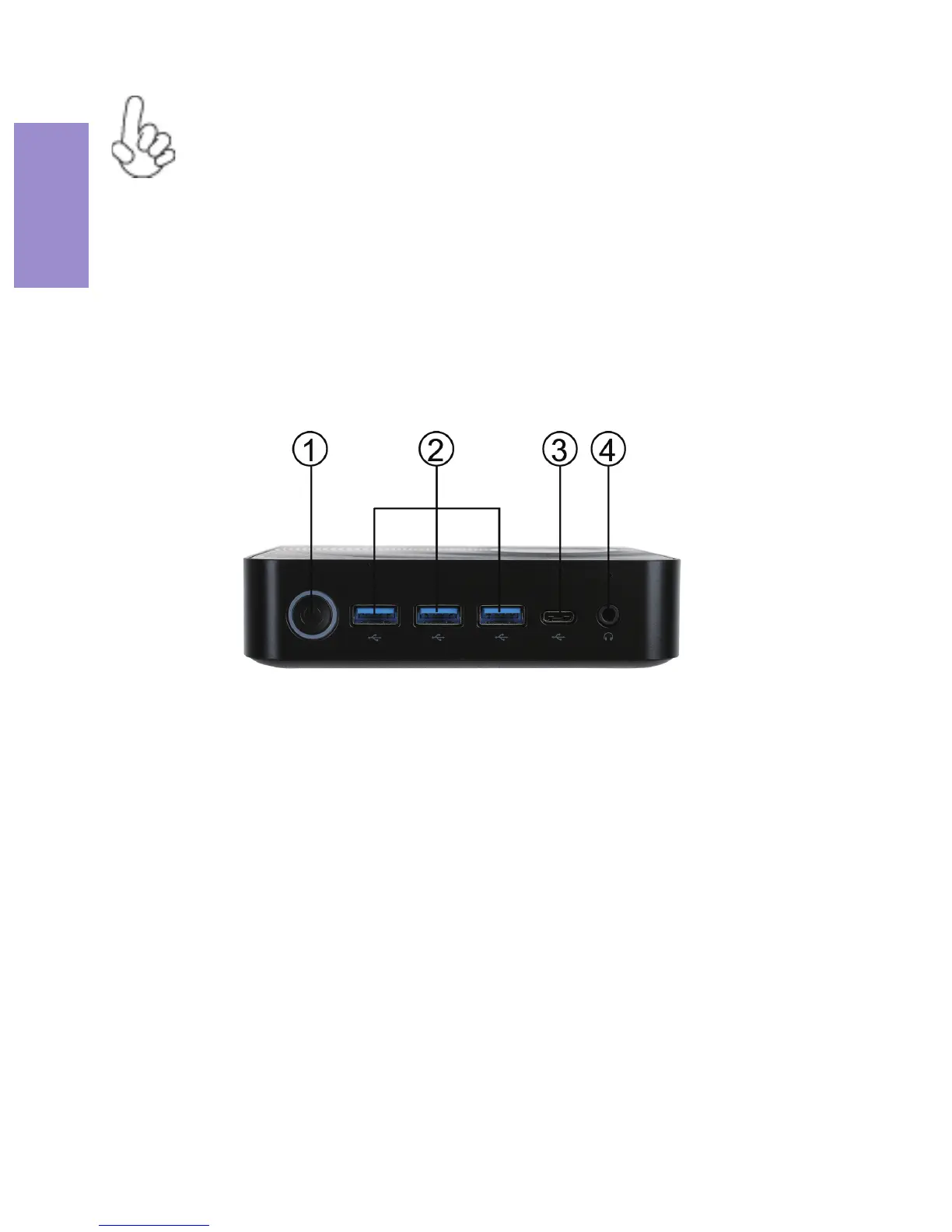

Front and Rear I/O
1. Power Buon
Use this buon to power on/off the
system.
Note:
ID design and specificaon may vary, please refer
to actual goods you purchase.
Connect your Type-A USB 3.0 devices
to these ports.
2. Type-A USB 3.0 Ports
Connect your Type-C USB
3.0 device
to this port.
3. Type-C USB 3.0 Ports

ECS LIVA Z Specifications

General

Memory slots	2x SO-DIMM
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	8 GB
Storage media	eMMC
Optical drive type	No
Total storage capacity	64 GB
Ethernet LAN	Yes
Bluetooth version	4.0
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 500
HDMI version	1.4
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Chassis type	-
Product color	Black
Placement supported	Horizontal
Operating system architecture	64-bit
Product type	Mini PC
Processor cache	2 MB
Processor model	N3350
Processor family	Intel® Celeron® N
Processor frequency	1.1 GHz
Power supply input voltage	100 - 240 V
Intel Identity Protection Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00

Weight and Dimensions

Depth	128 mm
Width	117 mm
Height	33 mm
Weight	- g
