Acclarix AX3 Series Diagnostic Ultrasound System User Manual Troubleshooting and Maintenance
- 126 -

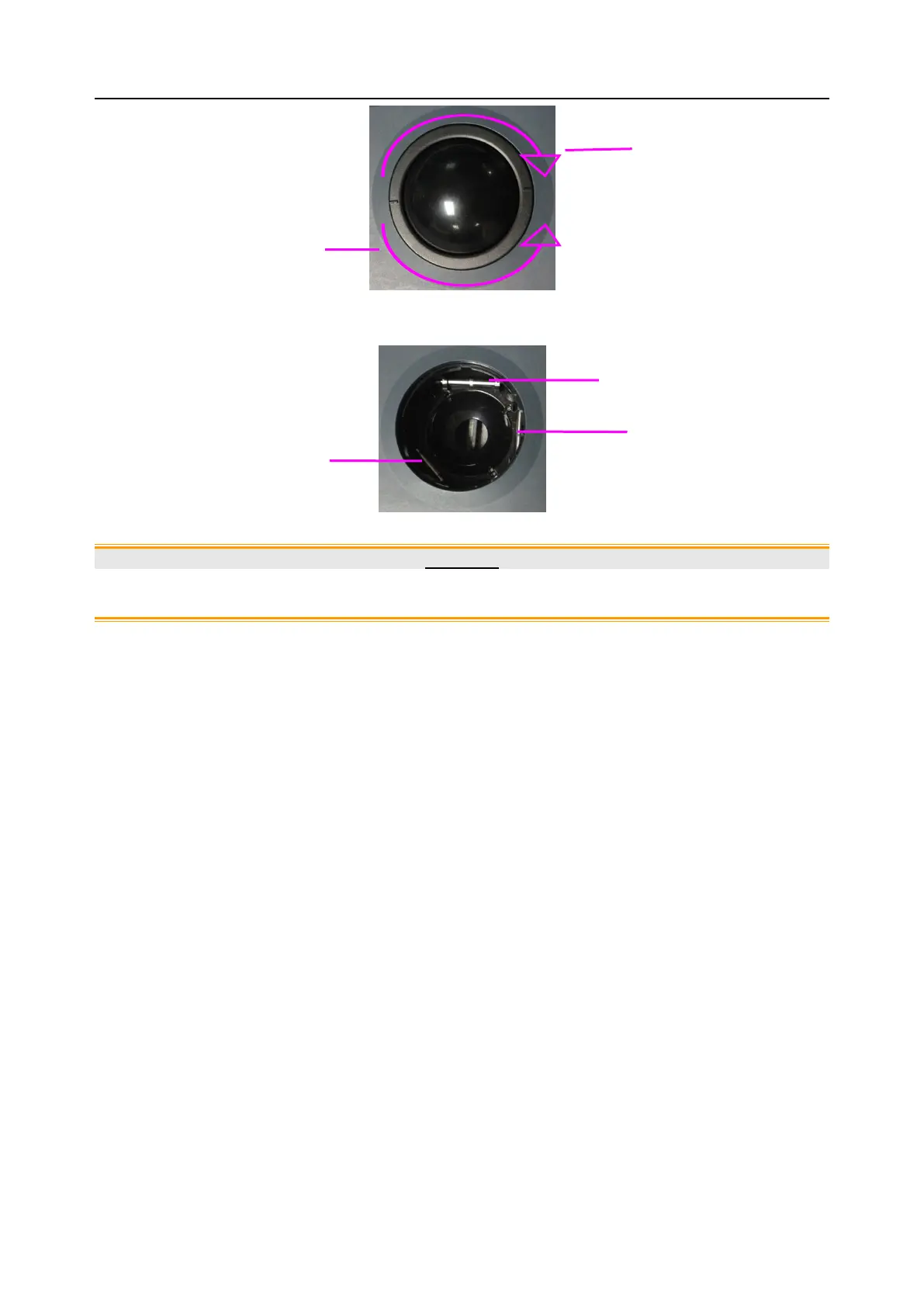

Figure 13-1 Assembling and Disassembling Trackball
Figure 13-2 X, Y and the Auxiliary Idler Wheels
CAUTION
Do not drop or place foreign objects inside the trackball assembly or it may affect the trackball
operation and damage the system.
NOTE:
Be sure to clean the X and Y idler wheels and the auxiliary idler wheel.
13.4 Maintenance
The system should be maintained regularly, at least annually, by a qualified technician who has
adequate training, knowledge and experience. That person should be familiar with the Service Manual,
available from your Edan representative.
Rotate clockwise to remove
the fixing ring
Rotate counterclockwise
to mount the fixing ring
To Next Page
