7.5 Cine Review
Press <Freeze> key on the console to freeze the image or select a stored cine clip, and the cine bar is
displayed on the bottom of the screen, as shown below.

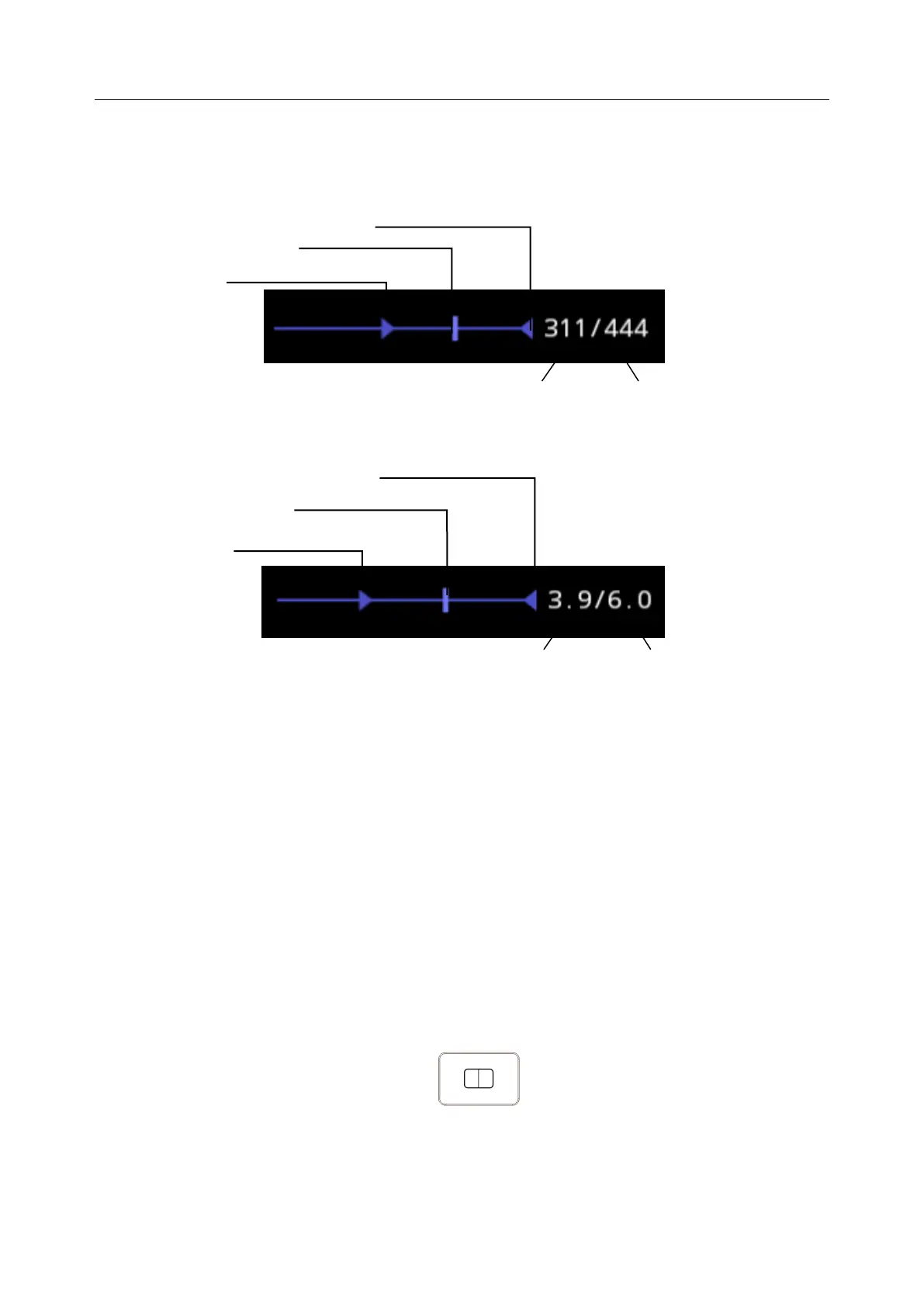

Figure 7-3 Typical Cine Bar in B/Color Mode
Figure 7-4 Typical Cine Bar in PW/CW/M Mode
The cine can be reviewed manually or automatically.
Manual Review:
Move the trackball to review the cine frame by frame. As the trackball moves, the current cine number
is displayed on the right of the cine bar.
Auto Review:
1. Set the start frame: in manual review status move the trackball to review frame by frame until the
frame that you want to set as the start point, press Set Start button on the touch screen to select
a frame as the start frame.
2. Set the end frame: in manual review status, move the trackball to review frame by frame until the
frame that you want to set as the end point, press Set End button on the touch screen to select a
frame as the end frame.
3. Adjust the review speed by the Speed paddle key.
4. Press Play button on the touch screen to review the cine within the set region automatically.
In dual imaging, freeze the image, and press to toggle between the two windows. The
cine bar corresponds to the currently active image, and you can perform manual/auto review for the
currently active image.
