7 Features
7.1 Comment
The Comment function allows you add annotation to an image. The Comment function is invoked by
pressing the <Comment> hard key on the console. Figure 7-1 shows an example touchscreen for the
Comment function. The top portion of the screen shows comments that are pre-defined in pre-sets.
See section 10 for details on how to configure these. The bottom portion of the screen shows controls
available while the Comment function is active. Table 7-1 gives an overview of these controls.

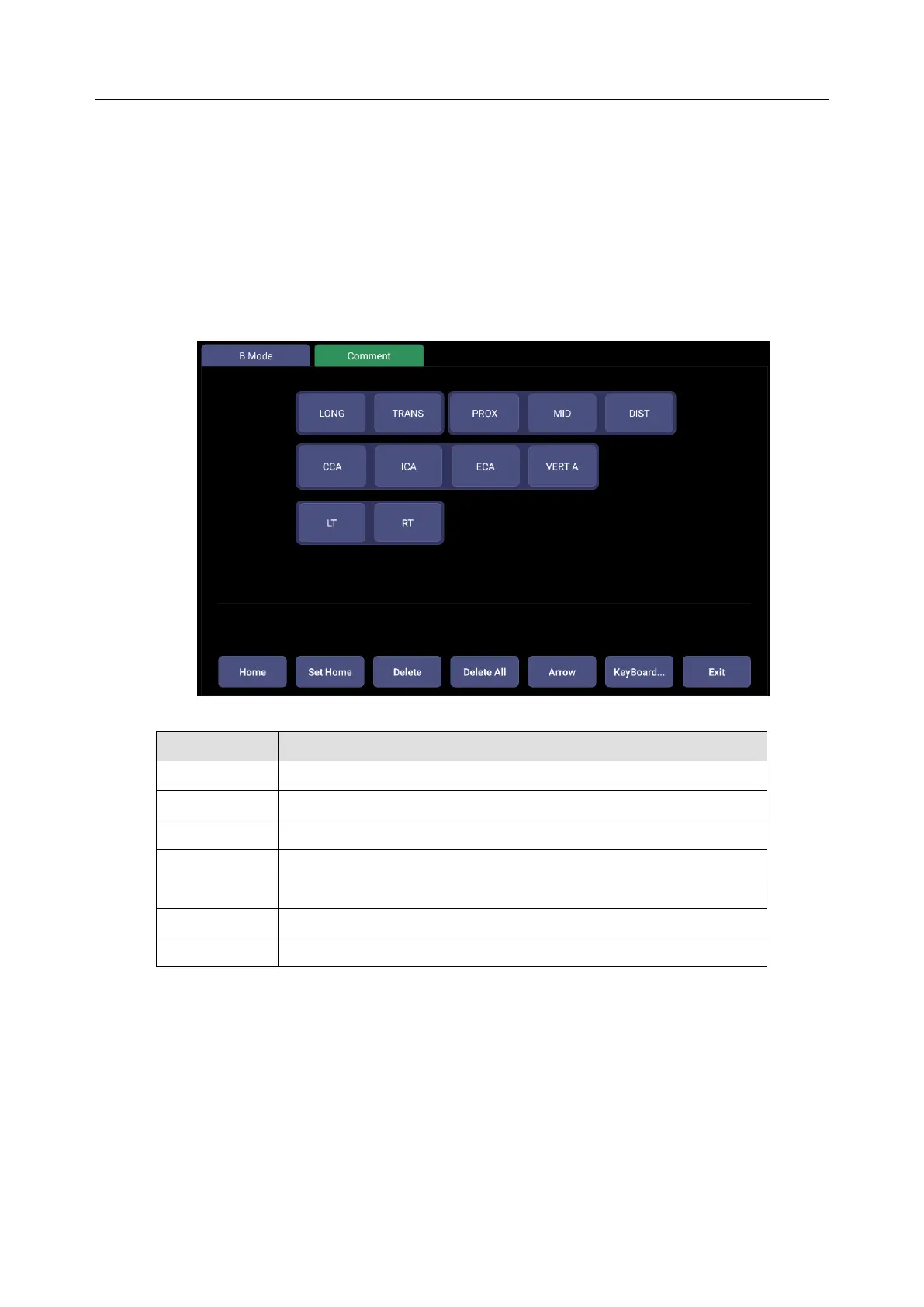

Figure 7-1 Comment Touch Screen
Set the cursor in a pre-defined location.
Set the current cursor location as the new Home location
Delete a whole text or text group or an arrow
Clear all comments on the image area
Create a new arrow for annotating
Show or hide a touch screen keyboard.
Press to exit the comments function.
Table 7-1 Comment Touch Screen Description
