Acclarix AX3 Series Diagnostic Ultrasound System User Manual Exam Operation
- 32 -
4.5 Modality Worklist
Modality worklist provides a list of scheduled patients derived from a DICOM server. It is available only
when a DICOM server is configured and worklist is enabled.
When the modality worklist function is enabled and configured in DICOM connectivity setup screen,
the worklist is shown to the left of the Patient Information Page, as shown below.

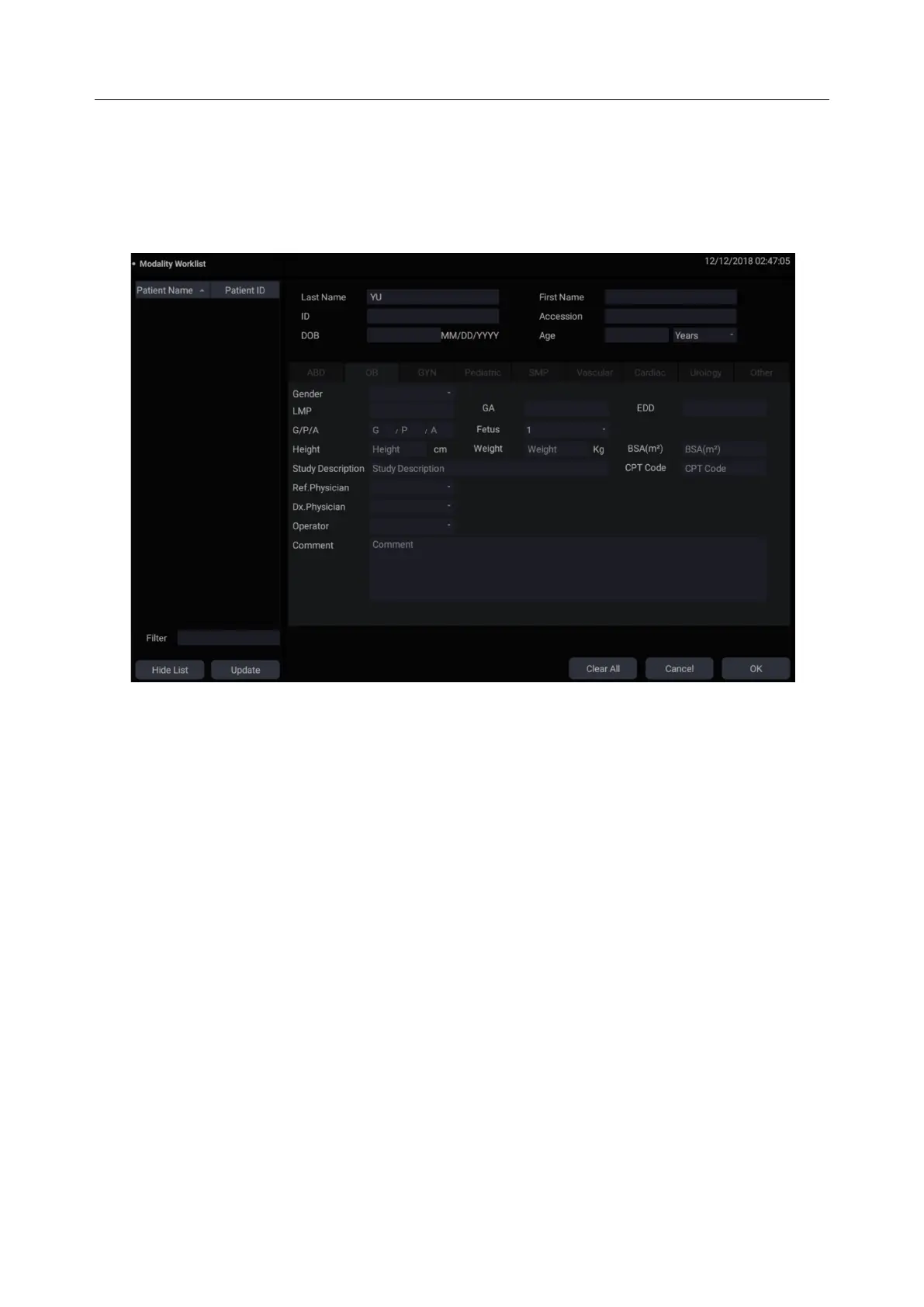

Figure 4-5 Modality Worklist Display
The worklist is displayed on the left side of the Patient Information Page in two columns labeled
patient name and patient ID. Clicking on the header of each column will sort the list for the
corresponding column.
The worklist shows all scheduled ultrasound exams within the date-range specified in the DICOM
connectivity setup screen (See 11.2.2). Typing any text in the Filter field will filter the list to exams
that contain the entered text.
Update: Press to query the patient data and update the list manually.
Hide List: Press to hide the list with only a Show List button displayed. Press the Show List button to
display the list and other buttons.
Select one patient from the list and the detailed patient information is entered into the associated fields
on the patient information page, with the option to edit or complete. Then press OK on the touch
screen to start an exam.
