Acclarix AX3 Series Diagnostic Ultrasound System User Manual Getting Started
- 21 -
Battery fully charged, symbol in green.
Battery more than 80% charged.
Battery low, symbol in red.
3.2.4. Touch Screen
The Touch Screen contains controls that vary depending on the active imaging mode or function.
There are several types of controls used by the touch screen, as illustrated below:

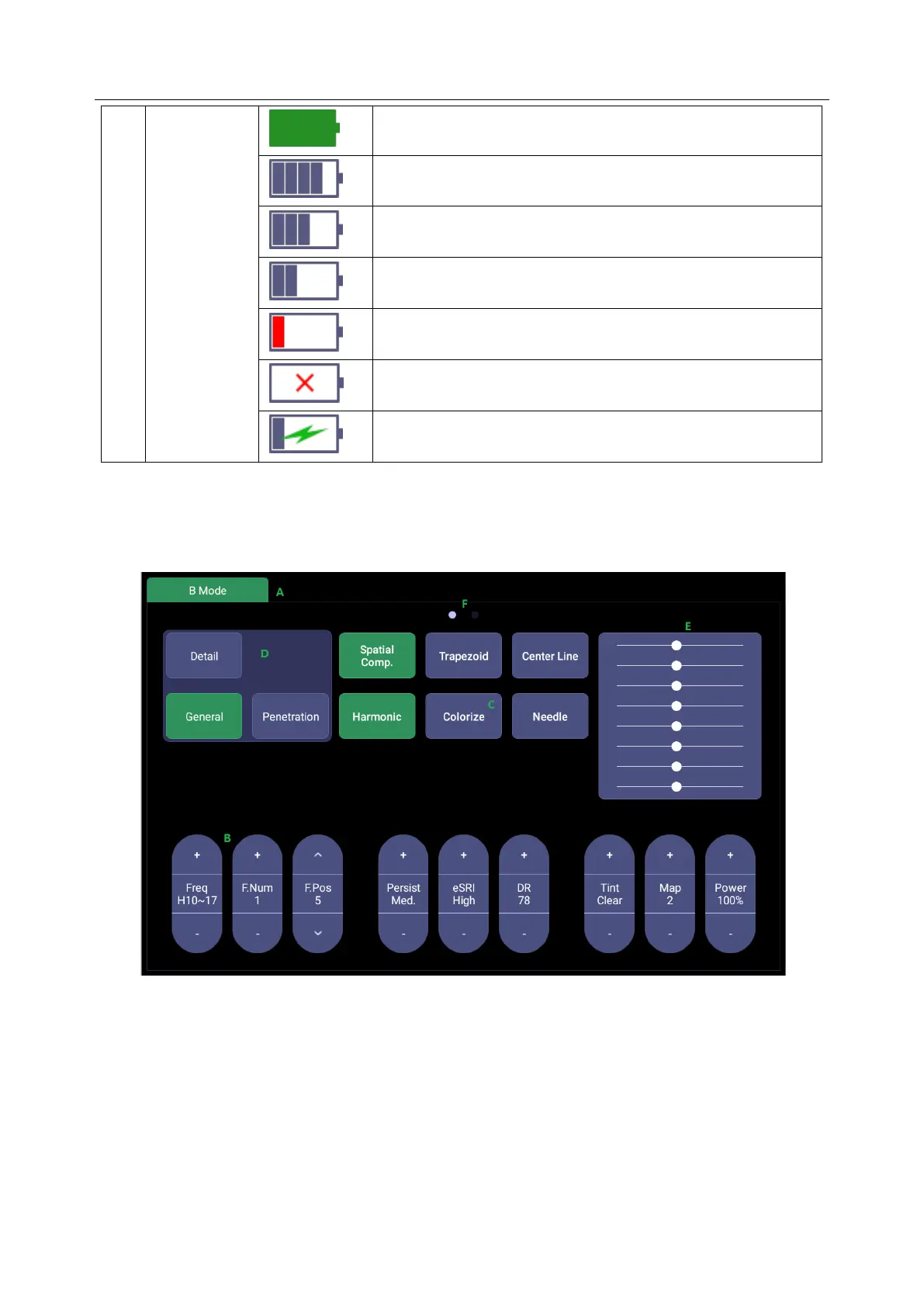

Figure 3-5 Touch screen of the System
A. Tabs: Each imaging mode that is active has a tab at the top of the touch screen. Usually, the
imaging mode that was most recently activated is the top tab and has priority. Pressing on any
other tab will bring it to the top and provide access to the controls available for that imaging
mode.
B. Paddle: Pressing on the top or bottom of a paddle changes the control setting by one value.
Pressing anywhere on the control and swiping across it will continuously change the value.
C. Push button: This can either be an on/off control (like “Colorize”).
D. Radio Buttons: A collection of buttons where only one is active at any time. Activating one will
