2756-VOLT LITHIUM-ION ELECTRIC ZERO TURN MOWER — ZT4200L/ZT4200L-FC

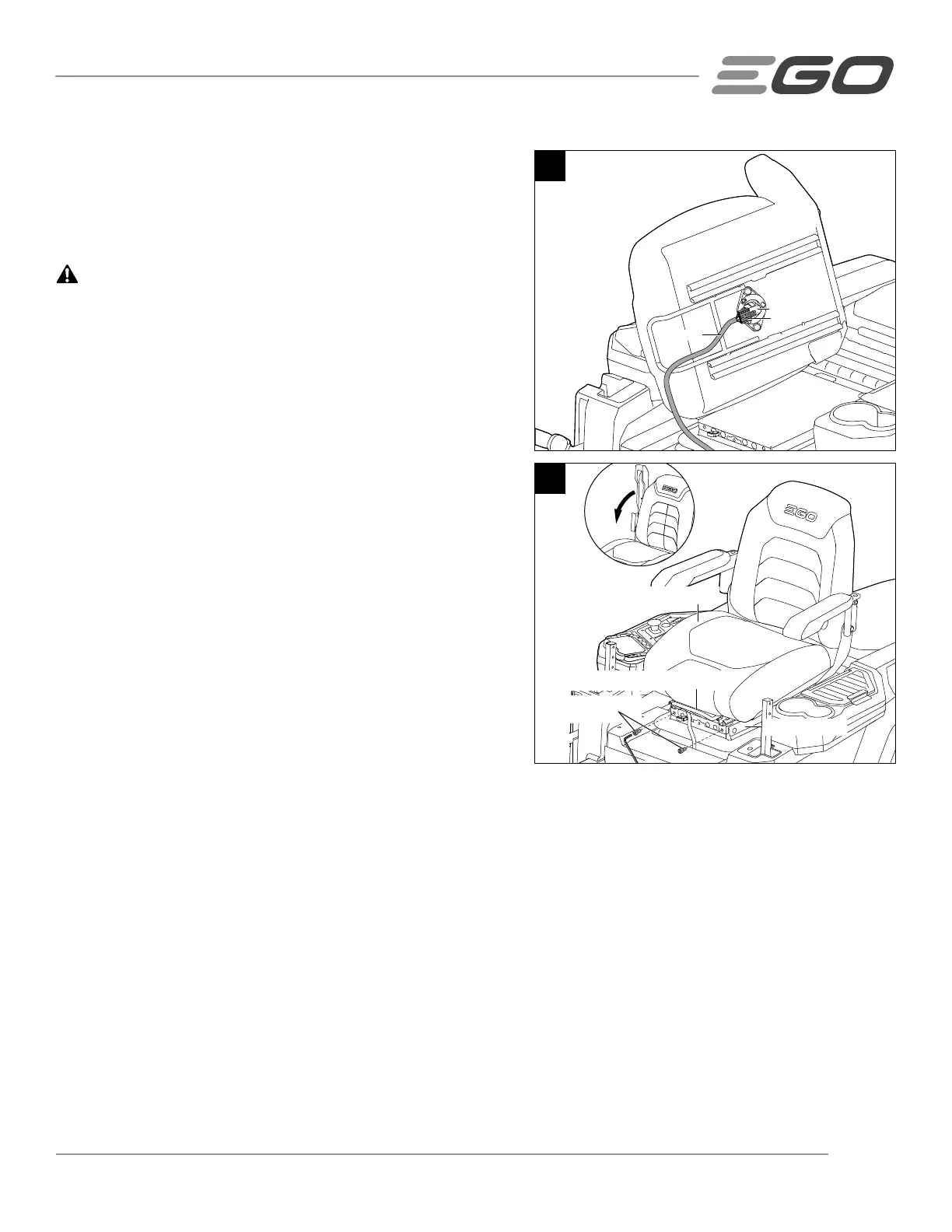

TO INSTALL THE SEAT
The mower incorporates a separate seat switch that will stop the
drive motors and deck motors when the operator is unseated for
any reason while the mower is operating. This is a safety feature
designed to prevent runaway or accidental entanglement.
WARNING: The safety interlock system must not be
disconnected or bypassed. Doing so could cause the mower to
operate unexpectedly, resulting in personal injury.
1. Remove the four socket-head screws from the accessory box
and set them aside.
2. Lay the seat assembly on its side and insert the cable plug into
the socket on the bottom of the seat (Fig. 8). This connects the
safety interlock system.
3. Rotate the two arm rests to the horizontal positions. Place the
seat closely against the front of the suspension base. Align the
two mounting holes in the seat with the holes in suspension
base, and use the the supplied Allen key to lock them together
with the two supplied socket-head screws (Fig. 9).
8
Socket
Plug
Cable
9
Suspension Base
Socket Head
Screws
Seat Assembly
Seat Forward-Back Adjustment Lever
To Next Page
