4756-VOLT LITHIUM-ION ELECTRIC ZERO TURN MOWER — ZT4200L/ZT4200L-FC
To Make Front-to-Rear Adjustment
NOTICE: Always level the deck side-to-side before making a front-
to-rear adjustment.
1. Postion both the blades so that the ends point toward the front
and back of the mower (Fig. 31).
2. Measure the distance from the tip of one blade to the ground
(see Fig. 29). For best results, the front tip of the blade should
be from 5/64 in to 25/64 in (2mm to 10mm) lower than the
rear tip.
3. If front-to-rear adjustment is needed, use a 23/32 in (18mm)
open-end wrench (not supplied) to adjust the four nuts on the
suspension linkage (two for each side).
NOTICE: Make sure to turn the corresponding nuts on both sides
equally to avoid altering the side-to-side mea surement.
4. Measure again to verify that the front tip is now 5/64 in
to 25/64 in (2mm to 10mm) lower than the rear tip. If not,
continue to adjust and measure until they are.
5. Retighten the nuts. The recommended torque for the nuts is
38-42 ft–lb (52-57N.m).

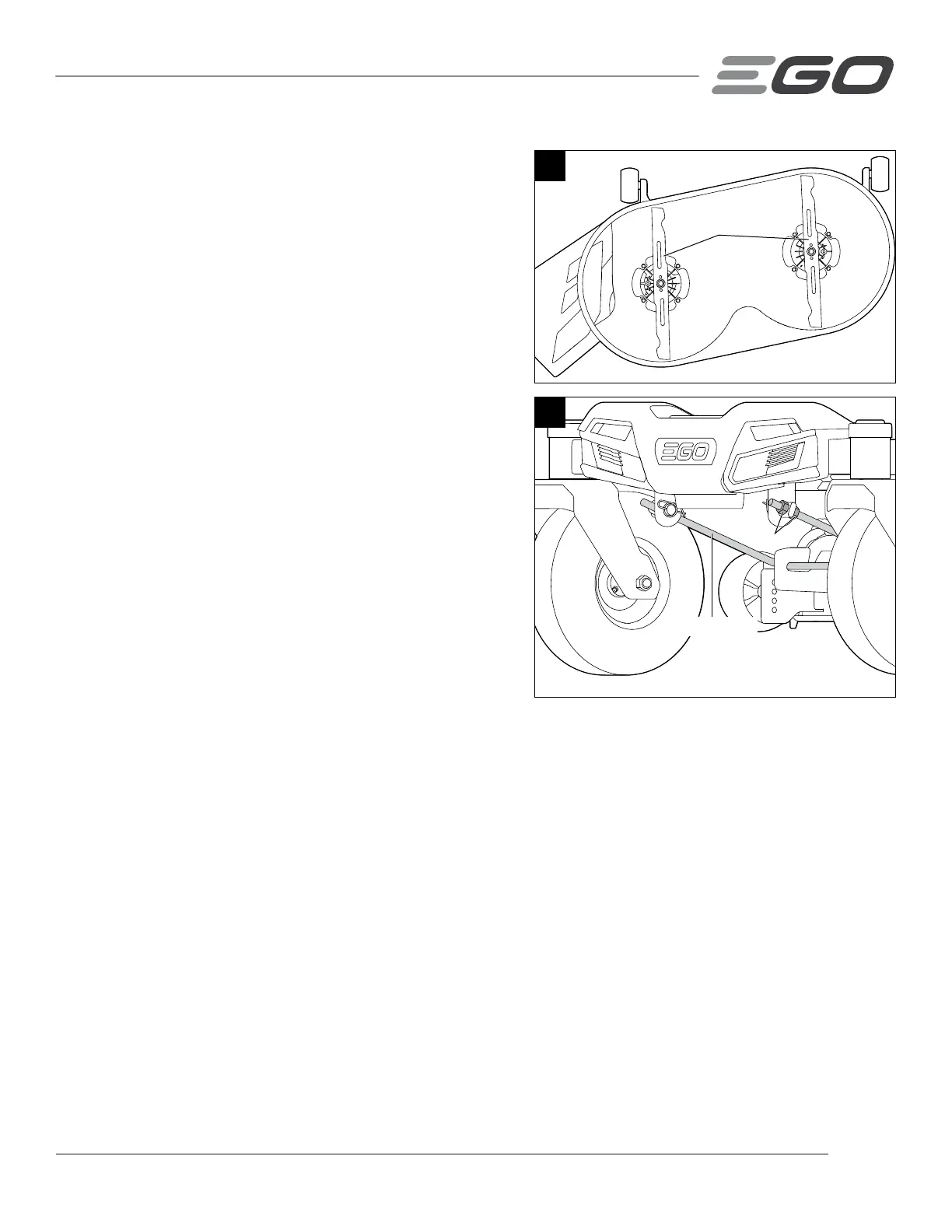

31
Blades front to rear
32
Nut
Suspension Linkage
