56-VOL
T LITHIUM-ION ELECTRIC ZERO
TURN MOWER — ZT4200L/ZT4200L-FC
48

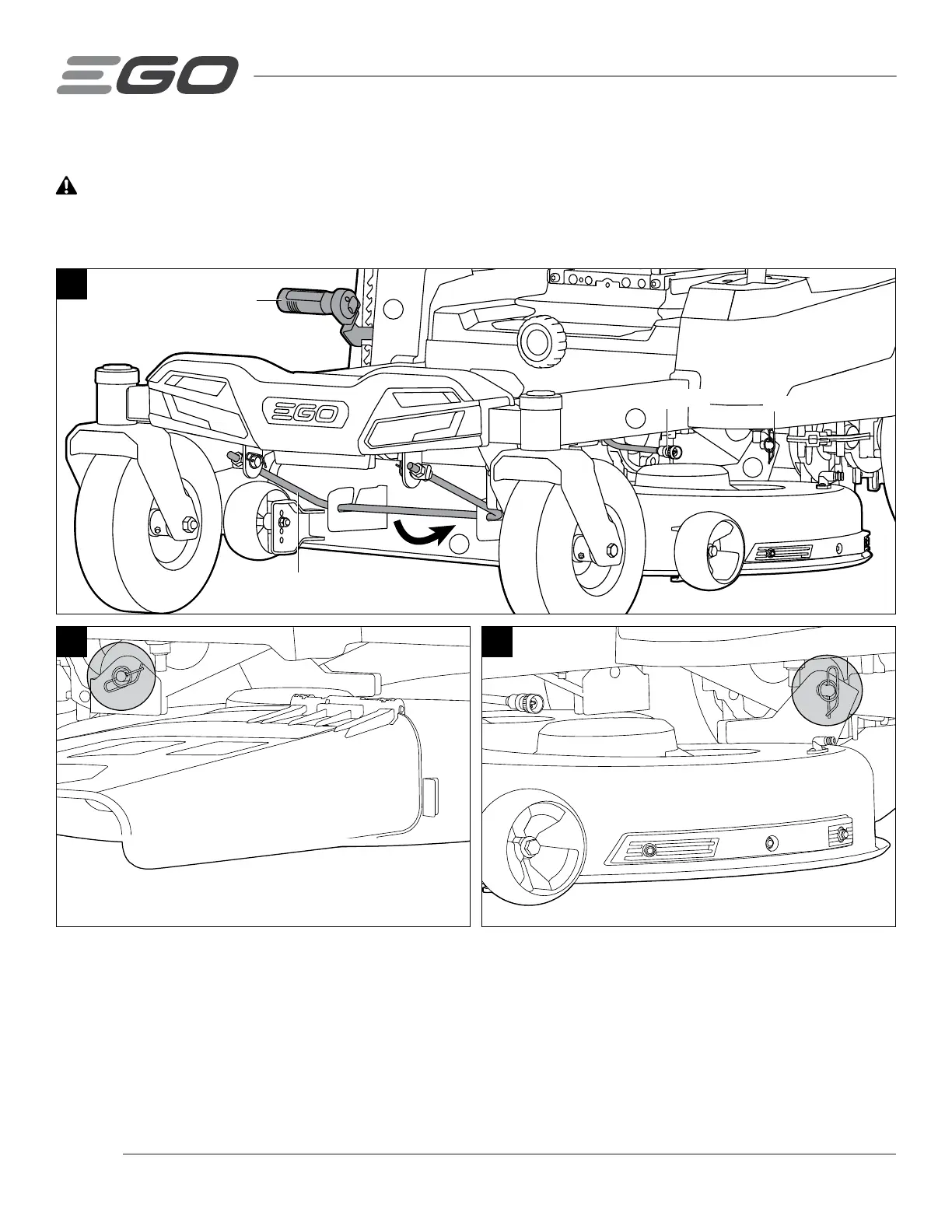

REMOVING THE MOWER DECK (Fig.
33a & b & c)
W
ARNING:
Make sure tha
t the mower is properly secured and the parking brake is set before proceeding.
Raise the
deck to the HEIGHTEST cutting height to allow easier access to the blades.
33b
Right side
33c
Left side
1
4
2
3
33a
Motor Cable
Cotter Pin
Deck-Height-Adjustment Lever
Suspension Linkage
47
