56-VOLT LITHIUM-ION ELECTRIC ZERO TURN MOWER — ZT4200L/ZT4200L-FC28

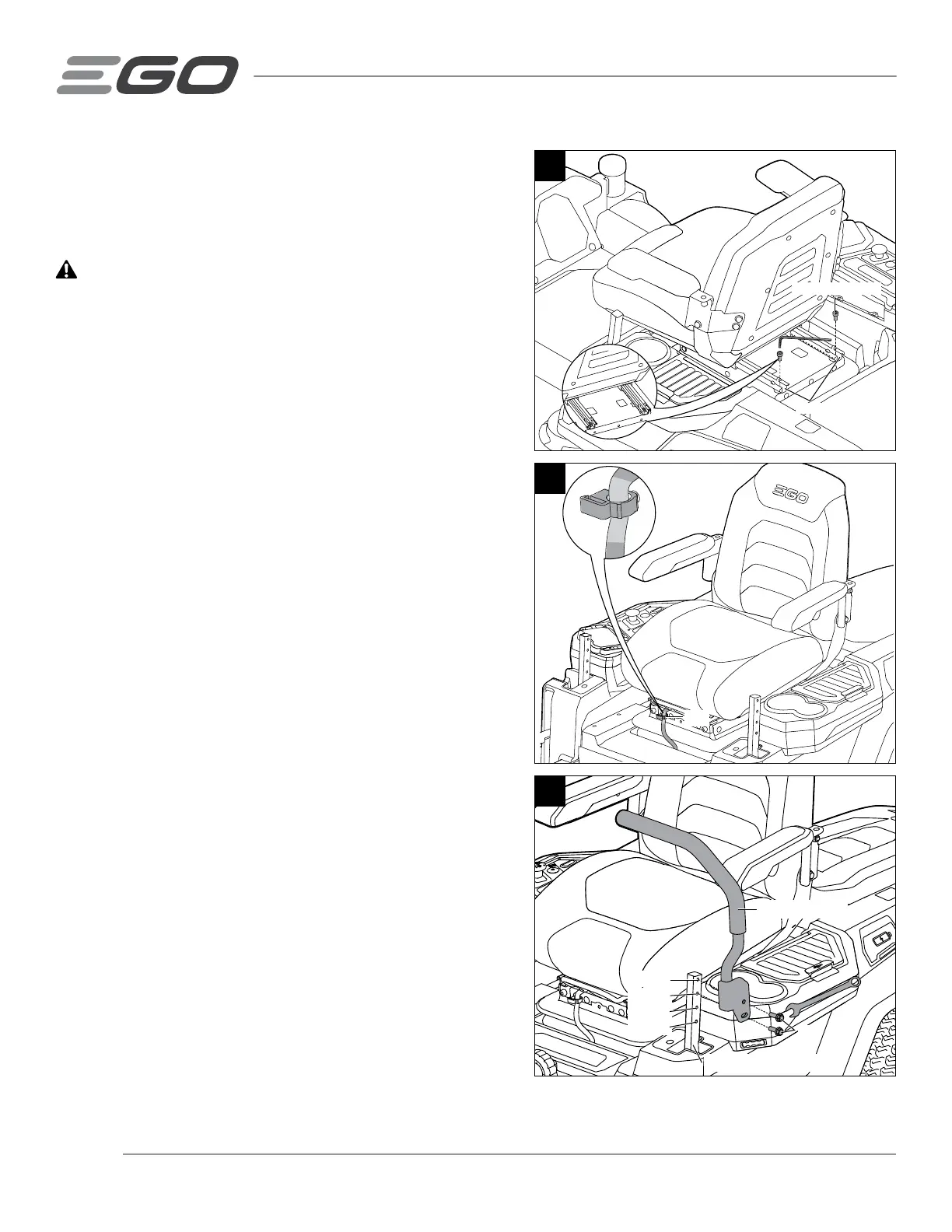

4. Lift the seat forward-back adjustment lever slightly and pull
the seat forward to expose the two backside mounting holes in
the steel rails of the seat assembly. Use the supplied Allen key
to thoroughly tighten the steel rails onto the suspension base
with the remaining two socket head screws (Fig. 10).
WARNING: When nishing tightening the two backside screws,
please check that there is no gap between the front part of the steel
rails and the suspension base.
5. Place the exible cable into the hook as the indicated position
label on the cable shown (Fig. 11).
TO INSTALL THE STEERING LEVERS
1. Remove the four hex bolts from the accessory box and set
them aside.
2. Lift one steering lever to align the holes in the steering lever
with the holes in the corresponding mounting pole. Select the
preferred steering-lever operating height, and then use the
supplied open-end wrench to secure the steering lever with
the two supplied hex bolts as indicated below (Fig. 12).
◾
Hole 1 & 2: upper xing holes for steering lever.
◾
Hole 2 & 3: middle xing holes for steering lever.
◾
Hole 3 & 4: lower xing holes for steering lever.
3. Assemble the other steering lever and tighten with the
remaining two hex bolts in the same way.
NOTICE: The left and right steering levers should be adjusted so
that they align with each other when in the neutral position. NEVER
install the steering levers in an asymmetrical operating height.
P
r
e
m
i
n
u
m
S
u
s
p
e
n
s
i
o
n
S
e
a
t
11
Hook
10
Steel Rails
Socket Head Screw
12
Bolt
Steering Lever Mounting Pole
Left Steering Lever
Hole 1#
Hole 2#
Hole 3#
Hole 4#
To Next Page
