2.3 Removal of the Top Flow Assemblage
2.4 Removal of the Air Duct and Gutter
To remove the air duct, unplug the terminals of the thermostat and the light bulb, unlock the gutter from the top
flow cover and pull the air duct up (see images bellow and on the next page).

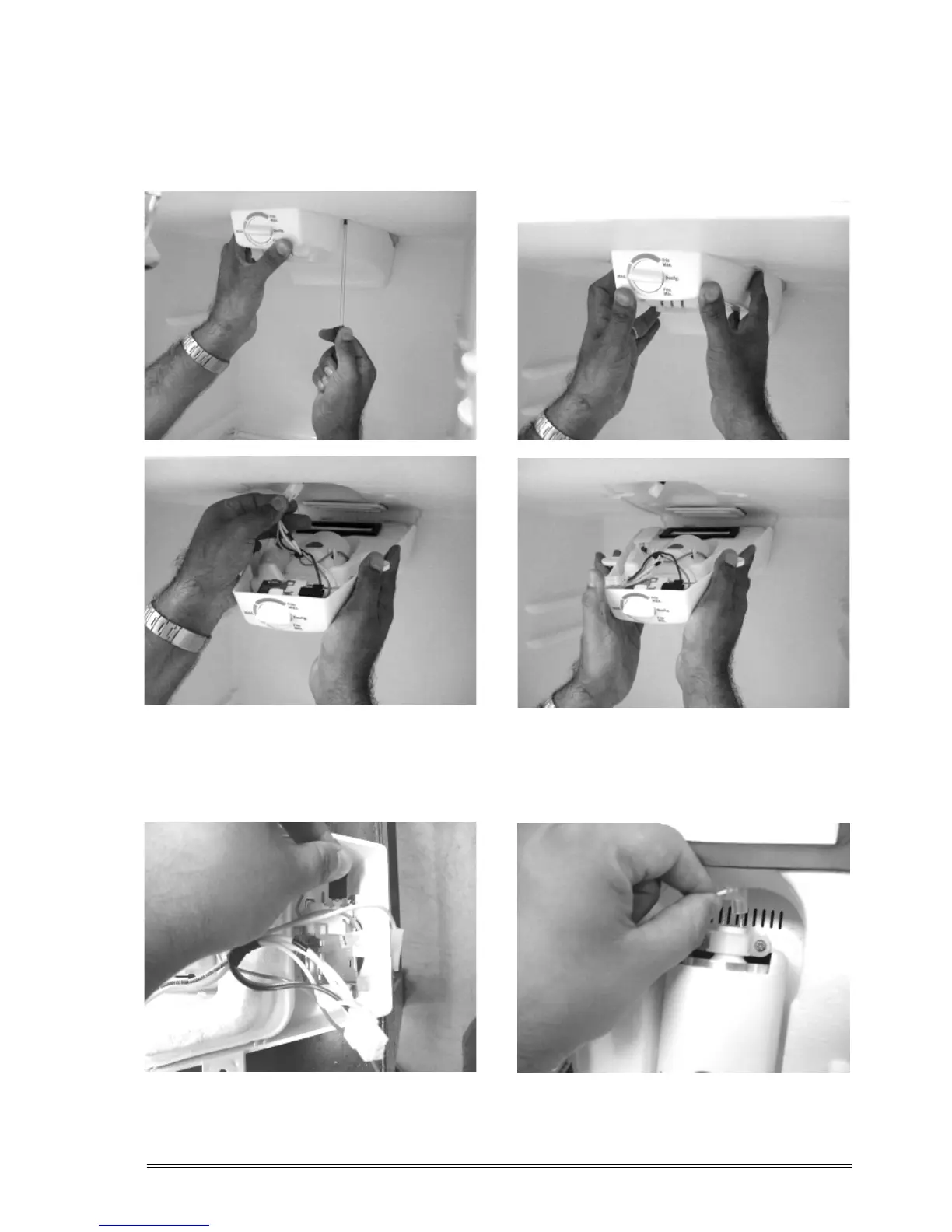

To remove the top flow assemblage located on the top of the refrigerator compartment, you should remove the
two Phillips screws and carefully loose the assemblage from its supports in the back of the internal box. To
finally remove the assemblage, unplug the six ways connector releasing its security lock.
