2.8 Replacement of the Motofan

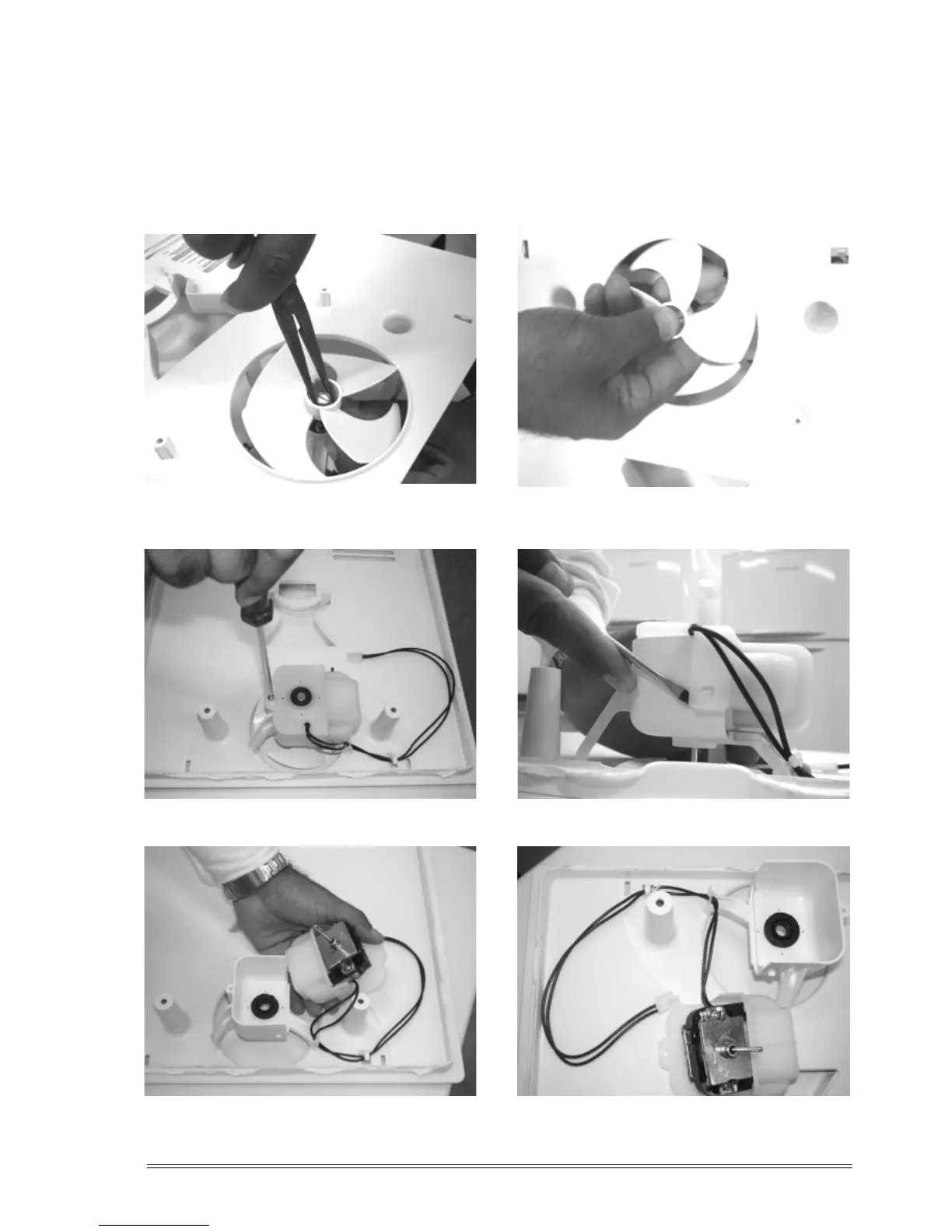

2.8.1 Follow the procedure described in item 2.1, Access to the Freezer Components.
2.8.2 With a cutting pliers, cut the fasteners that fix the motofan net on the evaporator cover.
2.8.3 With a needle-nose pliers, remove the propeller lock so as to release the propeller.
2.8.4 Remove the Phillips screw from the motofan cover and, with the help of a screwdriver, release the locks.
2.8.5 Remove the motofan motor.
To re-assemble the motofan assemblage, please follow the same procedure backwards, using new fasteners to fix
the electric cabling to the evaporator cover. Make sure that the motofan axle seals are correctly positioned.
