Electrolux DF36 Service Manual

12
This document cannot be reproduced or passed to third parties without authorization of Electrolux do Brasil S.A.

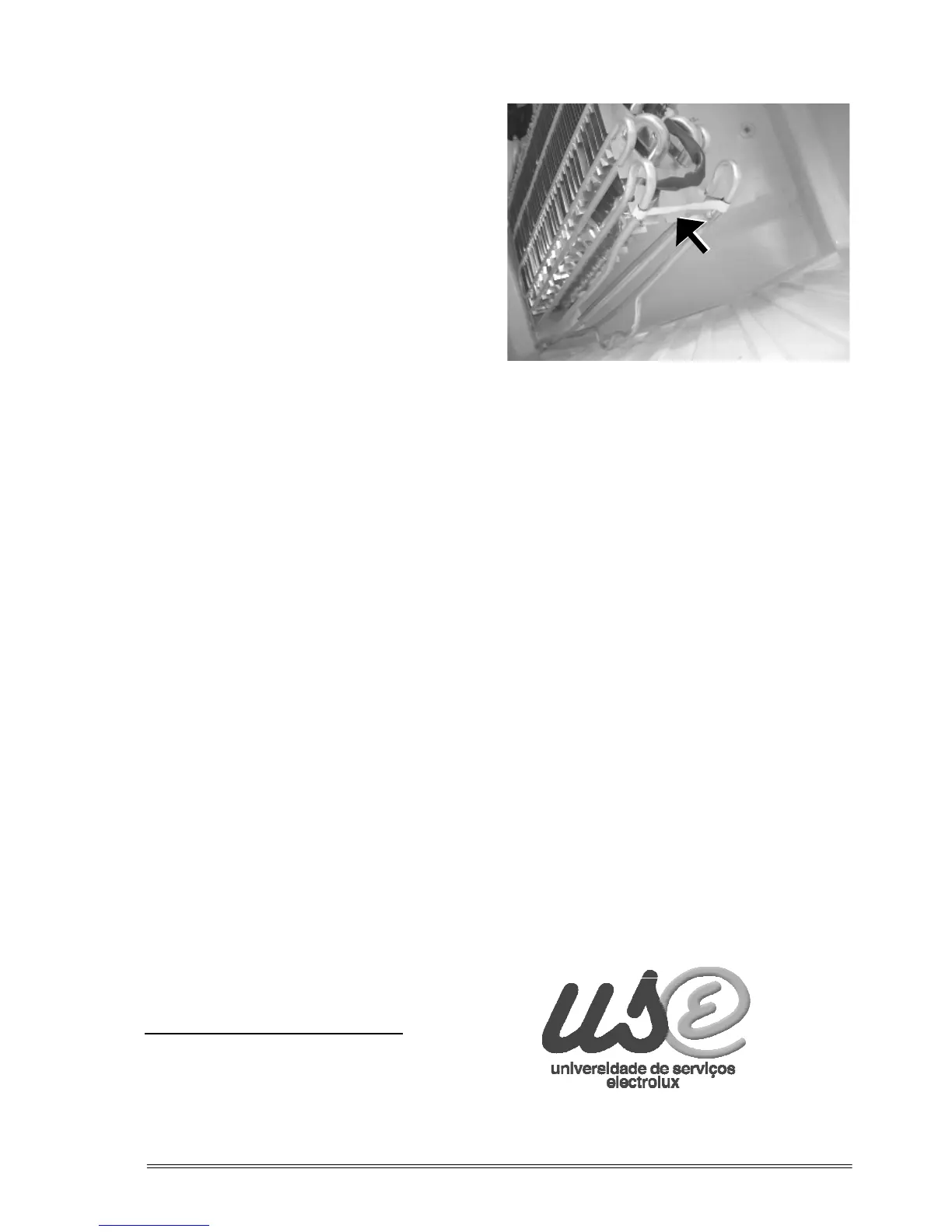

2.9.12 To replace the defrost resistance:
• Release the metal fastener that fixes the resistance
under the evaporator.
• Release the resistance from the evaporator fittings.
To install a new resistance, fit it in the evaporator
fittings and then fix it with the metal fastener.
2.10 Removal of the Timer
2.10.1 With the help of a Phillips screwdriver, loosen the screw that fixes the box which contains the timer.
2.10.2 Carefully remove the box, unfitting it from the internal lateral side of the cabinet.
2.10.3 With a screwdriver, loosen the three fixing locks in the box so as to have access to the timer. To remove the
timer, just remove the three screws fixing it to the box.
ELECTROLUX DO BRASIL S.A.
Rua Ministro Gabriel Passos, 360
Caixa Postal 16201 CEP 81 520900
Curitiba Paraná Brasil
Tel/Fax (041) 371 7000
http://disc.electrolux.com.br
Customer Care Center
Elaboration: Service Engineering
July/2004
Revision 0
