E.10 Electrical connections
E.10.1 Electric appliances
WARNING
Before connecting, make sure the mains voltage and frequency match those
indicated on the appliance dataplate.
N7E / N9E

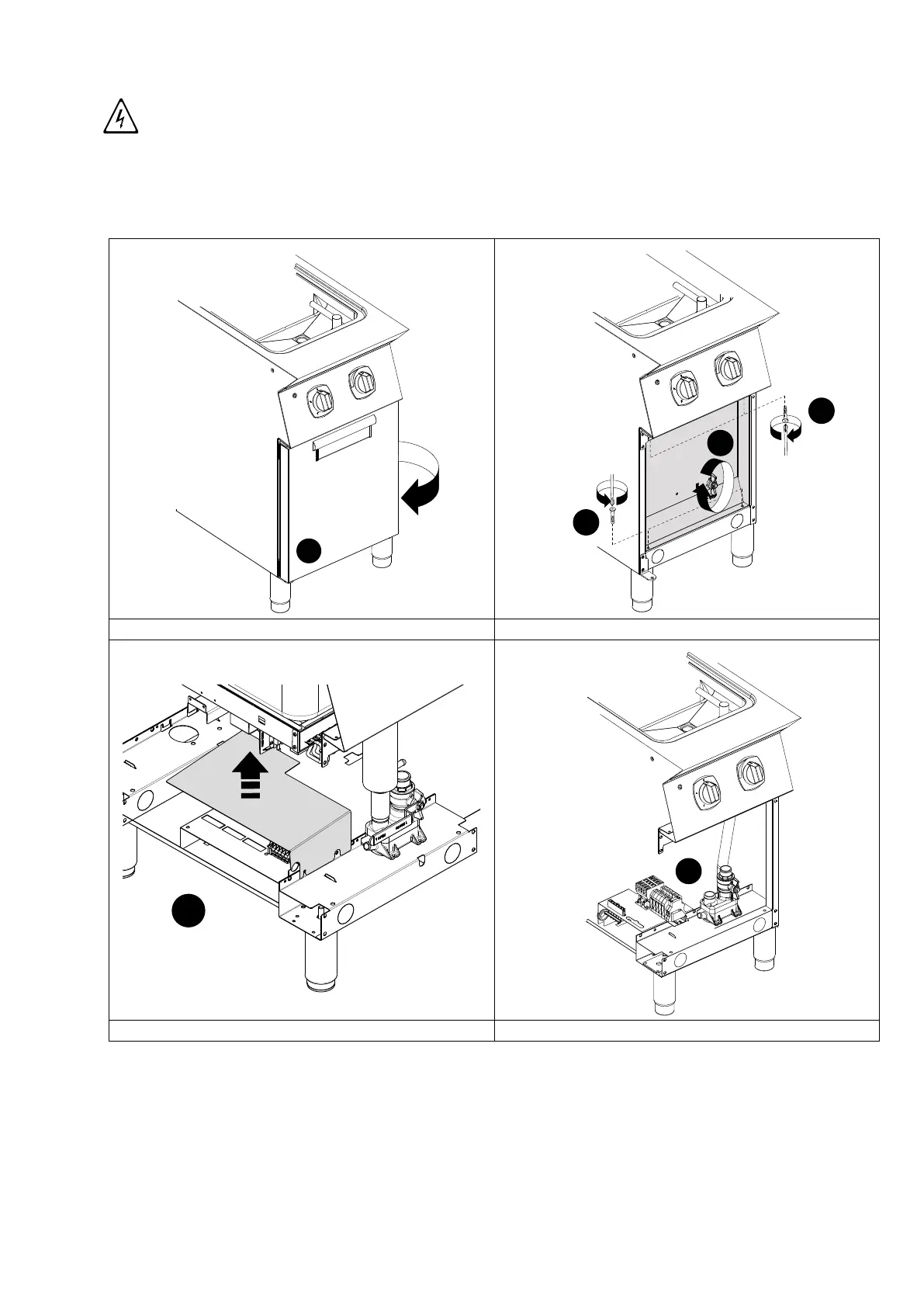

1. Open the module door to access the terminal board (see detail 1 — FIG. 1).
FIG. 1 FIG. 2
FIG. 3 FIG. 4
2. Unscrew the knob of the drain valve (see detail 2 —FIG. 2).
3. Undo the four fixing screws to remove the front panel (see detail 3 —FIG. 2).
4. Loose the screws of the terminal block protection panel to shift it upwards (see detail 4 —FIG. 3).
5. Connect the power cable to the terminal block according to the wiring diagram provided with the appliance (see detail 5 —FIG.
4).
The power cable must pass through a protection pipe (when provided for) and secured with the special cable clamp at the pipe
entry.
6. Secure the power cable with the cable clamp.
7. Refit the protection panel into its seat.
1
2
3
3
4
5
