N7E with electronic control
In these models the power cable is already connected to the terminal block by factory setting (see FIG. 5 and FIG. 6).

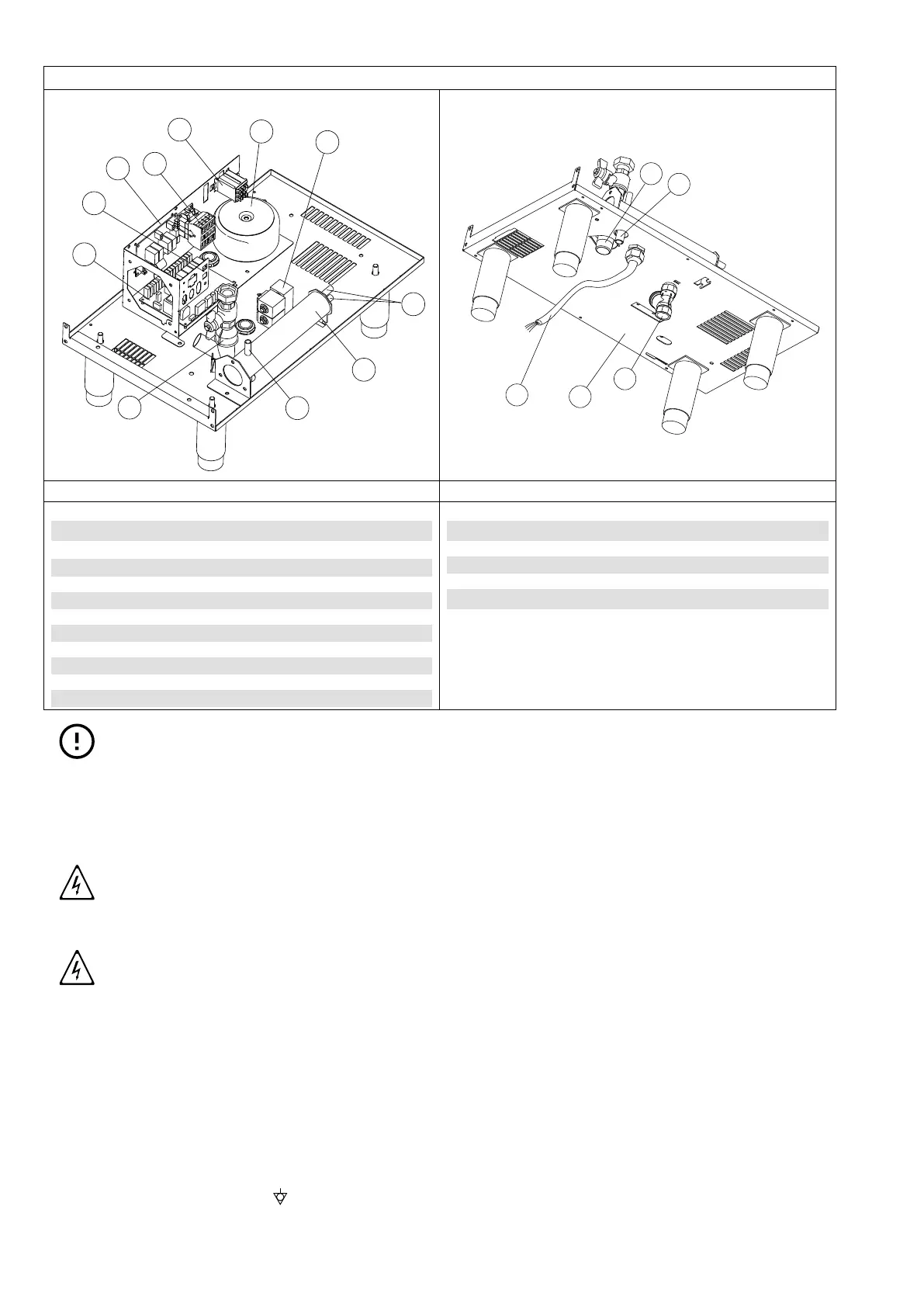

FIG. 5 — view from above FIG. 6 — bottom view
1 Relay boiler
2 Relay board
3 Main Board
4 Power contactor
5 Boiler
6 Boiler inlet
7 Water solenoid valve
8 Auto transformer
9 Boiler outlet
10 Drain valve
11 Fuses
12 Cable clip
13 Drain
14 Boiler drain
15 Tank drain
16 Supply cable cord
IMPORTANT
The manufacturer declines any liability if the safety regulations are not respected.
E.10.2 Power cable
Unless otherwise specified, our appliances are not equipped with a power cable.
The installer must use a flexible cable having characteristics not lower than the H07RN-F rubber insulated type.
Protect the section of cable outside the appliance with a metal or rigid plastic tube.
WARNING
If the power cable is damaged, it must be replaced by the Customer Care
service or in any case by specialised personnel, in order prevent any risk.
WARNING
The manufacturer declines any liability for damage or injury resulting from
breach of the above rules or non-compliance with the electrical safety
regulations in force in the country where the machine is used.
E.10.3 Earth leakage circuit breaker
Install a circuit breaker between the power cable of the appliance and the mains electric line.
The contact opening maximum distance and leakage current must comply with the local safety regulations.
E.10.4 Equipotential node and earth connection
Connect the appliance to an earth; it must be included in an equipotential node by means of the screw located under the appliance
frame at the back right hand side.
The screw is marked with the symbol .
1
2
3
4
8
5
6
7
5
9
10
11
12
13
14
15
16
