Emerson FB1200 Flow Computer Instruction Manual
D301782X012
March 2019
Installation 19
Only use bolts supplied with the flow computer or sold by Emerson Remote Automation Solutions
as spare parts. Refer to the figure for common flow computer assemblies with the bolt length
required for proper flow computer installation.
EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous.
Performing this operation in a hazardous area could result in an explosion.
Note
For all other manifolds, contact your local Emerson Sales office or Emerson Impact Partner.
Bolts are typically carbon steel or stainless steel. Confirm the material by viewing the markings on
the head of the bolt and referencing the figure. If bolt material is not shown in the figure, contact
your local Emerson Remote Automation Solutions representative for more information.

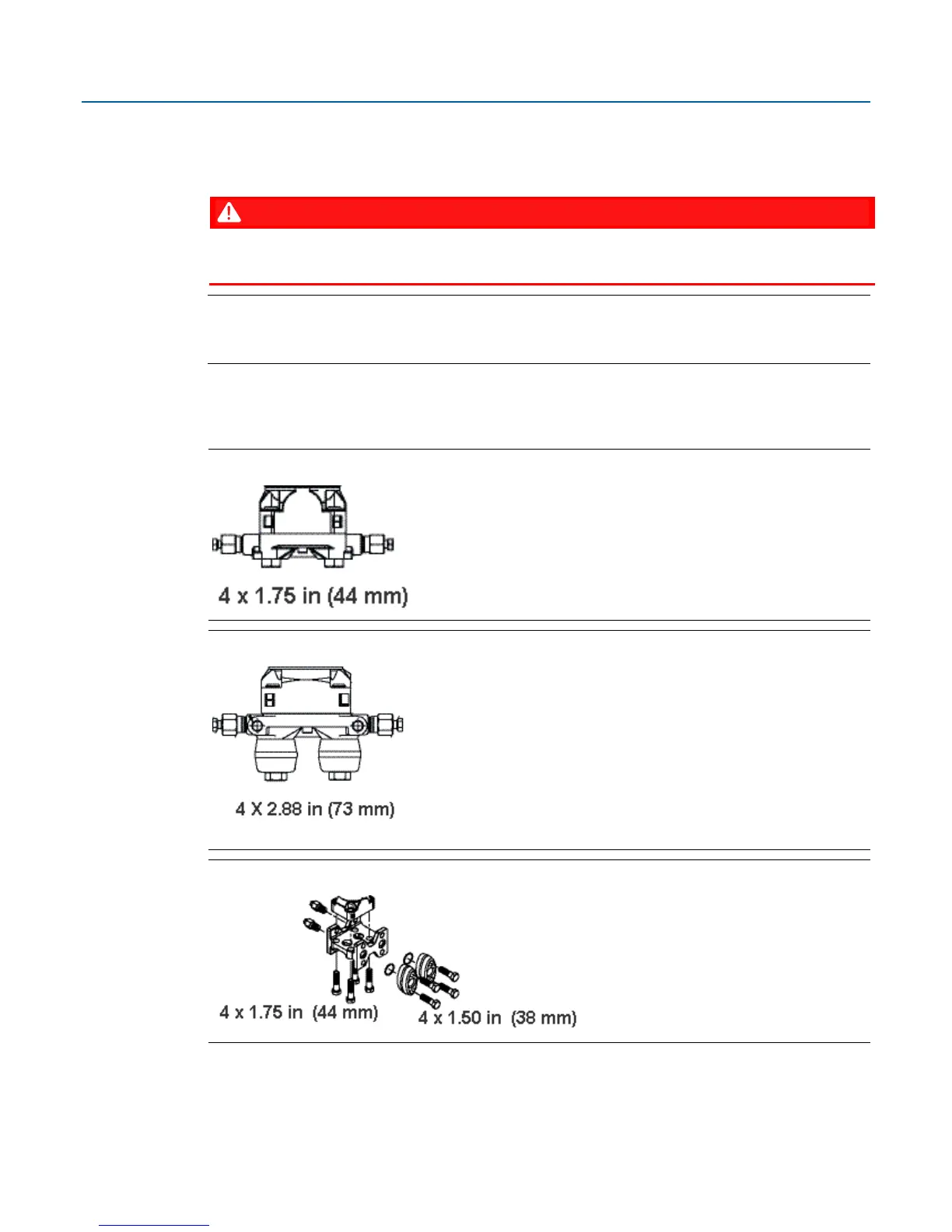

Figure 2-10: Transmitter with Coplanar Flange
Figure 2-11: Transmitter with Coplanar Flange and Optional Flange Adapters
Figure 2-12: Transmitter with Traditional Flange and Optional Flange Adapters
Use the following bolt installation procedure:
